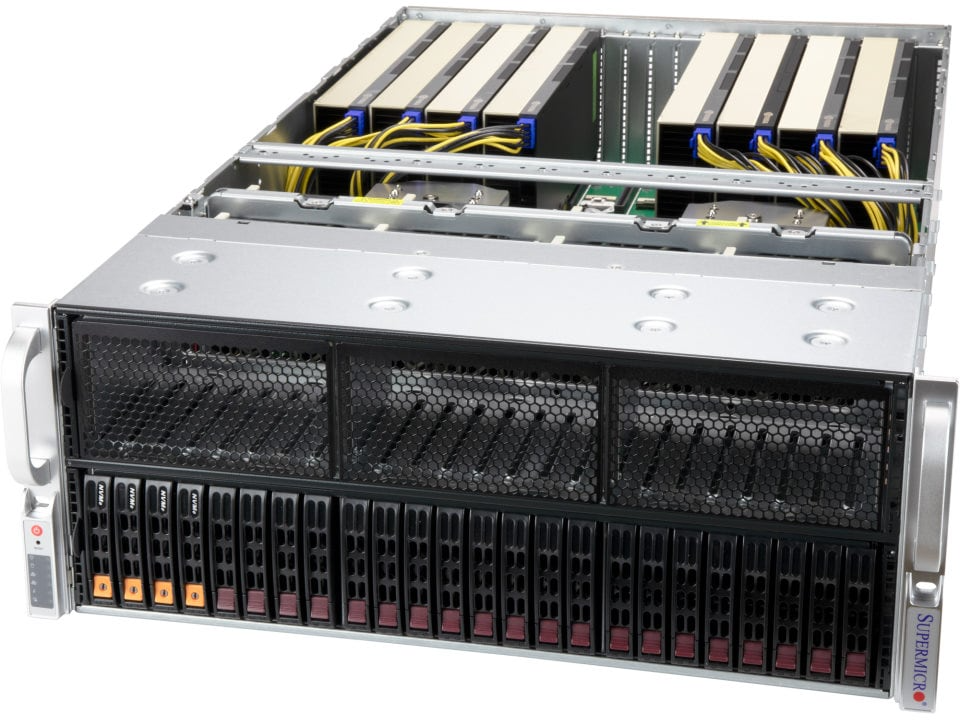

AS -4124GS-TNR+

DP AMD, Dual-Root System with 8 GPUs

Model : AS -4124GS-TNR+

Q'ty :

Product SKUs
AS -4124GS-TNR+
Motherboard
Super H12DSG-O-CPU
Processor
CPU	Dual Socket SP3 AMD EPYC™ 7002/7003 Series Processors
Note	Supports up to 280W TDP CPUs (Air Cooled)
GPU
Max GPU Count	Up to 8 double-width or 8 single-width GPUs
Supported GPU	NVIDIA PCIe: H100, A10, A100, A16, A2, A30, A40, L40, L40S, RTX 4000, RTX 6000, RTX 6000 Ada Generation, RTX A4500, RTX A6000, T4, V100 AMD PCIe: Instinct™ MI150 View GPU Options
CPU-GPU Interconnect	PCIe 4.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect	NVIDIA® NVLink™ with NVSwitch™
System Memory
Memory	Slot Count: 32 DIMM slots Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM View Memory Options
Memory Voltage	1.2V
On-Board Devices
Network Connectivity	2 RJ45 1GbE View AOC Options
Input / Output
LAN	1 RJ45 1 GbE Dedicated BMC LAN port 2 RJ45 1 GbE LAN ports
USB	2 USB 3.0 ports(front)
Video	1 VGA port
System BIOS
BIOS Type	AMI 32MB SPI FLASH ROM
Management
Software	SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown
PC Health Monitoring
CPU	4+1 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Chassis
Form Factor	4U
Model	CSE-418GTS-R4016BP
Dimensions and Weight
Height	7" (178 mm)
Width	17.2" (437 mm)

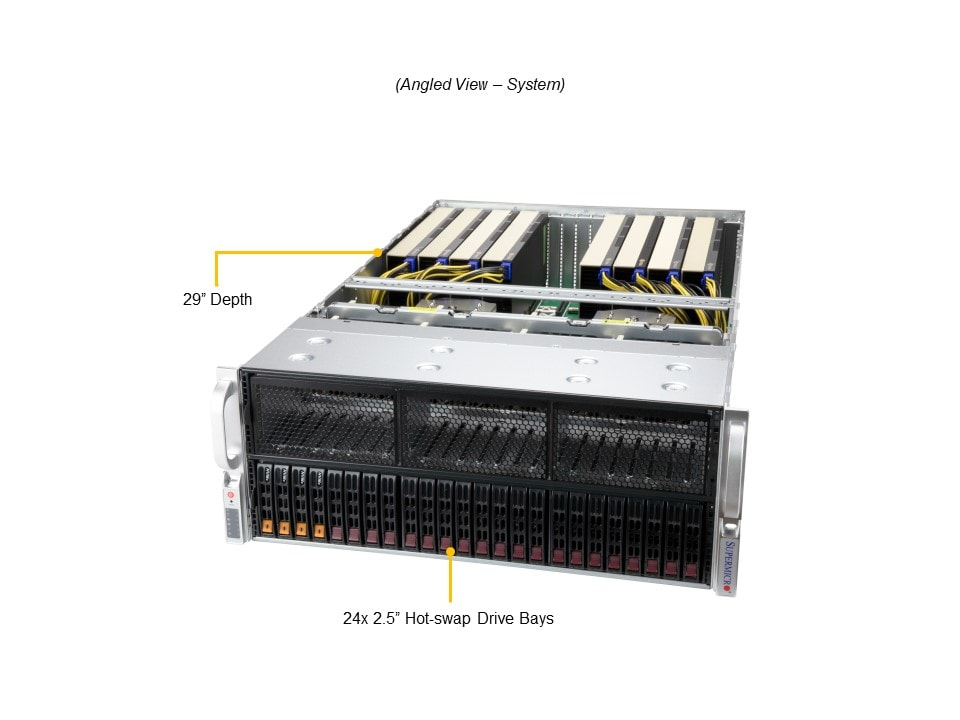

Depth	29" (737 mm)
Package	26.57" (H) x 27" (W) x 41" (D)
Weight	Gross Weight: 100 lbs (45.3 kg) Net Weight: 65.5 lbs (29.7 kg)
Available Color	Black
Expansion Slots

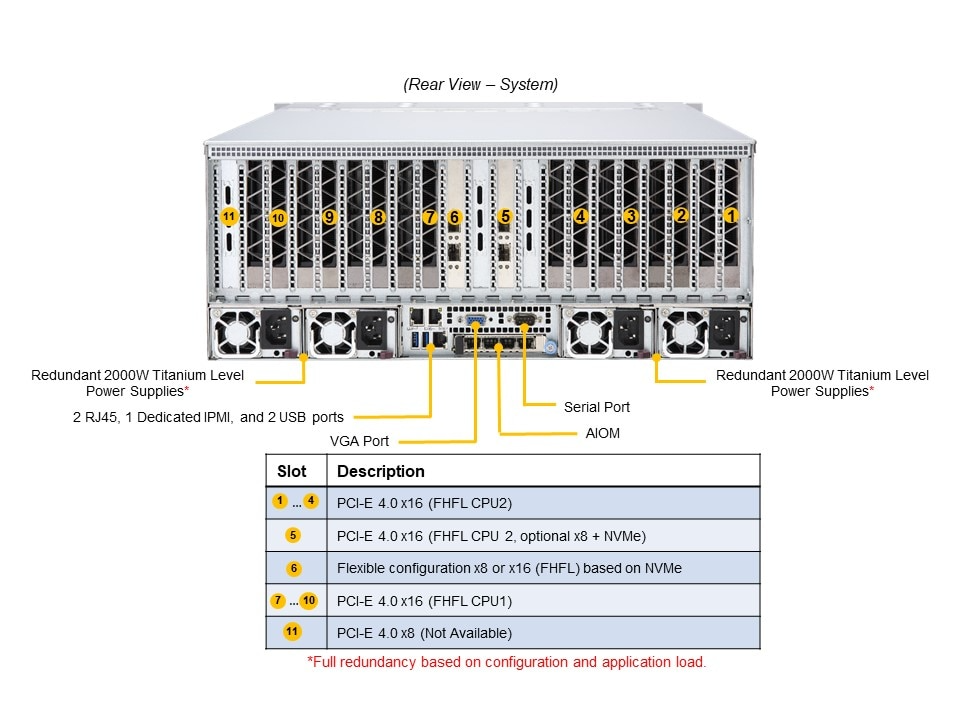

PCI-Express (PCIe) Configuration	Default 9 PCIe 4.0 x16 FHFL slots Option A 10 PCIe 4.0 x16 FHFL slots View AOC Options
Drive Bays / Storage

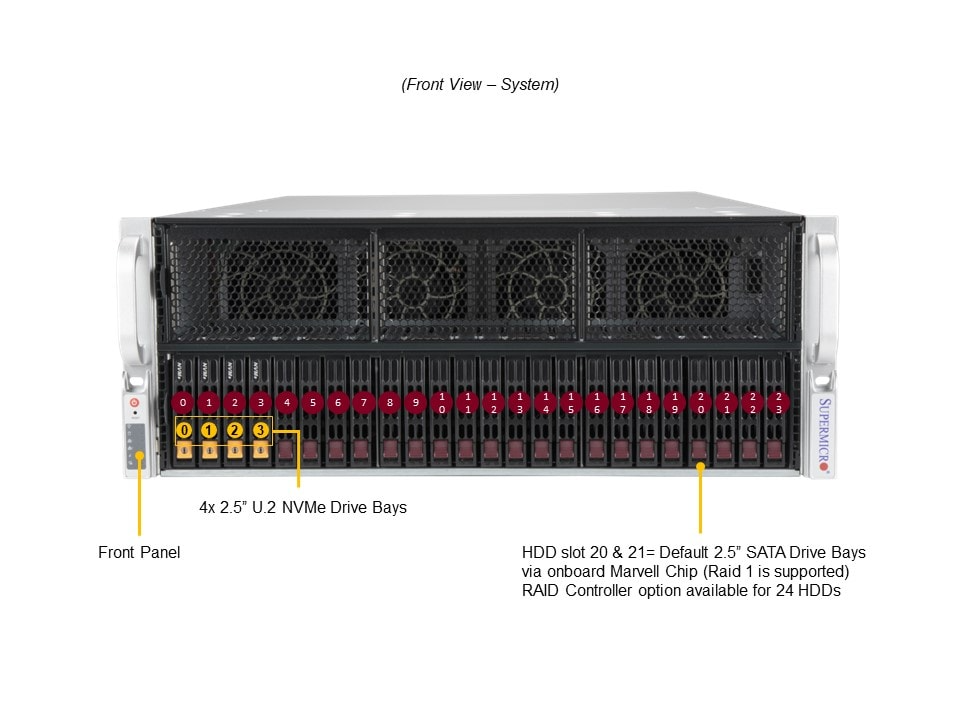

Drive Bays Configuration	Default: Total 24 bays 20 front hot-swap 2.5" SATA drive bays 4 front hot-swap 2.5" NVMe drive bays Option A: Total 24 bays 24 front hot-swap 2.5" SATA drive bays View NVMe Options View Drive Options
System Cooling
Fans	Up to 8x 11.5K RPM 92mm Fan(s)
Power Supply
	4x 2000W Redundant (2 + 2) Titanium Level (96%) power supplies
Dimension (WxHxL)	73.5 x 40 x 203 mm
Input	1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vdc 2000W: 220-240Vac 2000W: 230-240Vac 2000W: 230-240Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only) 2000W: 230-240Vdc / 50-60Hz (for China only)
+12V	Max: 83A / Min: 0A (100Vac-127Vac) Max: 150A / Min: 0A (200Vac-220Vac) Max: 165A / Min: 0A (220Vac-230Vac) Max: 166A / Min: 0A (230Vac-240Vac)
12V SB	Max: 3.5A / Min: 0A Max: 3.5A
Output Type	Backplanes (gold finger)
Operating Environment
ROHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (Non-Condensing) Non-operating Relative Humidity: 5% to 95% (Non-Condensing)

For detailed specifications, options, and compatibility, please refer to the latest official Supermicro documentation and the actual quotes/specifications from Autech.

Supports up to 8 double-width GPUs Direct connect for maximum performance
Dual AMD EPYC™ 7003/7002 Series Processors
8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs
9 PCIe 4.0 x16 (option: 10 PCIe 4.0 x16 slots without NVMe devices)
Up to 24 hot-swap 2.5" drive bays
Dual 2.5" SATA in RAID 1 via onboard Marvell 9230
Quad 2.5" PCIe4.0 NVMe (depends on PCIe quantity based on #4) RAID controller, option available for 24 HDDs
