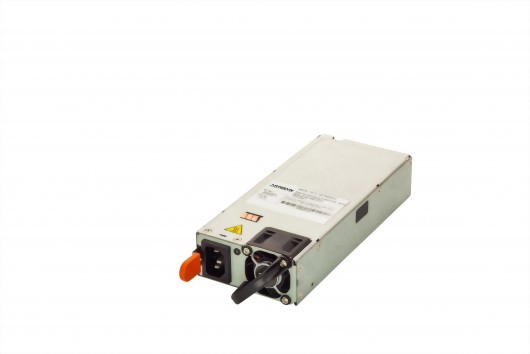

DS750PED-3 Series

The DS750PED-3 series bulk front end AC-DC power supply accepts a wide range 90–264 Vac input and provides a main 12 V output plus a 12 V standby output. Rated at 750 watts, it is an 80 Plus Platinum power supply with a peak conversion efficiency of 94%.

Model : ds750ped-3

Q'ty :

Housed in a 1U high rack-mounting enclosure with a short form factor that frees up system space, the DS750PED-3 has a high power density of 16 watts per cubic inch. This series comes in two airflow versions – dc-connector to ac-connector and vice versa.

The main 12 V output can deliver up to 62.5 amps and stays within regulation down to zero load, making it perfect for feeding downstream DC-DC converters in systems that use distributed power architectures (DPA). Active current sharing enables multiple supplies to be paralleled for very high current applications without need of additional components. The DS1100PED-3 power supply is hot pluggable and ideal for fault tolerant, N+1 and N+N redundant applications.

This digitally-controlled power supply is PMBus™ compliant. A built-in I2C serial interface allows set-up, monitoring and control to be performed using Artesyn Embedded Technologies' universal PMBus graphical user interface.

Total Max Power:
750 W
Total Max Current:
62.5 A
Input Voltage:
90 V to 264 V
Output Voltage:
11.4 V to 12.6 V
Outputs:
Dual
Size (L x W x H):
7.736" x 3.400" x 1.574"
Warranty:
2 years
Operating Temperature:
0 to +50°C
