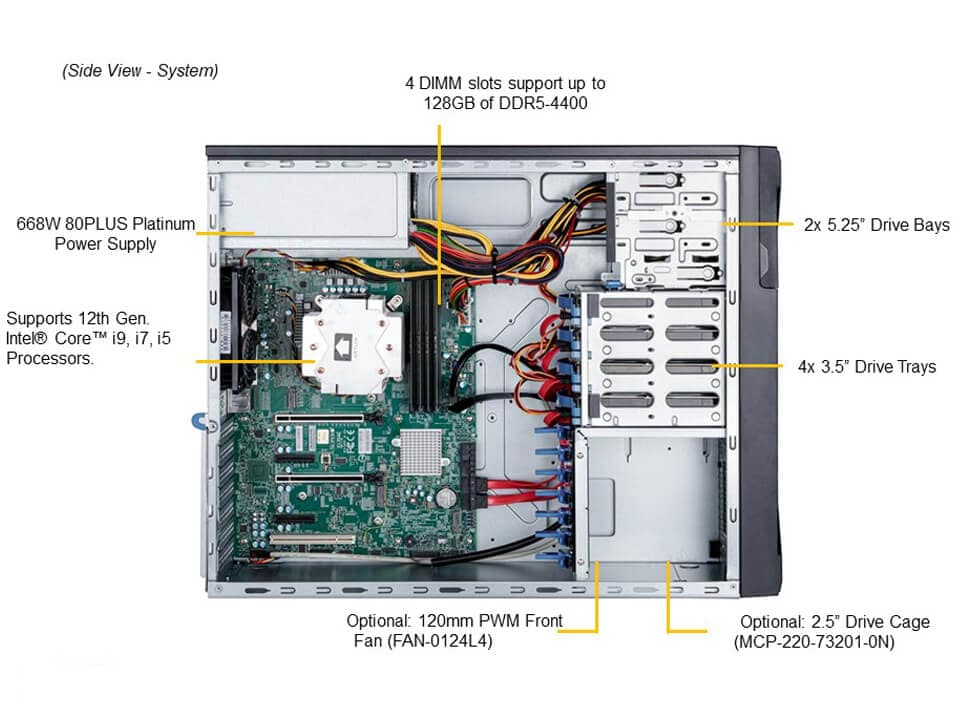

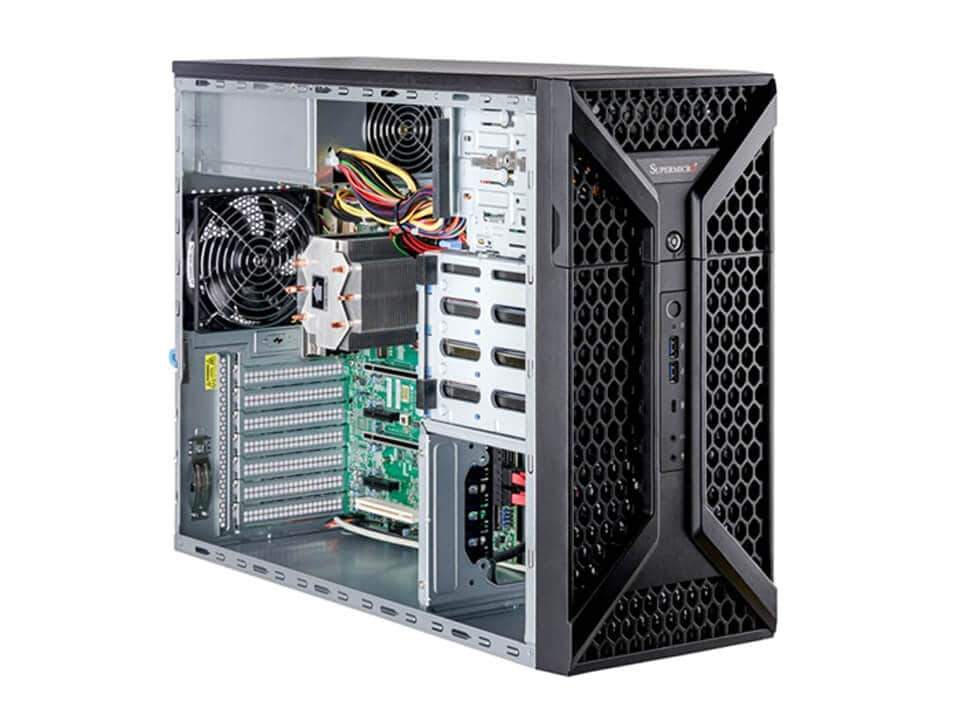

SYS-531A-IL

UP mid-tower workstation for 3D design and content creation
Model : SYS-531A-IL
Product SKUs
SuperWorkstation SYS-531A-IL
Motherboard
Super X13SAE
Processor
CPU
  • Single LGA-1700
  • 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3 Processors
Core Count
  • Up to 24C/32T; Up to 36MB Cache
Note
  • Supports up to 150W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 1 double-width GPU
Supported GPU
  • NVIDIA PCIe: RTX 5000 Ada, RTX 2000 Ada, T400, RTX 4000 Ada Generation, RTX A5500, T1000, RTX A6000, RTX A5000, RTX A4500, RTX A4000, RTX A2000
  • View GPU Options
System Memory
Memory
  • Slot Count: 4 DIMM slots
  • Max Memory (2DPC): Up to 192GB 4400MT/s non-ECC DDR5 UDIMM
  • View Memory Options
Memory Voltage
  • 1.1V
On-Board Devices
SATA
  • SATA (6Gbps)
Chipset
  • System on Chip
Network Connectivity
  • 1 RJ45 1GbE with Intel® I219-LM
  • 1 RJ45 2.5GbE with Intel® I225-V
  • View AOC Options

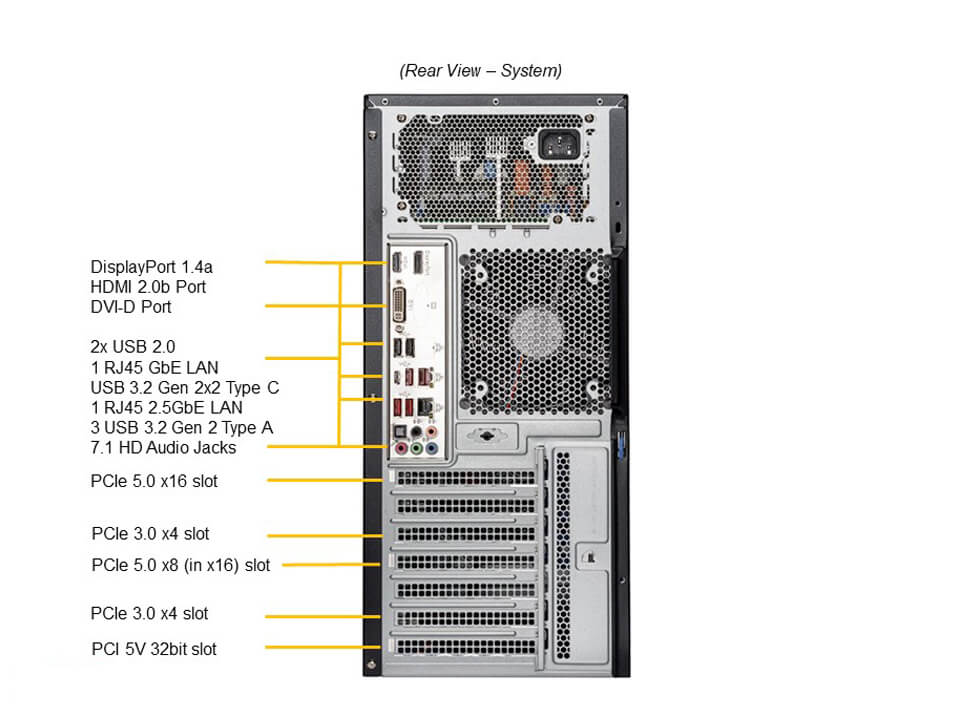

Input / Output
USB
  • 2 USB 2.0 Type-A ports(rear)
  • 2 USB 3.2 Gen1 Type-A ports(front)
  • 1 USB 3.2 Gen2 Type-C port(Rear)
  • 1 USB 3.2 Gen2 Type-C port(Front)
  • 3 USB 3.2 Gen1 Type-A ports(Rear)
Video
  • 1 HDMI 2.0b port
  • 1 DVI-D port
  • 1 DisplayPort 1.4a port
Audio
  • 7.1 HD Audio
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 256MB SPI Flash
Management
Software
Power configurations
  • ACPI 6.0 Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
Voltage
  • +1.0V PCH, +1.8V PCH, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 3.3V standby, 5 (4-pin), CPU, CPU temperature, CPU thermal trip support, PCH temperature, System temperature, VBAT, VRM temperature
Chassis
Form Factor
  • Mid-Tower
Model

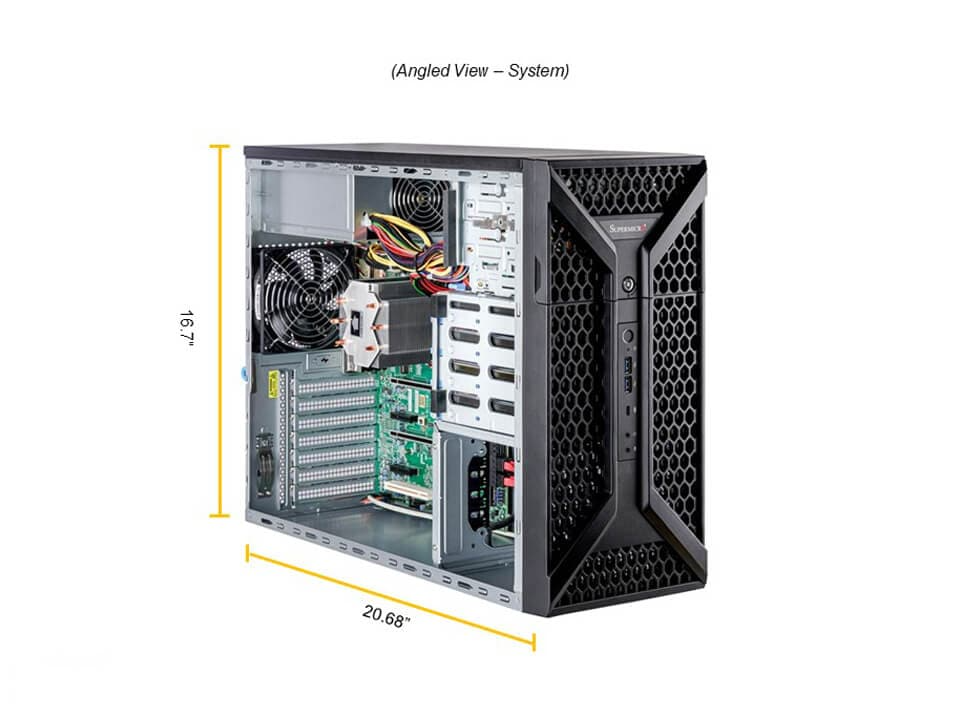

Dimensions and Weight
Height
  • 16.7" (424 mm)
Width
  • 7.6" (193 mm)
Depth
  • 21.1" (536 mm)
Package
  • 11.97" (H) x 21.38" (W) x 25.28" (D)
Weight
  • Gross Weight: 30 lbs (13.61 kg)
  • Net Weight: 28 lbs (12.7 kg)
Available Color
  • Black

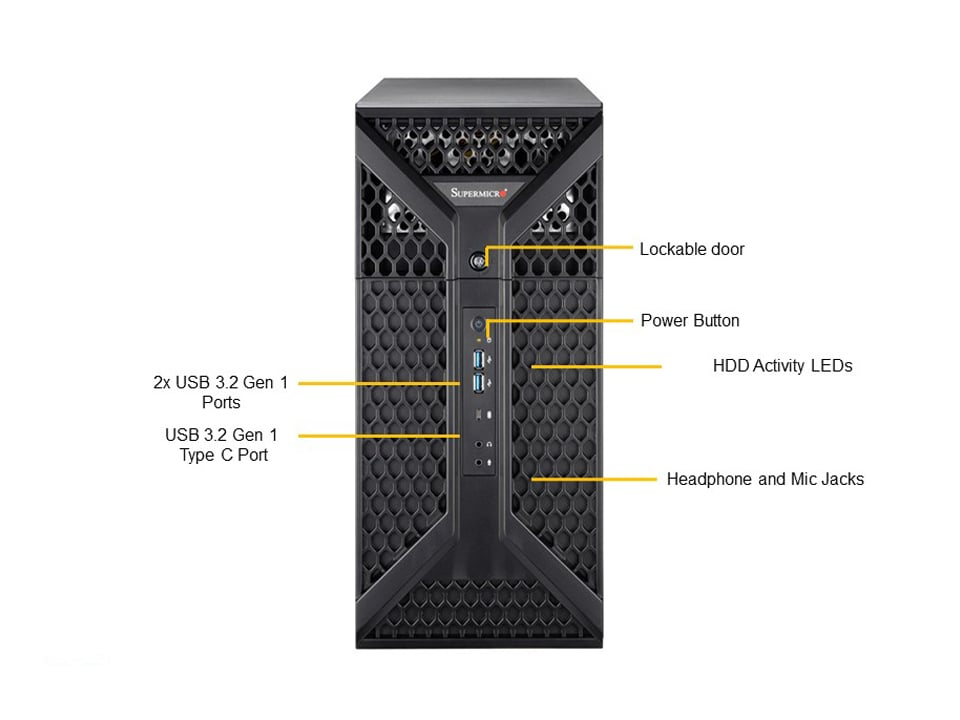

Front Panel
Port
  • Audio Jack(s)
  • USB 3.0 Port(s)
  • USB 3.2 Gen 2 Type C
LED
  • HDD activity LED
  • Power LED
Buttons
  • Power On/Off button
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default
    • 2 PCIe 3.0 x4 FHFL slots
    • 2 PCIe 5.0 x8 (in x16) FHFL slots
  • Option A
    • 2 PCIe 3.0 x4 FHFL slots
    • 1 PCIe 5.0 x16 FHFL slot
  • View AOC Options
Drive Bays / Storage
Drive Bays Configuration
M.2
Peripheral Bays
  • 2 5.25" bays
System Cooling
Fans
  • Up to 1x 120mm Fan(s)
  • Up to 1x 120mm Fan(s) (optional)
Power Supply
1x 668W Platinum Level (92%) power supply
Dimension (WxHxL) 150 x 86 x 185 mm
Input 100-240Vac
668W: 100-240Vac / 50-60Hz
+12V Max: 54A / Min: 0.2A (100Vac-240Vac)
Max: 54A (100Vdc-240Vdc)
5V SB Max: 2A / Min: 0A
Output Type 24pin ATX
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
  • Supports 14th/13th/12th Gen. Intel® Core™ i Processors
  • Dual LAN ports, 1 GbE and 2.5 GbE
  • 12cm PWM quiet exhaust fan and optional 12cm front intake fan
  • 668W 80PLUS Platinum Power Supply
