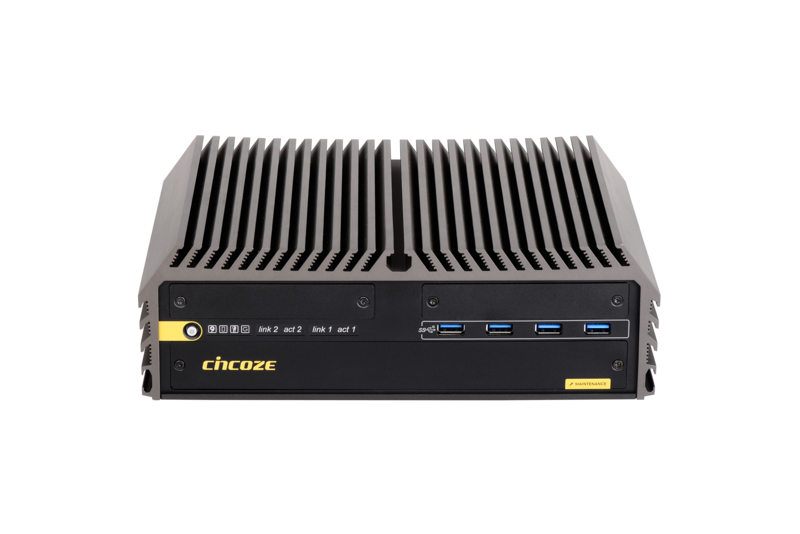

Embedded MXM GPU Computer
GM-1000 is a rugged, compact, and high-performance GPU computer with embedded GPU expansion capability. It supports Intel® Xeon®/Core™ socket type processors and Mobile PCI Express Module (MXM 3.1 Type A/B form factor) in a small footprint (260 mm x 200 mm x 85). It is ideal for applications requiring high GPU processing power and to be installed in space-limited environments.
Model :
GM-1000 Series
Cincoze’s GPU computers provide powerful computing performance and support various form factors of GPU expansion cards such as Mobile PCI Express Module (MXM), PCIe and even full-length PCIe. Built with a high power budget with optimized thermal design, these GPU computers can operate under 100% loading of CPU and GPU stably. Together with its rugged design and compliance of industry certifications, Cincoze’s GPU computers can be used in harsh environments.
ＣＰＵ：Supports 9/8th Generation Intel® Xeon® / Core™ LGA1151 Socket Type Processors
ＧＰＵ：1x MXM Carrier Board Interface for MXM3.1 Type A / Type B Expansion

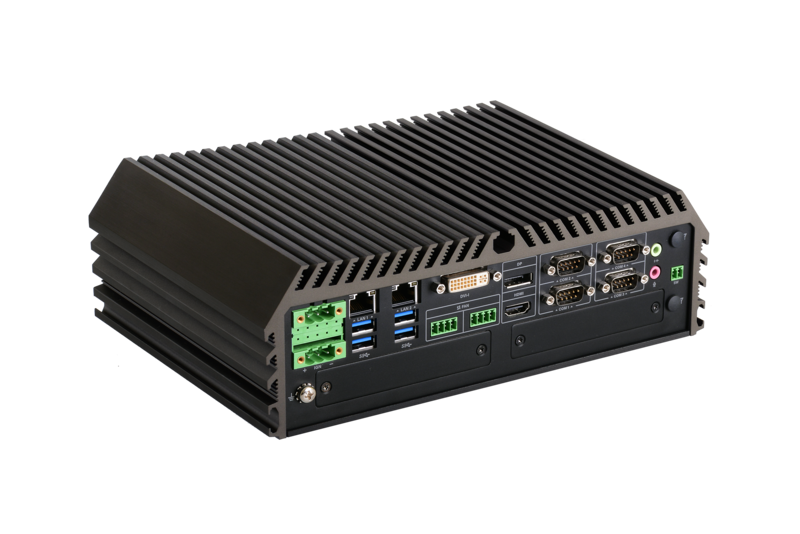

ＩＯ：
1x DVI-I
1x DisplayPort
1x HDMI
2x GbE LAN
4x COM
6x USB 3.2 Gen2
2x USB 3.2 Gen1
Ｅｘｐａｎｓｉｏｎ：
1x CFM Interface
2x CMI Interface
3x Full-size Mini-PCIe Sockets
2x SIM Socke
1x M.2 E Key Socket (CNVi)
1x M.2 M Key Socket (NVMe)
