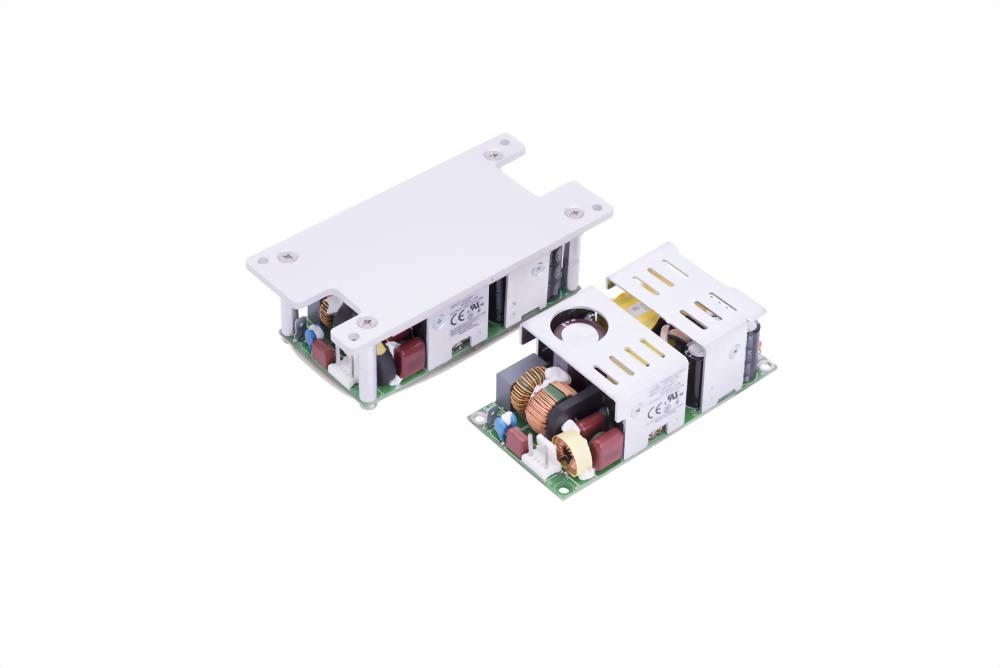

LB115S
• Small size of 2”x4”x1.3”
• 75W convection cooled/115 Watts with 200 LFM
• Universal Input 90-264Vac
• Meets EN55015 Conducted EMI
• Meets IEC61000-3-2 Class C for less than 1 Watt to full power
• Approved to UL/CSA/IEC/EN60950-1, 2nd Edition
• Approved to IEC60601-1, 3rd Edition & EN/IEC/UL62368-1
• Level V Efficiency Compliant
• -40°C startup
• -20°C to 70°C Operating Temperature Range
• Optional LED indicator for power-on
• 75W convection cooled/115 Watts with 200 LFM
• Universal Input 90-264Vac
• Meets EN55015 Conducted EMI
• Meets IEC61000-3-2 Class C for less than 1 Watt to full power
• Approved to UL/CSA/IEC/EN60950-1, 2nd Edition
• Approved to IEC60601-1, 3rd Edition & EN/IEC/UL62368-1
• Level V Efficiency Compliant
• -40°C startup
• -20°C to 70°C Operating Temperature Range
• Optional LED indicator for power-on
Model :
LB115S
| MAX WATTS | 115.00W |
| OUTPUT RANGE (VDC) | 12-56 |
| FORM FACTOR | Board-Only |
| SIZE (METRIC/SAE) | 50.8 x 101.6 x 33.0 (2 x 4 x 1.3) |
| EFFICIENCY | 90%, typ. Efficiency |
| SAFETY APPROVALS | IEC/EN/UL60950-1 |
- Small size of 2”x4”x1.3”
- 75W convection cooled/115 Watts with 200 LFM
- Universal Input 90-264Vac
- Meets EN55015 Conducted EMI
- Meets IEC61000-3-2 Class C for less than 1 Watt to full power
- Approved to UL/CSA/IEC/EN60950-1, 2nd Edition
- Approved to IEC60601-1, 3rd Edition & EN/IEC/UL62368-1
- Level V Efficiency Compliant
- -40°C startup
- -20°C to 70°C Operating Temperature Range
- Optional LED indicator for power-on
