SYS-532AW-C

UP mid-tower workstation for 3D design and content creation
Model : SYS-532AW-C

SYS-532AW-C is a Supermicro SuperWorkstation single-processor system. UP mid-tower workstation for 3D design and content creation

It is positioned for professional workstation deployments that require reliable compute, storage, expansion and graphics options in a server-grade platform. Key configuration references include Intel® Core™ Ultra 9/7/5 (Series 2) processors, Mid-Tower, 4 default / 6 max and 1x 1000W.

Official reference: Supermicro official product page

The following specifications are based on the official Supermicro SYS-532AW-C product page; actual shipping configuration remains subject to AUTECH quotes and the latest official manufacturer data.
Product SKUs
SuperWorkstation SYS-532AW-C
Motherboard
Super X14SAE

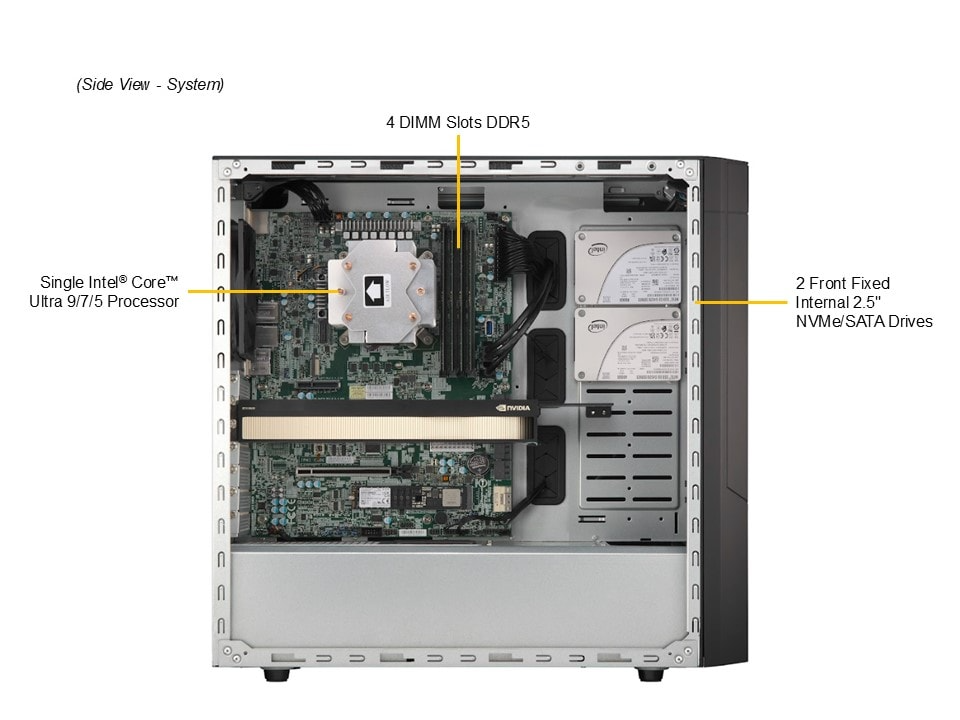

Processor
CPU Single LGA-1851
Intel® Core™ Ultra 9/7/5 (Series 2) processors
Core Count Up to 24C/24T; Up to 36MB Cache
Note Supports up to 125W TDP CPUs (Air Cooled)
GPU
Max GPU Count Up to 1 triple-width or 1 double-width GPU
Supported GPU NVIDIA PCIe: RTX 5000 Ada, RTX 6000 Ada Generation
NVIDIA: GeForce RTX 5070, GeForce RTX 5080, GeForce RTX 5090
System Memory
Memory Slot Count: 4 DIMM slots
Max Memory (2DPC): Up to 192GB 5600MT/s ECC/non-ECC DDR5 UDIMM
Memory Voltage 1.1V
On-Board Devices
SATA SATA (6Gbps) via Intel® W880; RAID 0/1/5/10 support
Chipset Intel® W880
Network Connectivity 1 RJ45 1GbE with Intel® I219-LM
1 RJ45 2.5GbE with Intel® I226-LM

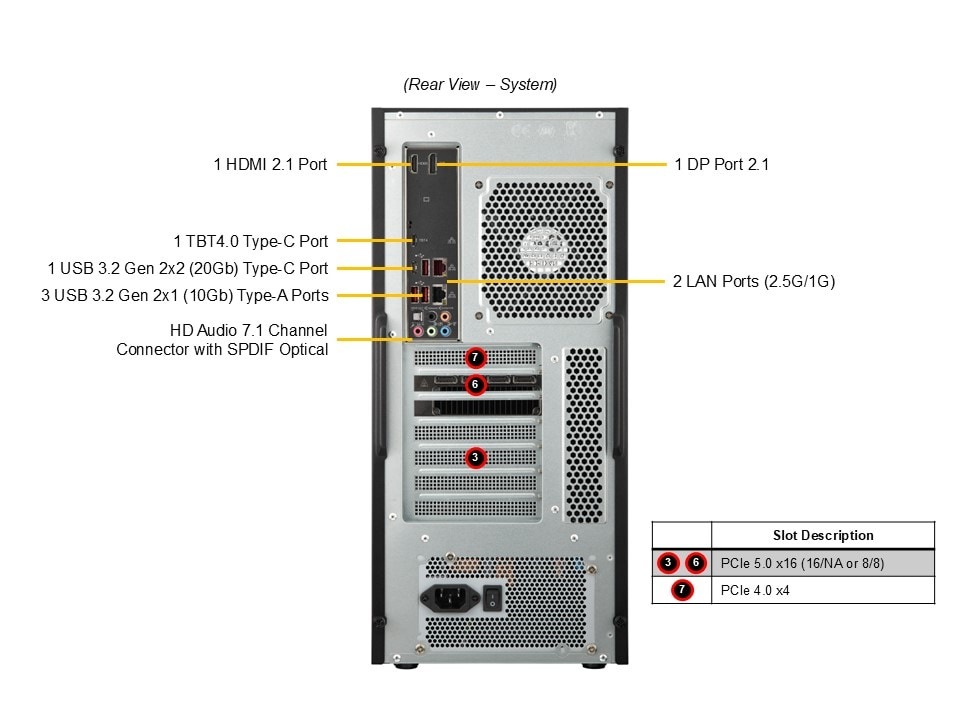

Input / Output
USB 2 USB 3.2 Gen1 Type-A ports (front)
3 USB 3.2 Gen2 Type-A ports (rear)
1 USB 3.2 Gen2 Type-C port (rear)
1 USB 3.2 Gen2 Type-C port (front)
1 Thunderbolt™ 4 Type-C port (rear)
Video 1 HDMI 2.1 port (rear)
1 DisplayPort 2.1 port (rear)
Audio 7.1 HD Audio
TPM 1 TPM Onboard TPM & TPM Header
System BIOS / Management / Security
BIOS Type AMI 256MB SPI Flash
Management Software Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Power Configurations ACPI 6.0 Power Management
Security Features Cryptographically Signed Firmware
Secure Boot
Security Hardware Trusted Platform Module (TPM) 2.0
PC Health Monitoring
Voltage +1.0V PCH, +1.8V PCH, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 3.3V standby, 5 (4-pin), CPU, CPU temperature, CPU thermal trip support, PCH temperature, System temperature, VBAT, VRM temperature
Chassis
Form Factor Mid-Tower
Model CSE-GS3A-000NBP

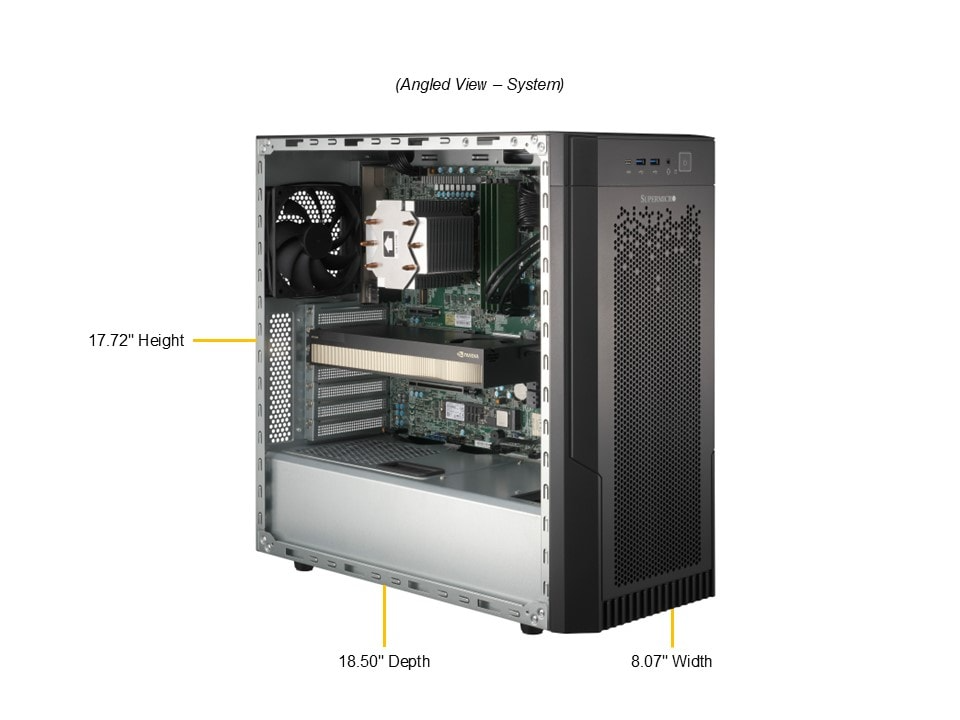

Dimensions and Weight
Height 17.72" (450 mm)
Width 8.07" (205 mm)
Depth 18.5" (470 mm)
Package 24.29" (H) x 12.8" (W) x 23.23" (D)
Weight Gross Weight: 19.2 lbs (8.7 kg)
Net Weight: 14.1 lbs (6.4 kg)
Available Color Black

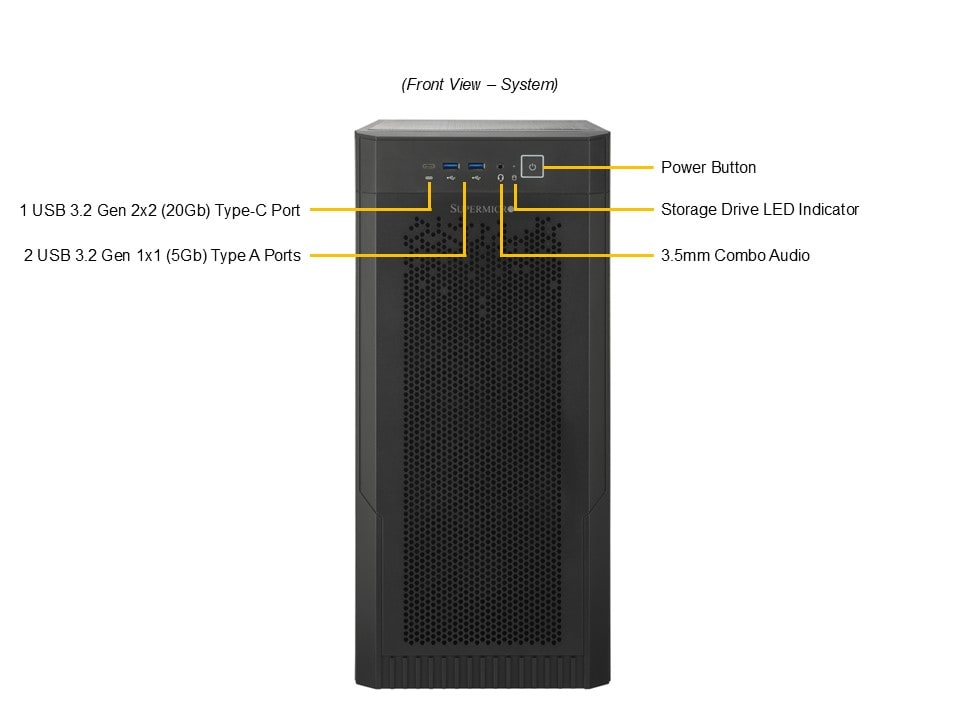

Front Panel
Buttons Power On/Off
LED HDD activity
Power status LED
Port Audio Jack-Combo microphone input / audio output port
USB Type-A Ports: USB 3.2 Gen 1x1 ports (5G)
USB Type-C: USB 3.2 Gen 2x2 port (20G)
Expansion Slots
PCI-Express (PCIe) Configuration Default: 2 PCIe 5.0 x8 (in x16) FHFL slots; 1 PCIe 4.0 x4 (in x4) FHHL slot
Option A: 1 PCIe 5.0 x16 (in x16) FHFL slot; 1 PCIe 4.0 x4 (in x4) FHHL slot
M.2 1 M.2 PCIe 5.0 x4 NVMe slot (M-key 2280 default)
1 M.2 PCIe 4.0 x4 NVMe slot (M-key 22110 default / 2280)
Drive Bays / Storage
Drive Bays Configuration Default: Total 6 bays
2 internal fixed 3.5"/2.5" SATA drive bays
4 internal fixed 2.5" NVMe*/SATA drive bays
*NVMe support may require additional storage controller and/or cables
M.2 1 M.2 PCIe 4.0 x4 NVMe slot (M-key 22110 default / 2280)
1 M.2 PCIe 5.0 x4 NVMe slot (M-key 2280 default)
System Cooling
Fans Up to 4x 120mm fan(s)
Power Supply
Default Power Supply 1x 1000W Gold Level (90%) power supply
Dimension (W x H x L) 150 x 86 x 140 mm
Input 1000W: 100-240Vac / 47-63Hz
+12V Max: 83.3A / Min: 0A (100Vac-240Vac)
5V SB Max: 3A / Min: 0A
Output Type 24pin ATX
Certification Gold Level
Operating Environment
Environmental Spec. Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
Environmental / Recycling
Recycle Return Server-End of Life Product
Source: Supermicro official product page

Product Description

SYS-532AW-C is a Supermicro SuperWorkstation single-processor system. UP mid-tower workstation for 3D design and content creation

It is positioned for professional workstation deployments that require reliable compute, storage, expansion and graphics options in a server-grade platform. Key configuration references include Intel® Core™ Ultra 9/7/5 (Series 2) processors, Mid-Tower, 4 default / 6 max and 1x 1000W.

Official reference: Supermicro official product page

Key Features

  • CPU: 1
  • CPU Type: Intel® Core™ Ultra 9/7/5 (Series 2) processors
  • Drives: 4 default / 6 max
  • Form Factor: Mid-Tower
  • Supported GPUs: N/A
  • Total Power: 1x 1000W

Applications

  • Professional workstation computing
  • Content creation, engineering or AI workloads according to configuration
  • Enterprise workstation deployment
  • Professional Workstation Computing
  • Content Creation
  • Engineering / Simulation
  • Enterprise Workstation Deployment
