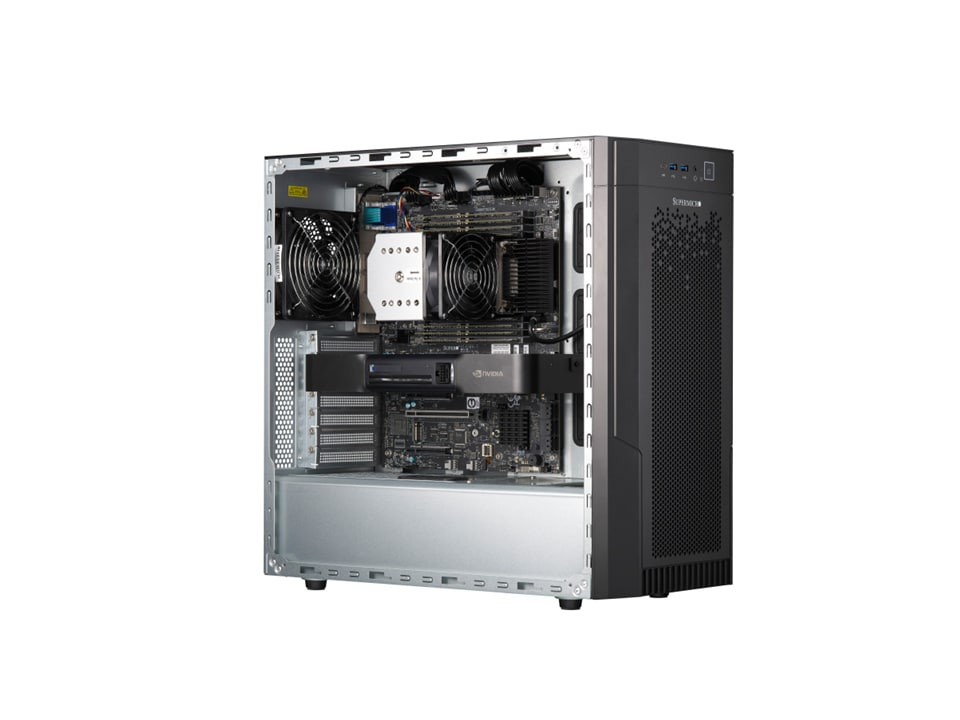

SYS-532AW-TC is a Supermicro SuperWorkstation single-processor system. High-performance mid-tower UP workstation for AI and 3D/simulation workloads
It is positioned for professional workstation deployments that require reliable compute, storage, expansion and graphics options in a server-grade platform. Key configuration references include Intel® Xeon® 600 Processor for Workstation, Mid-Tower, 6 default / 8 max and 1x 1300W.
Official reference: Supermicro official product page
|
The following specifications are based on Supermicro's official SYS-532AW-TC product page. Actual shipping configurations are subject to AUTECH's quotation and the manufacturer's latest data.
|
|
Product SKUs
|
|
SuperWorkstation SYS-532AW-TC
|
|
Motherboard
|
|
Supermicro X14SRA-T
|
|
Processor
|
|
CPU
|
Single E2 (LGA 4710-2)
Intel® Xeon® 600 Processor for Workstation
|
|
Core Count
|
Up to 86C/172T; Up to 336MB Cache
|
|
Note
|
Supports up to 350W TDP CPUs (Air Cooled)
|
|
GPU
|
|
Max GPU Count
|
Up to 2 double-width GPUs
|
|
Supported GPU
|
NVIDIA PCIe: NVIDIA RTX PRO™ 6000 Blackwell Max-Q Workstation Edition, NVIDIA RTX PRO™ 6000 Blackwell Workstation Edition
|
|
System Memory
|
|
Memory
|
Slot Count: 8 DIMM slots
Max Memory (2DPC): Up to 1TB 5200MT/s ECC DDR5 RDIMM
|
|
Memory Voltage
|
1.1V
|
|
On-Board Devices
|
|
SATA
|
SATA (6Gbps) via Intel® W890; RAID 0/1/5/10 support
|
|
Chipset
|
Intel® W890
|
|
Network Connectivity
|
1 RJ45 10GbE with Marvell® AQC113
1 RJ45 1GbE with Intel® I219-LM
|
|
Input / Output
|
|
USB
|
2 USB 3.2 Gen1 Type-A ports (front)
4 USB 3.2 Gen2 Type-A ports (rear)
1 USB 3.2 Gen2 Type-C port (rear)
1 USB 3.2 Gen2 Type-C port (front)
|
|
Serial
|
1 COM port (rear)
|
|
Audio
|
5.1 HD Audio
|
|
System BIOS / Management / Security
|
|
BIOS Type
|
AMI 256MB SPI Flash
|
|
Management
|
Supermicro SuperDoctor® 5 (SD5)
Supermicro Diagnostic Offline (SDO)
SuperServer Automation Assistant (SAA)
|
|
Power Configurations
|
Wake-on-LAN; ACPI 6.5 Power Management
|
|
Security
|
Trusted Platform Module (TPM) 2.0
Automatic Firmware Recovery
Cryptographically Signed Firmware
Secure Boot; Secure Firmware Updates
|
|
|
|
Chassis
|
|
Form Factor
|
Mid-Tower
|
|
Model
|
CSE-GS3A-000NBP
|
|
Dimensions and Weight
|
|
Height
|
17.72" (450 mm)
|
|
Width
|
8.07" (205 mm)
|
|
Depth
|
18.5" (470 mm)
|
|
Package
|
24.29" (H) x 12.8" (W) x 23.23" (D)
|
|
Weight
|
Gross Weight: 19.2 lbs (8.7 kg)
Net Weight: 14.1 lbs (6.4 kg)
|
|
Available Color
|
Black
|
|
Front Panel
|
|
Buttons
|
Power On/Off
|
|
LED
|
HDD activity
Power status LED
|
|
Port
|
Audio Jack-Combo microphone input / audio output port
USB Type-A ports: USB 3.2 Gen 1x1 ports (5G)
USB Type-C: USB 3.2 Gen 2x2 port (20G)
|
|
Expansion Slots
|
|
PCI-Express (PCIe) Configuration
|
Default: 2 PCIe 5.0 x8 (in x8) FHFL slots
2 PCIe 5.0 x16 (in x16) FHFL slots
|
|
Drive Bays / Storage
|
|
Drive Bays Configuration
|
Default: total 8 bays; 2 internal fixed 3.5"/2.5" SATA drive bays and 6 internal fixed 2.5" SATA drive bays.
Option A: total 8 bays; 2 internal fixed 3.5" SATA drive bays, 4 internal fixed 2.5" SATA drive bays and 2 internal fixed 2.5" PCIe 4.0 NVMe drive bays.
|
|
M.2
|
2 M.2 PCIe 5.0 x4 NVMe slots (M-key 22110 default / 2280; VROC required for RAID)
|
|
System Cooling
|
|
Fans
|
Up to 4x 120mm fans; additional 120mm fan options depend on configuration
|
|
Power Supply
|
|
Default Power Supply
|
1x 1300W Platinum Level (92%) power supply
|
|
Power Options
|
1000W, 1300W and 2000W power supply options
|
|
Input
|
1300W: 100-240Vac / 50-60Hz
|
|
Certification
|
Platinum Level
|
|
Operating Environment
|
|
Environmental Spec.
|
Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
|
|
|
Source: Supermicro official product page
|
Product Description
SYS-532AW-TC is a Supermicro SuperWorkstation single-processor system. High-performance mid-tower UP workstation for AI and 3D/simulation workloads
It is positioned for professional workstation deployments that require reliable compute, storage, expansion and graphics options in a server-grade platform. Key configuration references include Intel® Xeon® 600 Processor for Workstation, Mid-Tower, 6 default / 8 max and 1x 1300W.
Official reference: Supermicro official product page
Key Features
-
CPU: 1
-
CPU Type: Intel® Xeon® 600 Processor for Workstation
-
Drives: 6 default / 8 max
-
Form Factor: Mid-Tower
-
Supported GPUs: NVIDIA PCIe: NVIDIA RTX PRO™ 6000 Blackwell Max-Q Workstation Edition, NVIDIA RTX PRO™ 6000 Blackwell Workstation Edition
-
Total Power: 1x 1300W
Applications
-
Professional workstation computing
-
Content creation, engineering or AI workloads according to configuration
-
Enterprise workstation deployment
-
Professional Workstation Computing
-
Content Creation
-
Engineering / Simulation
-
Enterprise Workstation Deployment
