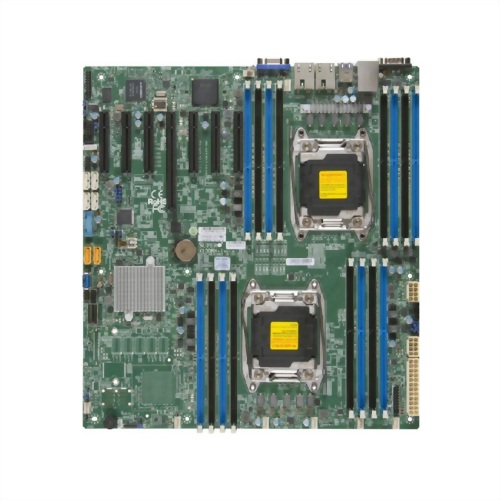

MBD-X11DAi-N

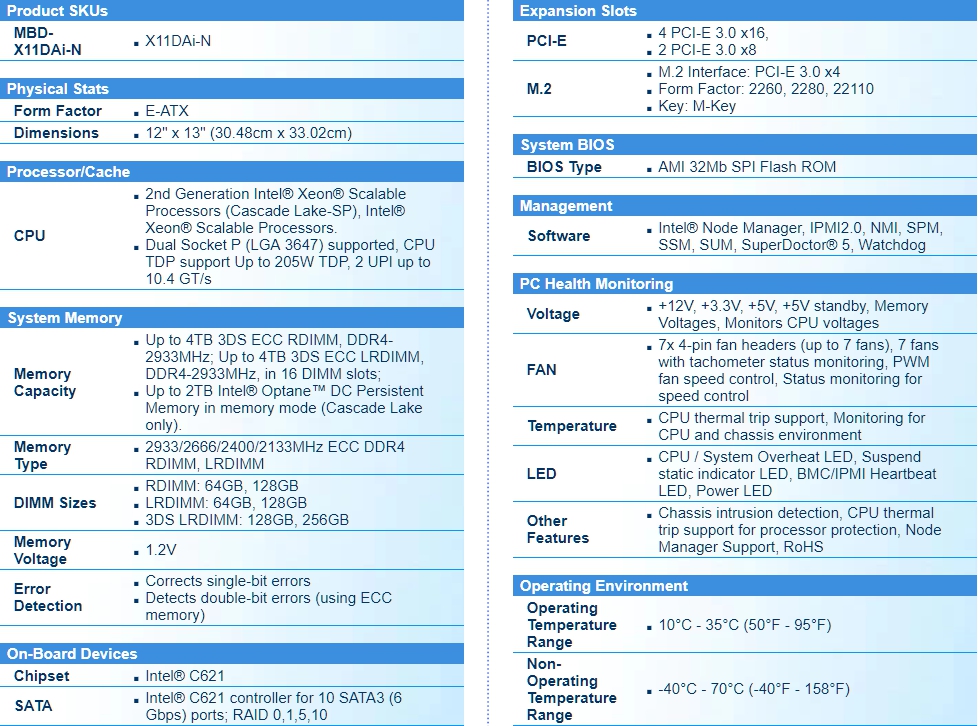

2nd Generation Intel® Xeon® Scalable Processors (Cascade Lake-SP), Intel® Xeon® Scalable Processors.Dual Socket P (LGA 3647) supported, CPU TDP support Up to 205W TDP, 2 UPI up to 10.4 GT/s.Intel® C621.Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz, in 16 DIMM slots;Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only).
Model :
X11DAi-N
-
2nd Generation Intel® Xeon® Scalable Processors (Cascade Lake-SP), Intel® Xeon® Scalable Processors.
Dual Socket P (LGA 3647) supported, CPU TDP support Up to 205W TDP, 2 UPI up to 10.4 GT/s - Intel® C621
-
Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz, in 16 DIMM slots;
Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only). -
4 PCI-E 3.0 x16,
2 PCI-E 3.0 x8
M.2 Interface: PCI-E 3.0 x4
M.2 Form Factor: 2260, 2280, 22110
M.2 Key: M-Key,
2 PCI-E 3.0 NVMe x4 Internal Port(s) - 1 VGA port
- Intel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
- Dual LAN with GbE from C621
Parts List
| Parts List (Bulk Package) | |||
| Name | Part Number | Qty | Description |
| X11DAi-N | MBD-X11DAi-N | 1 | Motherboard |
| IO Cable | CBL-0044L | 2 | SATA CABLE 61CM FLAT S-S PBF |
| I/O Shield | MCP-260-00115-0N | 1 | STD size I/O Shield for X11DAi-N with EMI Gasket and front metal,RoHS/REACH |
| Parts List (Retail Package) | |||
| Name | Part Number | Qty | Description |
| X11DAi-N | MBD-X11DAi-N | 1 | |
| IO Cable | CBL-0044L | 2 | SATA CABLE 61CM FLAT S-S PBF |
| IO shield | MCP-260-00115-0N | 1 | STD size I/O Shield for X11DAi-N with EMI Gasket and front metal,RoHS/REACH |
| Quick Reference Guide | MNL-1957-QRG | 1 | Quick Reference Guide |
| Optional Parts List | |||
| Name | Part Number | Qty | Description |
| TPM security module (optional, not included) | AOM-TPM-9670V | -- | SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor |
| TPM security module (optional, not included) | AOM-TPM-9670H | SPI capable TPM 2.0 with Infineon 9670 controller with horizontal form factor | |
| TPM security module (optional, not included) | AOM-TPM-9671V | SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor | |
| TPM security module (optional, not included) | AOM-TPM-9671H | SPI capable TPM 1.2 with Infineon 9670 controller with horizontal form factor | |
