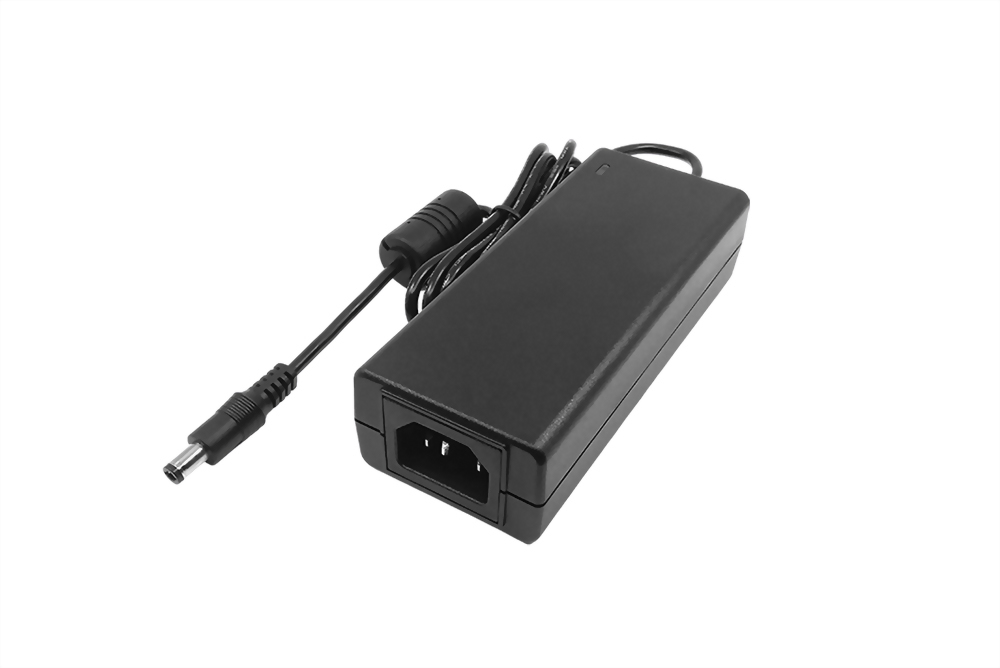

SLE48
• Medical & ITE Safety Approvals
• 2 x MOPP Input to Output Isolation
• Suitable for Medical Equipment Up to Class BF(^)
• Low Leakage Current ≤50μA
• DOE Efficiency Level VI
• CoC V5 Tier 2(2016)
• ≤0.075W Standby Power
• 9V to 48V Outputs, Up to 48W
• 5,000m Operating Altitude
• AC Inlet IEC60320 C8 (class II) or C14 (Class I) input
• 2 x MOPP Input to Output Isolation
• Suitable for Medical Equipment Up to Class BF(^)
• Low Leakage Current ≤50μA
• DOE Efficiency Level VI
• CoC V5 Tier 2(2016)
• ≤0.075W Standby Power
• 9V to 48V Outputs, Up to 48W
• 5,000m Operating Altitude
• AC Inlet IEC60320 C8 (class II) or C14 (Class I) input
Model :
SLE48
| MAX WATTS | 48.00W |
| OUTPUT RANGE (VDC) | 9-48 |
| FORM FACTOR | Desktop |
| SIZE (METRIC/SAE) | 122x51x 31.5 (4.8x2x1.24) |
| EFFICIENCY | 89%, typ. Efficiency |
| SAFETY APPROVALS | CSA/EN/IEC/UL62368-1 | CSA/EN/IEC/UL60601-1, 3rd Edition |
- Medical & ITE Safety Approvals
- 2 x MOPP Input to Output Isolation
- Suitable for Medical Equipment Up to Class BF(^)
- Low Leakage Current ≤50μA
- DOE Efficiency Level VI
- CoC V5 Tier 2(2016)
- ≤0.075W Standby Power
- 9V to 48V Outputs, Up to 48W
- 5,000m Operating Altitude
- AC Inlet IEC60320 C8 (class II) or C14 (Class I) input
