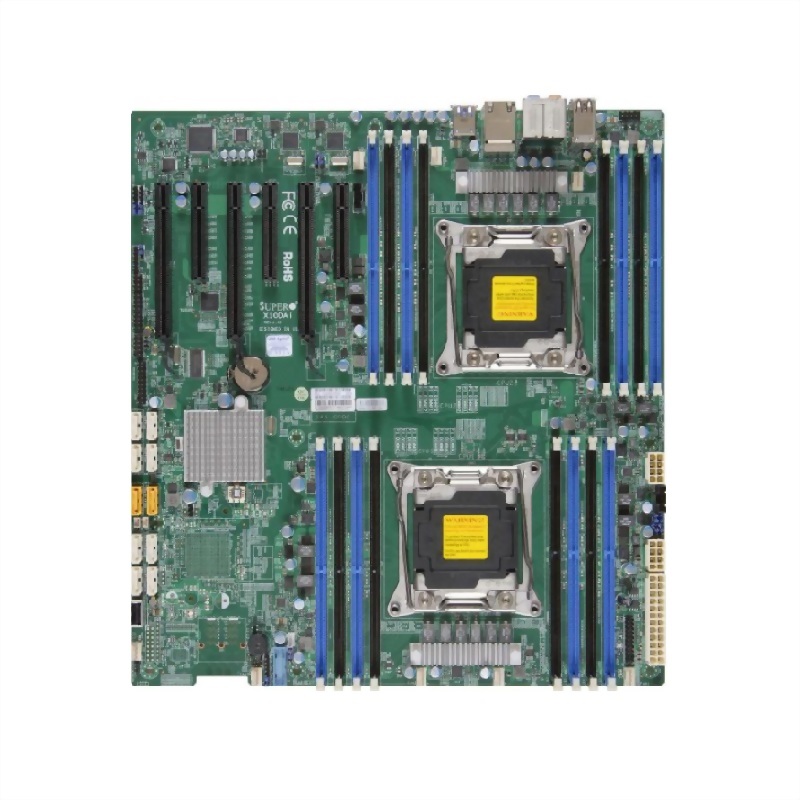

MBD-X10DAi Workstation

Dual socket R3 (LGA 2011) supports ，Intel® Xeon® processor E5-2600 ，v4†/ v3 family; UPI up to 9.6GT/s，Intel® C612 chipset，Up to 2TB† ECC 3DS LRDIMM , up to，DDR4- 2400†MHz; 16 DIMM slots，3 PCI-E 3.0 x16, 2 PCI-E 3.0 x8, and ，1 PCI-E 2.0 x4 (in x8) slot，Dual GbE LAN ports via Intel® i210

Model : X10DAi

Q'ty :

Dual socket R3 (LGA 2011) supports
Intel® Xeon® processor E5-2600
v4†/ v3 family; UPI up to 9.6GT/s
Intel® C612 chipset
Up to 2TB† ECC 3DS LRDIMM , up to
DDR4- 2400†MHz; 16 DIMM slots
3 PCI-E 3.0 x16, 2 PCI-E 3.0 x8, and
1 PCI-E 2.0 x4 (in x8) slot
Dual GbE LAN ports via Intel® i210

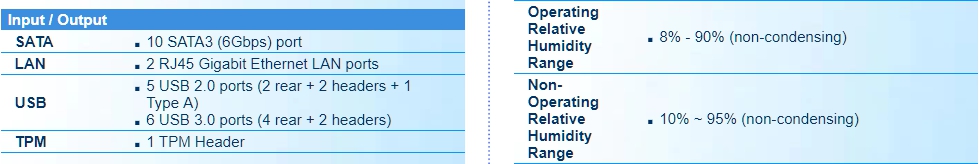

10 SATA3 (6Gbps) ports w/ Intel®
C612 controller; RAID 0, 1, 5, 10
6 USB 3.0 (4 rear + 2 via header(s)) 5 USB 2.0 (4 via header(s) + 1 Type A)
7.1 HD Audio with optical S/PDIF
Thunderbolt Add-On Card support

Parts List

Parts List (Retail Package)
Name	Part Number	Qty	Description
X10DAi	MBD-X10DAi	1	X10DAi Motherboard
I/O Shield	MCP-260-00045-1N	1	STD size I/O Shield for X10DAi with EMI Gasket and front metal, RoHS/REACH
I/O Cables	CBL-0044L	6	SATA CABLE 61CM FLAT S-S PBF
Quick Reference Guide	MNL-1563-QRG	1	Quick Reference Guide

Optional Parts List
Name	Part Number	Qty	Description
Heat Sink (optional, not included)		--	CPU Heat Sink reference
SuperDOM		--	Supermicro SATA DOM Solutions [Details]
Add-on Card	AOC-TBT-DSL5320		Thunderbolt 2, W/Display and GPIO cable, HF, RoHS/REACH
TPM security module (optional, not included)	AOM-TPM-9655V AOM-TPM-9655H		TPM 1.2 module with Infineon 9655, RoHS/REACH, PBF; Vertical or Horiztonal depends on the server
TPM security module (optional, not included)	AOM-TPM-9655V-S AOM-TPM-9655H-S		TPM 1.2 module with Infineon 9655, RoHS/REACH, PBF; Vertical or Horiztonal depends on the server, provision for TXT
TPM security module (optional, not included)	AOM-TPM-9665V AOM-TPM-9665H		TPM 2.0 module with Infineon 9665, RoHS/REACH, PBF; Vertical or Horizontal depends on the server
TPM security module (optional, not included)	AOM-TPM-9665V-S AOM-TPM-9655H-S		TPM 2.0 module with Infineon 9665, RoHS/REACH, PBF; Vertical or Horizontal depends on the server, provisioned for TXT
