MBD-X11SPL-F (VROC support)
2nd Generation Intel® Xeon® Scalable Processors (Cascade Lake-SP), Intel® Xeon® Scalable Processors., Single Socket P (LGA 3647) supported, CPU TDP support 165W,Up to 2TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 2TB 3DS ECC LRDIMM,DDR4-2933MHz, in 8 DIMM slots;Up to 1TB Intel Optane DC,Persistent Memory in memory mode (Cascade Lake Only),Intel® C621 Chipset,2 GbE LAN ports,8 SATA3 (6Gbps) ports
Model :
X11SPL-F
- 2nd Generation Intel® Xeon® Scalable Processors (Cascade Lake-SP), Intel® Xeon® Scalable Processors., Single Socket P (LGA 3647) supported, CPU TDP support 165W
-
Up to 2TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-2933MHz, in 8 DIMM slots;
Up to 1TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake Only) - Intel® C621 Chipset
-
Expansion slots:
2 PCI-E 3.0 x8 (in x16),
4 PCI-E 3.0 x8,
1 PCI-E 3.0 x4 (in x8) - 2 GbE LAN ports
- 8 SATA3 (6Gbps) ports
- I/O: 1 VGA, 2 COM, TPM header
- 2 SuperDOM with built-in power
- 5 USB 3.0 (2 rear, 1 Type-A, 2 via header), 8 USB 2.0 (2 rear, 6 via headers)
-
M.2 NGFF connector
M.2 Interface: PCI-E 3.0 x4 and SATA
Form Factor: 2280, 22110
Key: M-Key
Double Height Connector

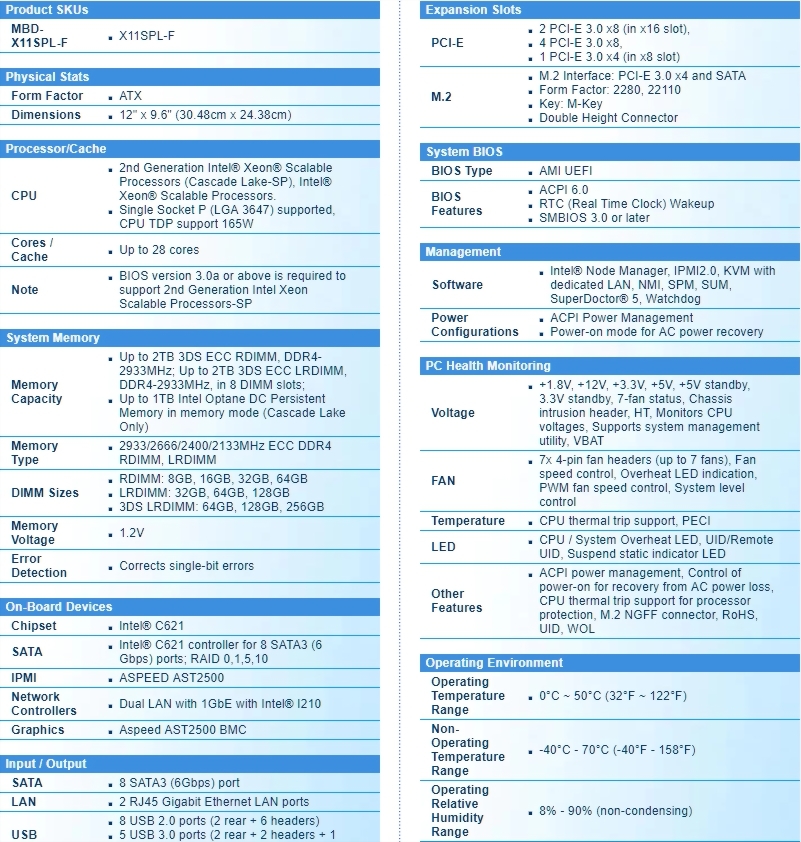

Specifications
Parts List
| Parts List (Bulk Package) | |||
| Name | Part Number | Qty | Description |
| Motherboard | MBD-X11SPL-F | 1 | X11SPL-F Motherboard |
| I/O Cables | CBL-0044L | 2 | 57.5 cm SATA FLAT S-S PBF |
| I/O Shield | MCP-260-00042-0N | 1 | STD I/O Shield for X11SPL-F with EMI Gasket |
| Parts List (Retail Package) | |||
| Name | Part Number | Qty | Description |
| Motherboard | MBD-X11SPL-F | 1 | X11SPL-F Motherboard |
| QRG | MNL-1950-QRG | 1 | Motherboard Quick Reference Guide |
| I/O Cables | CBL-0044L | 6 | 57.5 cm SATA FLAT S-S PBF |
| I/O Shield | MCP-260-00042-0N | 1 | STD I/O Shield for X11SPL-F with EMI Gasket |
| Optional Parts List | |||
| Name | Part Number | Qty | Description |
| TPM security module | AOM-TPM-9670H | SPI capable TPM 2.0 with Infineon 9670 controller with horizontal form factor | |
| TPM security module | AOM-TPM-9670V | SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor | |
| TPM security module | AOM-TPM-9671H | SPI capable TPM 1.2 with Infineon 9670 controller with horizontal form factor | |
| TPM security module | AOM-TPM-9671V | SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor | |
