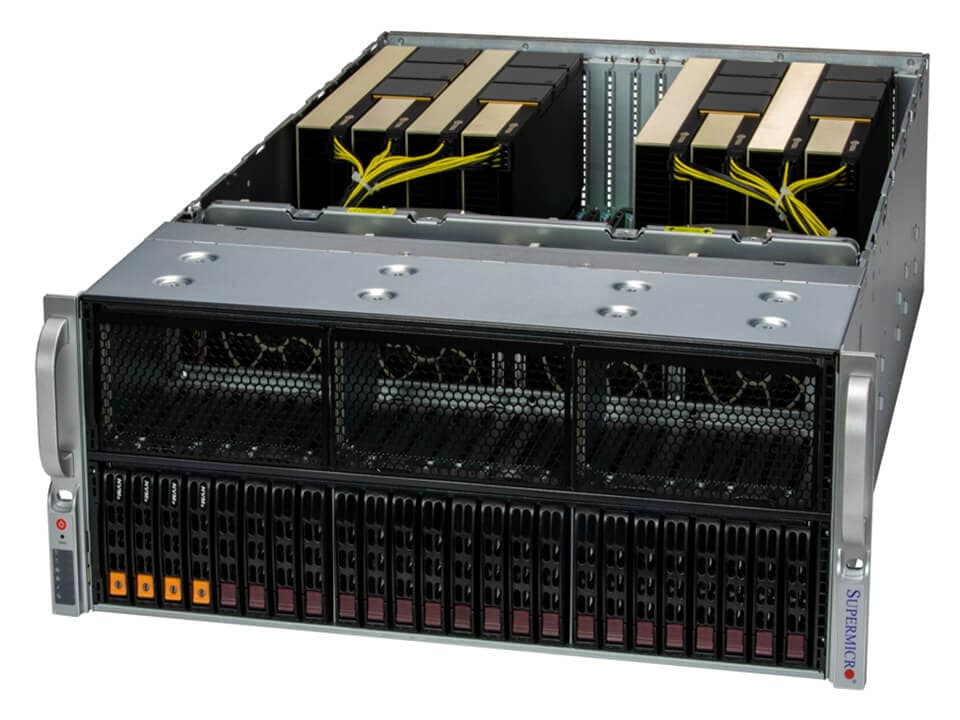

SYS-421GE-TNRT3

DP Intel 4U Direct-connect PCIe GPU System with up to 8 GPUs
Model : SYS-421GE-TNRT3

Product SKUs
SYS-421GE-TNRT3
Motherboard
Super X13DEG-OA
Processor
CPU
  • Dual Socket E (LGA-4677)
  • 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 64C/128T; Up to 320MB Cache per CPU
Note
  • Supports up to 350W TDP CPUs (Air Cooled)
  • Supports up to 385W TDP CPUs (Liquid Cooled)​
GPU
Max GPU Count
  • Up to 8 double-width or 8 single-width GPUs
Supported GPU
  • NVIDIA PCIe: H100, H100 NVL, A100, L4, L40S, RTX 5000, RTX 6000 Ada Generation, RTX A4000
  • View GPU Options
CPU-GPU Interconnect
  • PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
  • NVIDIA® NVLink™ Bridge (optional)
Certification
System Memory
Memory
  • Slot Count: 32 DIMM slots
  • Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
  • Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM
  • View Memory Options
Memory Voltage
  • 1.1V
On-Board Devices
Network Connectivity
  • 2 RJ45 10GbE with Intel® X710-AT2
  • View AIOM Options
  • View AOC Options
Input / Output
Video
  • 1 VGA port
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • 8+4 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors

Chassis
Form Factor
  • 4U Rackmount
Model
  • CSE-418G2TS-R5K40P
Dimensions and Weight
Height
  • 7" (178 mm)
Width
  • 17.2" (437 mm)
Depth
  • 29" (737 mm)
Package
  • 26.57" (H) x 27" (W) x 41" (D)
Weight
  • Gross Weight: 100 lbs (45.3 kg)
  • Net Weight: 65.5 lbs (29.7 kg)
Available Color
  • Black Front & Silver Body
Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LED
  • Hard drive activity LED
  • Network activity LEDs
  • Power status LED
  • System Overheat & Power Fail LED
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default
    • 8 PCIe 5.0 x16 FHFL slots
  • View AOC Options
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 12 bays
    • 4 front hot-swap 2.5" NVMe drive bays
    • 8 front hot-swap 2.5" SATA drive bays
  • View NVMe Options
  • View Drive Options
M.2
  • 2 M.2 NVMe slots (M-key)
  • View M.2 Options
System Cooling
Fans
  • Up to 8 heavy duty fans with optimal fan speed control
Liquid Cooling
  • Direct to Chip (D2C) Cold Plate (optional)
Power Supply
 4x 2700W Redundant Titanium Level (96%) power supplies
Dimension (WxHxL)73.5 x 40 x 203 mm
Input2700W: 200-240Vac
2700W: 200-240Vac / 50-60Hz
2700W: 240-240Vdc / 50-60Hz (for CQC only)
+12VMax: 225A / Min: 0A (200Vac-240Vac)
Max: 225A / Min: 0A (240Vdc-240Vdc)
12V SBMax: 3.5A / Min: 0A
Max: 4A / Min: 0A
Output TypeBackplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)

For detailed specifications, options, and compatibility, please refer to the latest official Supermicro documentation and the actual quotes/specifications from Autech.

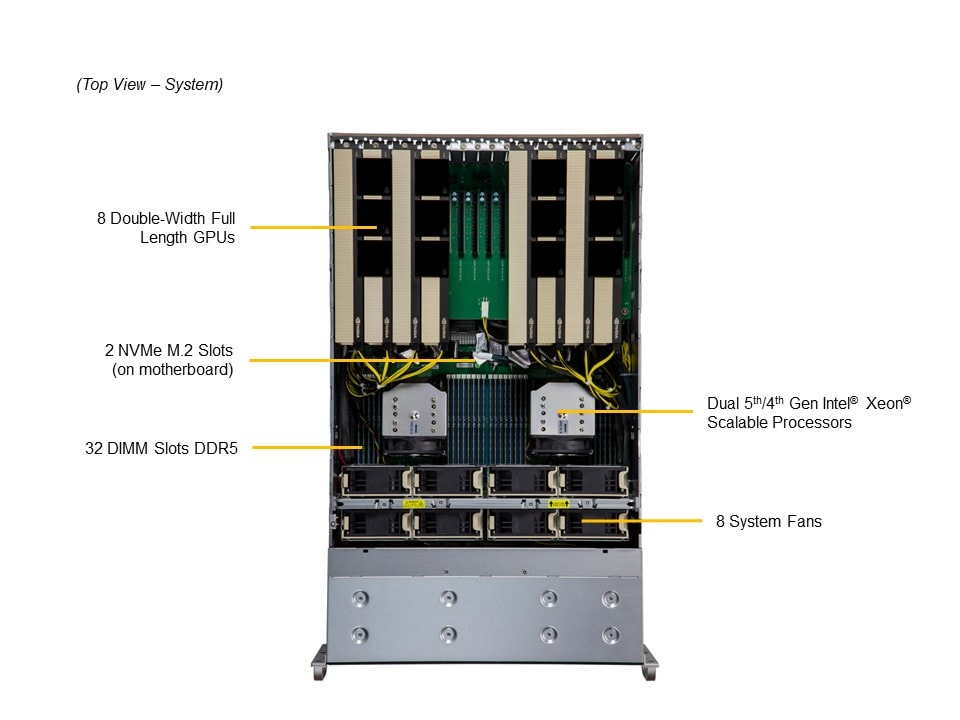

  1. 5th/4th Gen Intel® Xeon® Scalable processor support
  2. 32 DIMM slots Up to 8TB: 32x 256 GB DRAM Memory Type: 5600MTs ECC DDR5
  3. AIOM/OCP 3.0 Support

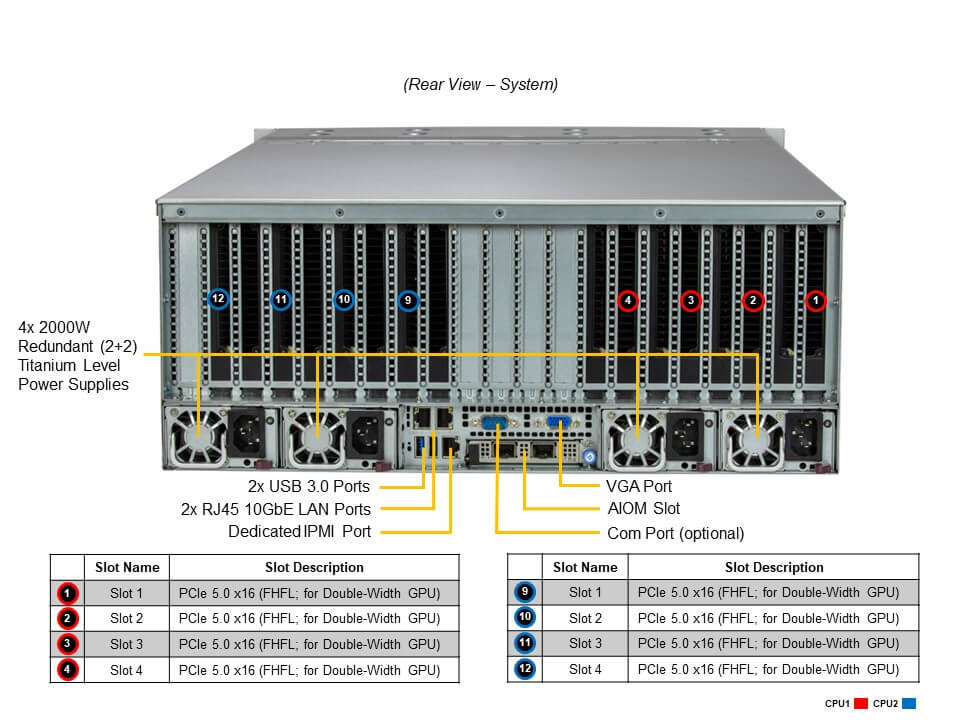

    8 PCIe Gen 5.0 X16 FHFL Slots

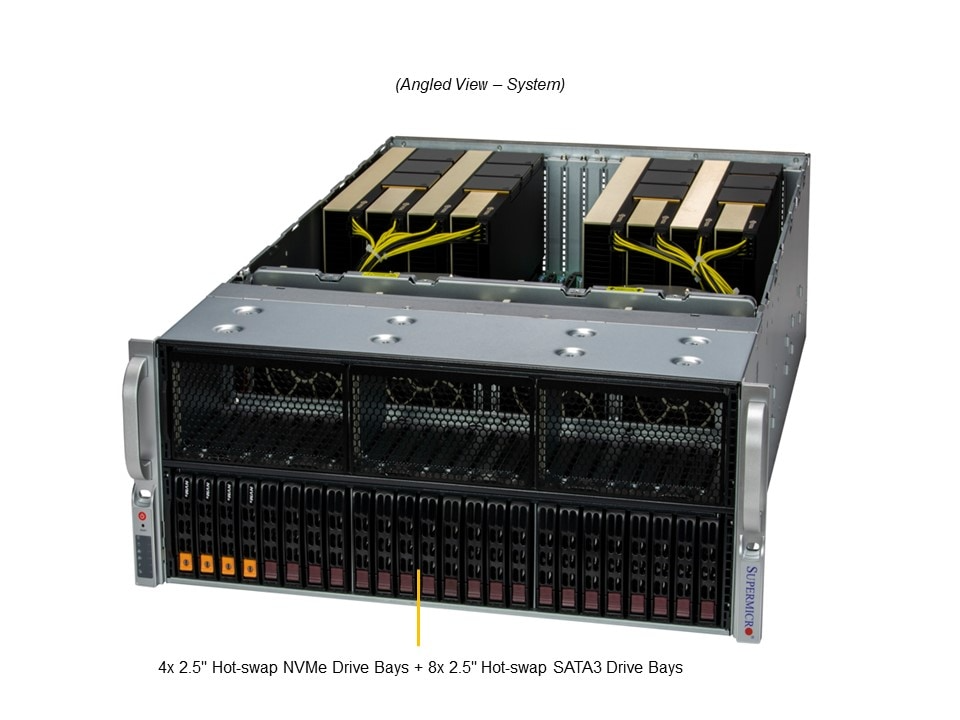

  4. 8x 2.5" Hot-swap SATA drive bays
    4x2.5" Hot-swap NVMe drive bays
    8 HOT SWAP 2.5" SATA/SAS (AOC required)
  5. 8 Hot-Swap Heavy Duty Fans with Optimal Fan Speed Control
  6. 4x 2700W (2+2) Redundant Power Supplies, Titanium Level
  • High Performance Computing
  • AI/Deep Learning Training
  • Cloud Gaming
  • Design & Visualization
  • Diagnostic Imaging
  • VDI
  • Media/Video Streaming
  • Animation and Modeling
  • 3D Rendering

Related Products

AS -8125GS-TNMR2

AS -8125GS-TNMR2

AS -4125GS-TNRT

AS -4125GS-TNRT

SYS-522GA-NRT

SYS-522GA-NRT

AS -5126GS-TNRT2

AS -5126GS-TNRT2

SuperServer 4028GR-TXRT

SuperServer 4028GR-TXRT

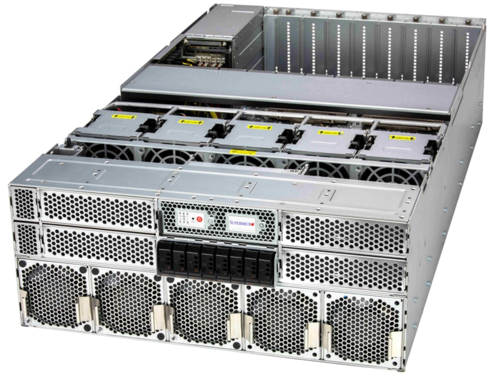

SYS-422GL-NR
