Desktop Chassis
*.m-ATX Desktop Chassis
*.Supports m-ATX M/B
*.5.25"x2 /3.5" x1 /U3x2 /U2x2 Audio(HD)
*.Supports m-ATX M/B
*.5.25"x2 /3.5" x1 /U3x2 /U2x2 Audio(HD)
Model :

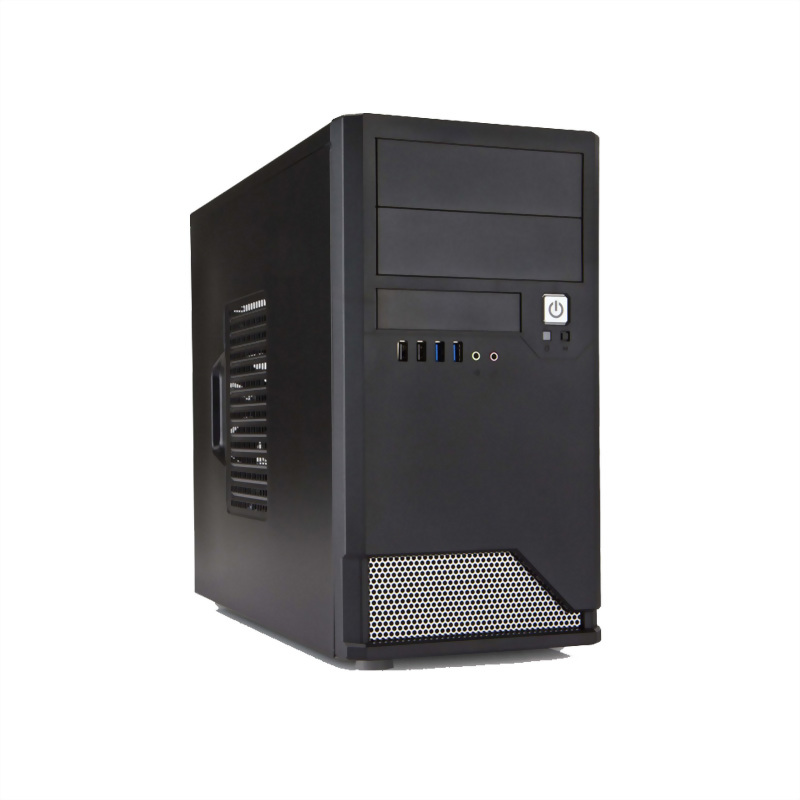

EM048
- Case Size : Mini Tower Chassis
- External Drive Bays : 5.25" x 2, 3.5" x 1
-
Internal Drive Bays : 3.5" x 2, 2.5" x 1
- Front Ports : USB 3.0 x 2 + USB 2.0 x 2 or USB 2.0 x 4, HD Audio
- Dimensions (HxWxD) : 350 ×190 × 380 mm
- w/o Front Panel : 13.8" x 7.5" x 15"
- MB Form Factor : Micro-ATX
- I/O Expansion Slots : PCI-E Expansion Slot x 4
- Power Supply : ATX 12V Form Factor, PSll Size
- Thermal Solution : •Intel Certified TAC 2.0 •Supports 90 or 120mm Rear Fan •Supports 90mm Front Fan
- Safety : Meets RoHS, CE and FCC Class B Requirements
- Security : Padlock Loop / Kensington Slot
-
Optional : •Internal HDD Cage for Extra 3.5" x 2 or 3.5" x 1 & 2.5" x 1 •90 or 120mm Rear Fan •90mm Front Fan •IEEE 1394 (EM001~033 only) •Side Panel Clips •Chassis Intrusion Switch •Tool-Free Drive Bays •USB 3.0 x 2 or USB 2.0 x 2 •3.5” to 2.5” HDD/SSD Bracket •Key Lock Side Panel
