SuperServer 4028GR-TXRT

- Up to 8 NVIDIA® Tesla® P100 SXM2
- Up to 80 GB/s GPU-to-GPU NVIDIA® NVLINK™
- Supports NVIDIA® GPUDirect™ RDMA
Model : SYS-4028GR-TXRT
Product SKUs
SYS-4028GR-TXRT
  • SuperServer 4028GR-TXRT (Black)

Motherboard
Super X10DGO-T

Processor/Cache
CPU
  • Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) *

  • Dual Socket R3 (LGA 2011)
Cores / Cache
  • Up to 22 Cores† / Up to 55MB† Cache
System Bus
  • QPI up to 9.6 GT/s
Note † BIOS version 2.0 or above is required
Note * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.
GPU
  • 8 NVIDIA® Tesla® P100 SXM2
  • NVIDIA® NVLINK™ up to 80GB/s

System Memory
Memory Capacity
  • 24x 288-pin DDR4 DIMM slots
  • Up to 3TB† ECC 3DS LRDIMM, 2TB ECC RDIMM
Memory Type
  • 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
  • RDIMM: 32GB, 16GB, 8GB, 4GB
  • LRDIMM: 64GB, 32GB
  • 3DS LRDIMM: 128GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors

On-Board Devices
Chipset
  • Intel® C612 chipset
SATA
  • SATA3 (6Gbps) with RAID 0, 1, 5, 10
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • Dual Port 10GbE with Intel X540 Ethernet Controller
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Graphics
  • ASPEED AST2400 BMC

Input / Output
SATA
  • 10 SATA3 (6Gbps) ports
LAN
  • 2 RJ45 10GBase-T LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports
Video
  • 1 VGA Connector
Serial Port
  • 1 Serial header

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • DMI 2.3
  • PCI 2.3
  • ACPI 1.0 / 2.0 / 3.0
  • USB Keyboard support
  • SMBIOS 2.7.1
  • UEFI

Chassis
Form Factor
  • 4U Rackmountable
  • Rackmount Kit (MCP-290-31401-0N)
Model
  • CSE-R422BG-2

Dimensions
Height
  • 7.0" (178mm)
Width
  • 17.6" (447mm)
Depth
  • 31.7" (805mm)
Weight
  • Net Weight: 80 lbs (36.2 kg)
  • Gross Weight: 135 lbs (61.2 kg)
Available Colors
  • Black

Drive Bays
Hot-swap
  • 16 Hot-swap 2.5" SATA/SAS drive bays

Expansion Slots
PCI-Express
  • 4 PCI-E 3.0 x16 (low-profile) slots
  • 2 PCI-E 3.0 x8 slots
M.2
  • M.2 Interface: PCI-E 3.0 x4
  • Form Factor: 2260, 2280, 22110

System Cooling
Fans
  • 8x 92mm Cooling Fans
Shrouds
  • 1 Air Shroud (MCP-310-41808-0B)

Power Supply
2200W Redundant Titanium Level Power Supplies with PMBus
Total Output Power
  • 1200W/1800W/1980W/2090W/2200W

    (UL/cUL only)
Dimension

(W x H x L)
  • 106.5 x 82.4 x 203.5 mm
Input
  • 1200W: 100-127 Vac / 14-11 A / 50-60 Hz
  • 1800W: 200-220 Vac / 10-9.5 A / 50-60 Hz
  • 1980W: 220-230 Vac / 10-9.5 A / 50-60 Hz
  • 2090W: 230-240 Vac / 10-9.8 A / 50-60 Hz
  • 2200W: 220-240 Vac / 12-11 A / 50-60 Hz (UL/cUL only)
  • 2090W: 180-220 Vac / 14-11 A / 50-60 Hz (UL/cUL only)
  • 2090W: 230-240 Vdc / 10-9.8 A (CCC only)
+12V
  • Max: 100A / Min: 0A (1200W)
  • Max: 150A / Min: 0A (1800W)
  • Max: 165A / Min: 0A (1980W)
  • Max: 174.17A / Min: 0A (2090W)
  • Max: 183.3A / Min: 0A (2200W)
  • Max: 174.17A / Min: 0A (2090W)
12Vsb
  • Max: 2A / Min: 0A
Output Type
  • Gold Finger (connector on M/P)
Certification Titanium Level96%  Titanium Level

  [ Test Report ]

PC Health Monitoring
CPU
  • Monitors for CPU Cores, +1.2V, 1.5V, +3.3V, +12V, (+3V, 1.0V, 1.2V, 1.8V, 1.1V) Standby, VBAT, Memory, Chipset Voltages.
  • 4-Phase-switching voltage regulator with auto-sense from 0.6V-1.35V
FAN
  • 4-pin fan headers with tachometer status monitoring
  • Low noise fan speed control mode
Temperature
  • Monitoring for CPU and system environment
  • Thermal Control for 8 fan connectors
Other Features
  • Chassis intrusion detection

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:

       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:

       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:

       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:

       5% to 95% (non-condensing)


 - Up to 8 NVIDIA® Tesla® P100 SXM2
 - Up to 80 GB/s GPU-to-GPU NVIDIA® NVLINK™
 - Supports NVIDIA® GPUDirect™ RDMA

1. Dual socket R3 (LGA 2011) supports
    Intel® Xeon® processor E5-2600
    v4†/ v3 family; QPI up to 9.6GT/s
2. Up to 3TB† ECC 3DS LRDIMM , up to
    DDR4- 2400†MHz ; 24 DIMM slots
3. 4 PCI-E 3.0 x16 (low-profile) slots
    2 PCI-E 3.0 x8 (low-profile) slots
    M.2 Interface: PCI-E 3.0 x4
    M.2 Form Factor: 2260, 2280, 22110
4. Dual 10GBase-T LAN with Intel® X540
5. 16 Hot-swap 2.5" SATA/SAS drives;
    Supports 8 NVMe drives
6. 8x 92mm cooling fans

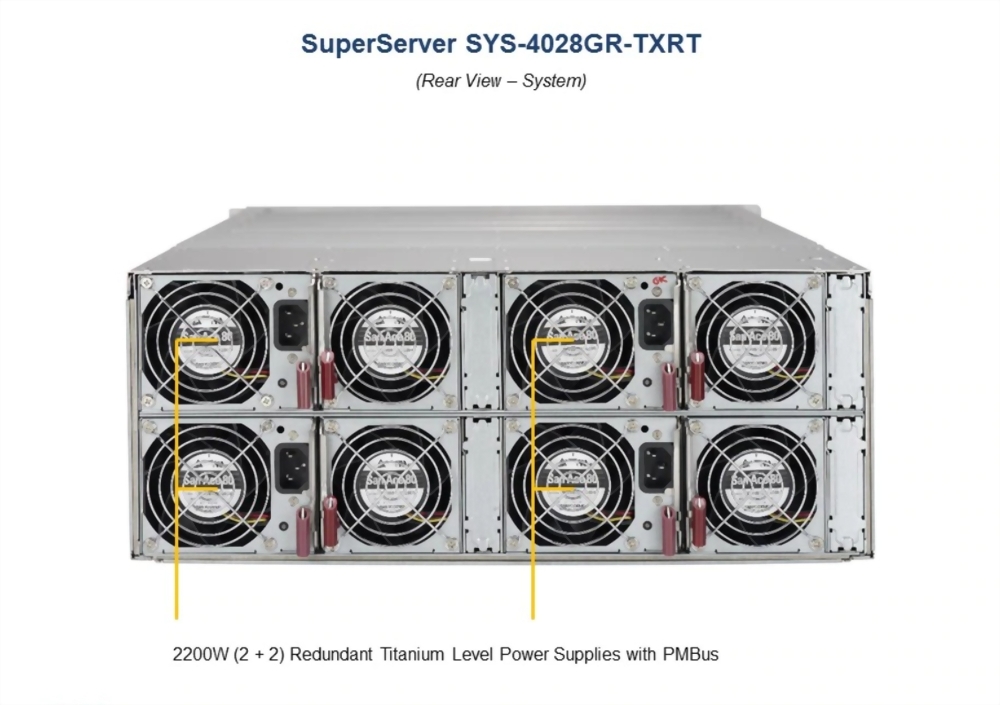

7. 2200W Redundant (2+2) Power
    Supplies; Titanium Level (96%+)
Parts List - (Items Included)


 Part Number

 Qty

 Description
Motherboard / Chassis MBD-X10DGO-T

MBD-X10DGO-SXM-P

CSE-R422BG-2 		1

1

1 		Super X10DGO-T Motherboard

P100 SXM2 GPU Board

CSE-R422BG-2 Chassis
Backplane BPN-MB-R422 1 Pascal 4U midplane, 2U Pascal node on top, and 2U CPU node on bottom. Support 8x fan/power module at rear side.,RoHS
Backplane BPN-SAS3-213A-N8 1 16-port 2U SAS3 12Gbps hybrid backplane, support up to 8x 2.5-inch SAS3/SATA3 HDD/SSD and 8x SAS3/SATA3/NVMe Storage Devices
Cable 1 CBL-0449L 2 HDD power extension for X8OBN, special 8 pin to 4 HDD. 45cm. 18AWG
Cable 2 CBL-PWCD-0174-IS 4 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,14AWG,RoHS/REACH
Cable 3 CBL-PWEX-0979 3 2X4F/GPU-White/P4.2 to TWO 1X4F/P5.08, (5,12V),48/51CM,18AWG
Cable 4 CBL-SAST-0550 2 MINI SAS HD,12G,INT,25CM,30AWG
Cable 5 CBL-SAST-0819 2 OCuLink v 1.0,INT,PCIe NVMe SSD, 65CM,34AWG,RoHS/REACH
Cable 6 CBL-SAST-0974-1 2 OcuLink v 1.0,INT,PCIe NVMe SSD, 37CM,34AWG
Parts MCP-220-42204-0N-PACK 1 Single pack R422BG 2U GPU tray (2U, 8 Pascal / Volta GPU),Ro
Power Supply PWS-2K21A-2R 4 2U 2200W 90-264VAC/47-63Hz, or wide DC input 180Vdc~300Vdc,
Power Supply PWS-DF004-1F 4 12Vdc input redundant FAN module power supports I2C function
Heatsink / Retention SNK-P0048AP4 2 2U Active CPU Heat Sink for Intel R2/R3/B2/B3 and AMD C32
Heatsink / Retention SNK-P4001P 8 2U Passive GPU Heat Sink for NVIDIA SXM2 Module in SYS-4028GR-TXR/TXRT Series Servers
Heatsink / Retention SNK-P4003P 8 2U Passive GPU Heat Sink for NVIDIA Pascal and Volta GPUs in SYS-4028GR-TXR/TXRT Series Servers
Optional Parts List
  Part Number Qty Description
Global Services & Support OS4HR3/2/1

OSNBD3/2/1 		-

- 		3/2/1-year onsite 24x7x4 service

3/2/1-year onsite NBD service
Software SFT-OOB-LIC  1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Optional NVMe Kit
NVMe AOC AOC-SLG3-4E2P-O 1 4 port PLX NVMe PCIe x8 card,HF,RoHS. Support up to 4 NVMe drives
Cable CBL-SAST-0974-1 4 OCuLink v.1.0,INT,x4,PCIe,37 CM,RoHS
NVMe drive Tray MCP-220-00121-0B 4 Black Gen-3 2.5" NVMe drive tray, Orange tab with lock
