WR329-WLAN-LTE Industrial 4G/ LTE Router

Industrial 8+1G port Cellular Ethernet Routing Switch,
802.11ac/n WLAN, LTE-E, FDD B1/3/5/7/8/20, TDD B38/40/41

Model : wr329 wlan lte

Q'ty :

The Innovative and Intelligent LTE routing switch WR329 series is designed to combine functionalities of LTE/WiFi router and 8-Port switch for Smart Bus applications. It can also be used in roadside cabinets or other industrial applications for ultra-resilient high-speed Wi-Fi & multi-port Ethernet ports to LTE routing. The flexible modular design allows project customizations of enable/disable LTE/WiFi Wide Temperature and Ruggedized design allows convenient deployment in existing infrastructure under the harsh conditions.

Technology
Standard	3GPP Release 11 Long Term Evolution (LTE), fallback 3GPP Release 7,8,9 for HSPA/UMTS
	IEEE 802.11ac wireless local area network (WLAN), Backward support 802.11n/g/a/b Wireless LAN
	IEEE 802.3 10Base-TX Ethernet
	IEEE 802.3u 100Base-TX Fast Ethernet
	IEEE 802.3ab 1000Base-T Gigabit Ethernet copper
	IEEE 802.3af/at Power-over-Ethernet
Interface
Ethernet Port	LAN: 8 x 10/100Base-TX RJ45, Auto Negotiation, IEEE 802.3af/at PoE/PoE+ WAN: 1 x 100/1000Base-T RJ45, Auto Negotiation, Auto MDI/MDI-X
System LED	1 x DO: Red On 1 x Power: Green On 1 x SYS: Ready: Green On, Firmware Updating: Green Blinking 1 x WAN: Link: Green On, Activity: Green Blinking 1 x 1000M:WAM port speed, 1000M: Green On, Not 1000M: Off 3 x Radio (Ra, Rb, Rc): Radio status Ra: SIM detected: Green On, SIM not inserted: Off Rb: 4G connection: Green On, 2/3G connection: Green blinking, Disconnected :Off Rc: AP mode: Green On, Station mode connected: Green blinking, Station mode/radio disable :Off
Ethernet Port LED	Link: Green On, Activity: Green Blinking, PoE power feeding: Amber on, PoE power not feeding: Off
USB	1 x USB for Configuration/Firmware Update
Reset	System Reset(2~6 Seconds) / Default Settings Reset (over 7 Seconds)
SMA Connector	Up to 5 x RP-SMA Female, 4 for Wi-Fi/LTE, 1 x GPS
SMA Socket	2 x Nano SIM tray with redundancy
Power Input, Digital Output	4-Pin Removable Terminal Block Connector 2 Pin for Power Input 2 Pin for DO (Relay Alarm) DO: Dry Relay Output with 0.5A /24V DC
Optional Expansion Board	RS232/422/485, Digital Input/ Digital Output, MicroSD card for field application, by request
Cellular Properties (LTE Cat. 4)
Standard	GSM/GPRS/EDGE 3GPP Release 6 UMTS/HSPA 3GPP Release 8 LTE 3GPP Release 11
Data Rate	GPRS: DL: max. 85.6 kbps, UL: max.85.6 kbps EDGE: DL: max. 236.8 kbps, UL: max. 236.8 kbps HSPA: DL: max. 42 Mbps, UL: max. 5.76 Mbps LTE-FDD Cat.4: DL: max. 150 Mbps, UL: max. 50 Mbps, 2x2 DL MIMO LTE-TDD Cat.4: DL: max. 130 Mbps, UL: max. 35 Mbps, 2x2 DL MIMO
Band Information: LTE-E	LTE: FDD B1/B3/B5/B7/B8/B20 (2100/ 1800/ 850/ 2600/ 900/ 800MHz) LTE: TDD B38/B40/B41 (2600/ 2300/ 2500MHz) WCDMA: FDD B1/B5/B8 (2100/ 850/ 900MHz) GSM: B3/B8 (1800/900MHz)
Band Information: LTE-AU	LTE: FDD B1/B2/B3/B4/B5/B7/B8/B28 (2100/ 1900/ 1800/ 1700/ 850/ 2600/ 900/ 700MHz) LTE: TDD B40 (2300MHz) WCDMA: FDD B1/B2/B5/B8 (2100/ 1900/ 850/ 900MHz) GSM: B2/B3/B5/B8 (1900/ 1800/ 850/ 900MHz)
Band Information: LTE-U	LTE FDD: B2/B4/B12 (1900/ 1700/ 700MHz) WCDMA: B2/B4/B5 (1900/ 1700/ 850MHz)
Band Information: LTE-CN	LTE FDD: B1/B3/B5/B8 (2100/ 1800/ 850/ 900MHz) LTE TDD: B38/B39/B40/B41 (2600/ 1900/ 2300/ 2500MHz) TD-SCDMA: B34/B39 (2000/ 1900MHz) WCDMA: B1/B8 (2100/ 900MHz) CDMA: BC0 GSM: 900/1800MHz
Cellular Properties (LTE Cat. 6)
Standard	UMTS/HSPA 3GPP Release 8 LTE 3GPP Release 12 (LTE Cat.6)
Data Rate	TD-SCDMA: DL: Max. 4.2 Mbps, UL: Max. 2.2 Mbps HSPA: DL: Max. 42 Mbps, UL: Max. 5.76 Mbps WCDMA: DL: Max 384Kbps, UL: Max 384Kbps LTE-FDD : DL: Max. 300 Mbps, UL: Max. 50 Mbps, 2x2 DL MIMO LTE-TDD : DL: Max. 226 Mbps, UL: Max. 28 Mbps, 2x2 DL MIMO
Band Information: LTE-E	LTE: FDD B1/B3/B5/B7/B8/B20/B28/B32 (2100/ 1800/ 850/ 2600/ 900/ 800/ 700/ 1500MHz) LTE: TDD B38/B40/B41 (2600/ 2300/ 2500MHz) WCDMA: FDD B1/B5/B8 (2100/ 850/ 900MHz)
Band Information: LTE-U	LTE-FDD: B2/B4/B5/B7/B12/B13/B17/ B25/B26/B29/B30/B66 ( 1900/ 1700/ 700/ 2600/ 700/ 700/ 700/ 1900/ 850/ 700/ 2300/ 1700MHz) LTE-TDD : B41 (2500MHz) WCDMA: B2/B4/B5 (1900/ 1700/ 850MHz)
Band Information: LTE-AP	LTE-FDD: B1/B3/B5/B7/B8/B18/B19/B21/B26 (2100/ 1800/ 850/ 2600/ 900/ 850/ 850/ 1500/ 850MHz) LTE-TDD: B38/B39/B40/B41 (2600/ 1900/ 2300/ 2500MHz) TD-SCDMA: B34/B39 (2000/ 1900MHz) WCDMA: B1/B5/B6/B8/B9/B19 (2100/ 850/ UMTS only/ 900/ 1800/ 850MHz) TD-SCDMA: B39 (1900MHz)
Wi-Fi Properties
Standard	IEEE 802.11ac/a/b/g/n (2T2R) 802.11ac: OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM)
Data Rate	802.11ac: MCS0~9, max. 866Mbps 802.11b: 11Mbps / 802.11a/g: 54Mbps / 802.11n: MCS0~15, max.300Mbps
Frequency	IISM Band, 2.412GHz~2.472GHz, 5.180MHz~5.825MHz(Band 1,4)
MIMO	2T2R, 2xAntennas
RSSI	≦ 20db, compliant with CE request GLONASS: 1597.5~1605.8 MHz BeiDou: 1561.098±2.046 MHz
Output Power & Receive Sensitivity	Operating Frequency: 2.412~2.472GHz Operating Frequency: 5.180G~5.825GHz Max. MIMO: 2T2R
GPS Properties
GNSS	GPS/GLONASS/BeiDou/Galileo
Performance	Cold start: 18s, Warm start: 2.2s, Hot start: 1.8s
Sensitivity	Cold start: -146dBm, Reacquisition: -157dBm, Tracking: -157dBm
Accuracy	< 1.5M
GNSS Frequency	GPS/Galileo: 1575.42±1.023 MHz GLONASS: 1597.5~1605.8 MHz BeiDou: 1561.098±2.046 MHz
Antenna	Frequency range: 1561~1615MHz Polarization: RHCP or linear VSWR: <2 (Typ.) Passive antenna gain: >0dBi
Software
Management Interface	CGI WebGUI, Command Line Interface (CLI), Telnet, SNMP
Usuer Management	Radius client, TACACS+, Local database
Network Time Management	SNTP, Cellular Time
IoT	AWS Agent, Azure Agent, ThingMaster Agent
Network Management	IPv4/IPv6, DDNS, SNMP v1/v2c/v3/Trap, MIB II, Entity MIB, MIBs, DHCP server/client, DHCP relay*, TFTP, System Log, ARP response over 802.2 LLC SNAP, Proxy ARP, DNS (client/proxy)
Traffic Management	NAT Routing, Traffic shaping, 1:1 NAT, NAPT (SNAT/DNAT)
Routing	RIPv2*, Static Route
Security	Firewall, DMZ, Port Forwarding, HTTPs, SSH
Redundancy Protocol	WAN/LTE Redundancy
VPN	IPsec, OpenVPN, L2TP*, GRE
Cellular Configuration	Radio on/off, 4G LTE/3G HSPA Configuration, SIM Security, Connection Status, Cellular to Eth-WAN Redundancy, GPS positioning
WLAN Configuration	WLAN Basic Settings: Radio on/off, 2.4G 11n/5G 11ac Band and Frequency selection, SSID/Multi-SSID configuration, SSID broadcast, Cellular to WLAN Auto Offload and advanced WLAN settings, 802.1X
Utility	ViewMaster, *NetMaster, Ping, Traceroute
Power Requirement
Input Voltage	12/24VDC(8~32VDC)
Reverse Polarity Protect	Yes
Input Current	0.2A@24VDC
Power Consumption	Max 4.8W@24VDC full traffic without PD loading, suggest to reserve 15% tolerance
PoE
Power forwarding mode	Alternative A
PoE Power Budget	System: Max. 120W@70°C/12VDC, Max.60W@70°C/8VDC Per Port: Max. 30W
PoE Standard	IEEE 802.3af/at
Management	PoE Enable/Disable, System/Port Power Budget Control, PD Alive Check, PoE Scheduling, PoE Status
Mechanical
Installation	Wall mount
Enclosure Material	Steel Metal with Aluminum
Dimension	200(W) x 51(H) x 126(D) mm / without Mounting Clip
Ingress Protection	IP31
Weight	~ 1350g without package
Environmental
Operating Temperature & Humidity	-40°C~75°C , 5%~95% Non-Condensing
Storage Temperature	-40°C~85°C
MTBF	>200,000 hours
Warranty	5 years
Approval
Safety	EN60950-1 Compliance
EMC	EN61000-6-2/EN61000-6-4
EMI	CISPR 22, FCC part 15B Class A
Radio	RED Compliance Safety: EN 62368-1 EN 50385/EN62311 MPE assessment EN 301 489-1/17/19/52, EN 55032/55024 EN 300 328/EN 301 893 EN 301 908-1 FCC Part 15B
Railway	EN50121-4 Compliance

High Throughput Wireless Performance
•LTE Cat.4, 2x2 MIMO, 150M downlink and 50M uplink
•4G/3G/2G full cellular network compatibility
     LTE-E:   FDD B1/3/5/7/8/20; TDD B38/40/41
     LTE-AU: FDD B1/B2/B3/B4/B5/B7/B8/B28; TDD B40
    LTE-CN: FDD B1/3/5//8; TDD B38/39/40/41
     LTE-U:   FDD B2/B4/B12
•IEEE 802.11ac compliant & backward compatible with 802.11a/b/g/n
•Selectable 5G/2.4G Wi-Fi for local coverage, up to 866Mbps bandwidth
Multiple Ethernet ports
•Supports 8x Fast Ethernet ports, provides 100M wire-speed switching
•Supports 1x Gigabit Ethernet WAN port for uplink or NVR
•LAN Switch port to LTE or WAN port routing
•WAN to LTE Redundant
Enhanced Cyber Security for Critical Application
•Firewall for traffic classification, port forwarding
•Support NAT, DMZ for LAN protection
•Support OpenVPN, IPsec for secure connection
•Support HTTPs/SSH secure login
Management Features
•Various configuration paths, including WebGUI, CLI and SNMP
•Support ViewMaster Utility, Remote configuration software utility and NetMaster NMS System
•Redundancy: Supports WAN to LET redundancy, wireless auto-offload
•LLDP topology discovery
•Diagnostic tool includes Radio LED, Ping, TFTP, SNMP Trap, E-mail Alert and System Log
•LTE watchdog, auto-reconnect cellular connection
•OPCuA, Cloud monitoring by request

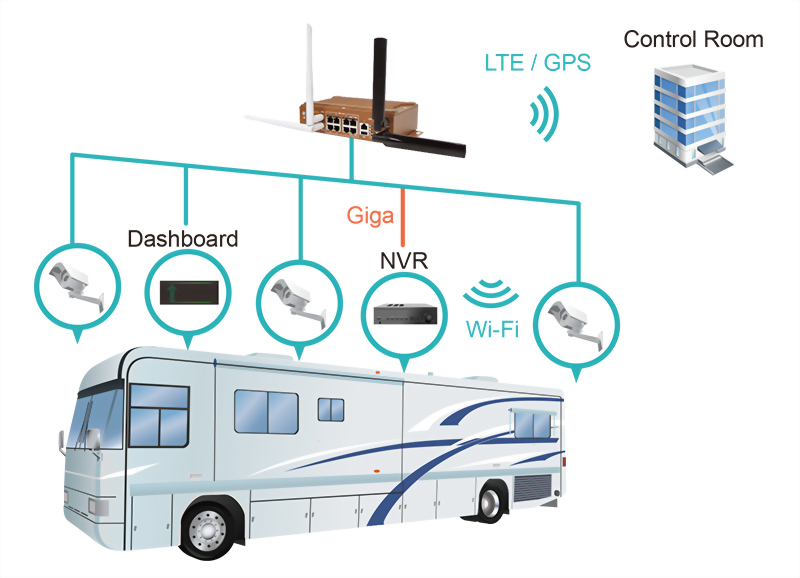

Rugged Design for Bus, Wayside Surveillance, ITS Application
•Railway EMC: EN50121-4 compliance
•IEC61000-6-2/IEC61000-6-4 heavy industrial EMC
•ITS/Traffic Control: NEMA-TS2 compliance
•Vehicle: E-mark compliance
•Radio RED for CE Marking
•Emission: FCC part 15 B Class A
•Effective heat dissipation design for operating in -40~75°C environments

Combine Ethernet Switch + LTE Gateway (DS210 + WR322G)
8 x 10/100Mbps ports
1 x Gigabit WAN for NVR / Uplink
Dual Radio, LTE/GPS + Wi-Fi
Dual SIM & eSIM supported
Seamless Wi-Fi Auto-offload

Ordering Information
Model Name
WR309	Industrial 8+1G port Routing Switch, USB
WR309P	Industrial 8+1G port PoE Routing Switch, USB
WA329	Industrial 8+1G port Wireless AP/Client, USB, Dual 802.11ac/n WLAN
WA329P	Industrial 8+1G port PoE Wireless AP/Client, USB, Dual 802.11ac/n WLAN
WR329-WLAN+LTE-E	Industrial 8+1G port Cellular Ethernet Routing Switch, USB, 802.11ac/n WLAN, LTE-E, 2SIM, GPS, FDD B1/3/5/7/8/20, TDD B38/40/41
WR329-WLAN+LTE-CN	Industrial 8+1G port Cellular Ethernet Routing Switch, USB, 802.11ac/n WLAN, LTE-CN, 2SIM, GPS,FDD B1/B3/B5/B8, TDD B38/B39/B40/B41
WR329-WLAN+LTE6-E	Industrial 8+1G port Cellular Ethernet Routing Switch, USB, 802.11ac/n WLAN, LTE-E, 2SIM, GPS,FDD B1/3/5/7/8/20/28/32, TDD B38/40/41
WR329P-WLAN+LTE-E	Industrial 8+1G port Cellular PoE Routing Switch, USB, 802.11ac/n WLAN, LTE-E, 2SIM, GPS, FDD B1/3/5/7/8/20,TDD B38/40/41
WR329P-WLAN+LTE-CN	Industrial 8+1G port Cellular PoE Routing Switch, USB, 802.11ac/n WLAN, LTE-CN, 2SIM, GPS,FDD B1/B3/B5/B8, TDD B38/B39/B40/B41
WR329P-WLAN+LTE6-E	Industrial 8+1G port Cellular PoE Routing Switch, USB, 802.11ac/n WLAN, LTE-E, 2SIM, GPS, FDD B1/3/5/7/8/20/28/32, TDD B38/40/41
	Embedded SIM by request LTE-AU/LTE-U Cat.4 by request LTE-AP/LTE-U Cat.6 by request Dual LTE concurrent by request
	Package List
	1 x Product Unit
	1 x 4-pin Removable Terminal Block Connector
	1 x Quick Installation Guide
