| Product SKUs | | AS -1015SV-WTNRT | | Motherboard | | Super H13SVW-NT | | Processor | | CPU | - Single processor(s)
- AMD EPYC™ 8004 Series Processor
| | Core Count | | | Note | - Supports up to 225W TDP CPUs (Air Cooled)
| | GPU | | Max GPU Count | - Up to 1 double-width or 2 single-width GPUs
| | Supported GPU | | | System Memory | | Memory | - Slot Count: 6 DIMM slots
- Max Memory (1DPC): Up to 768GB 4800MT/s ECC DDR5 RDIMM
- View Memory Options
| | Memory Voltage | | | On-Board Devices | | Network Connectivity | - 2 RJ45 10GBASE-T with Broadcom® BCM57416
- View AOC Options

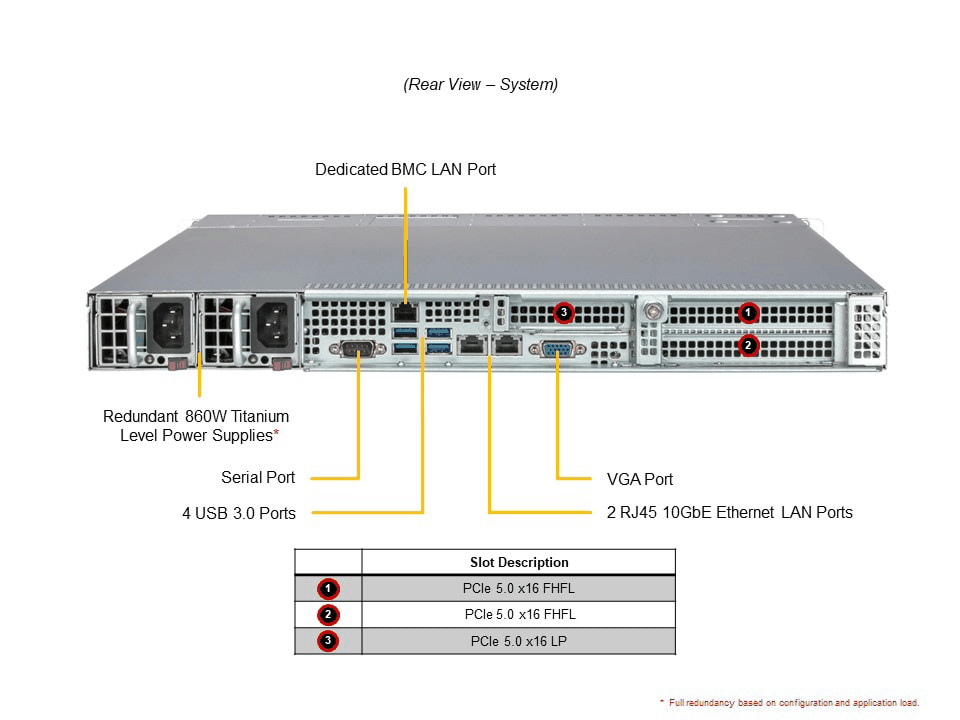

| | Input / Output | | LAN | - 1 RJ45 1 GbE Dedicated BMC LAN port
- 2 RJ45 10 GBASE-T LAN ports
| | USB | | | Video | | | Serial | | | TPM | | | System BIOS | | BIOS Type | - AMI 32MB SPI Flash EEPROM
| | BIOS Features | - ACPI 6.4
- Plug and Play (PnP)
- SMBIOS 3.5 or later
- UEFI 2.8
- USB Keyboard support
| | Management | | Software | | | Power configurations | - 1U redundant 800/860W Titanium AC power supply
| | Security | | Hardware | - Trusted Platform Module (TPM) 2.0
- Silicon Root of Trust (RoT) – NIST 800-193 Compliant
| | Features | - Cryptographically Signed Firmware
- Secure Boot
- Secure Firmware Updates
- Automatic Firmware Recovery
- Supply Chain Security: Remote Attestation
- Runtime BMC Protections
- System Lockdown
| | PC Health Monitoring | | FAN | - Fans with tachometer monitoring
- Pulse Width Modulated (PWM) fan connectors
- Status monitor for speed control
| | Temperature | - Monitoring for CPU and chassis environment
- Thermal Control for fan connectors
| | Certifications | | Operating Systems | |
| | | Chassis | | Form Factor | | | Model | | | Dimensions and Weight | | Height | | | Width | | | Depth | | | Package | - 8.5" (H) x 23.5" (W) x 33.7" (D)
| | Weight | - Gross Weight: 34.5 lbs (15.46 kg)
- Net Weight: 21.5 lbs (9.75 kg)

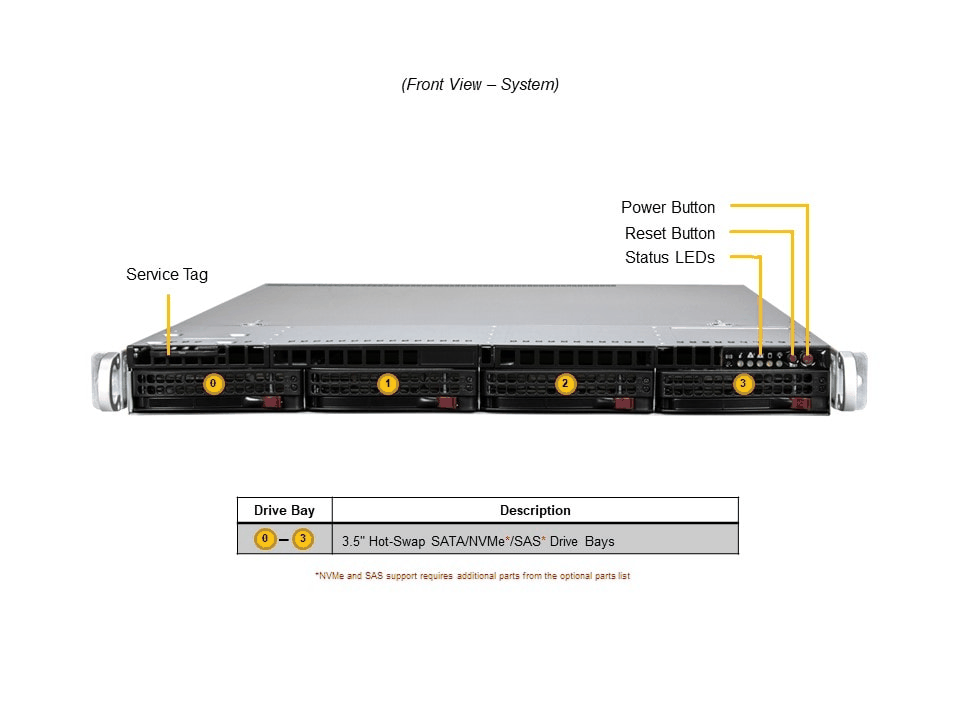

| | Available Color | | | Front Panel | | Buttons | - Power On/Off button
- System Reset button
- Unit Identification (UID) button
| | LED | - Fan Fail/System Over Heat LED
- HDD activity LED
- Network Activity LEDs
- Power status LED
- Unit Identification (UID) LED
| | Expansion Slots | | PCI-Express (PCIe) Configuration | - Default
- 2 PCIe 5.0 x16 FHFL slots
- 1 PCIe 5.0 x16 LP slot
- View AOC Options
| | Drive Bays / Storage | | Drive Bays Configuration | - Default: Total 4 bays
- 4 front hot-swap 3.5" NVMe*/SAS*/SATA drive bays
- (*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
- View NVMe Options
- View Drive Options
| | M.2 | | | System Cooling | | Fans | - Up to 6 Heavy duty counter-rotating 40x40x56mm Fan(s)
| | Air Shroud | | | Power Supply | | | 2x 860W Redundant (1 + 1) Titanium Level (96%) power supplies | | Dimension (WxHxL) | 54.5 x 40.25 x 322 mm | | Input | 800W: 100-127Vac / 50-60Hz
860W: 200-240Vac / 50-60Hz
860W: 240Vdc / 50-60Hz | | +12V | Max: 66.67A / Min: 0A (100Vac-127Vac)
Max: 71.67A / Min: 0A (Vdc-240Vdc)
Max: 71.67A / Min: 0A (200Vac-240Vac) | | 5V SB | Max: 4A / Min: 0A | | Output Type | Backplanes (gold finger) | | Operating Environment | | Environmental Spec. | - Operating Temperature: 10°C to 35°C (50°F to 95°F)
- Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
- Operating Relative Humidity: 8% to 80% (non-condensing)
- Non-operating Relative Humidity: 8% to 90% (non-condensing)
|
|
For detailed specifications, options, and compatibility, please refer to the latest official Supermicro documentation and the actual quotes/specifications from Autech.
-
Single Socket AMD EPYC™ 8004 Series Processor
-
6 DIMM slots, DDR5-4800MHz memory, support up to 768GB
-
2 PCIe 5.0 x16 FHFL;
1 PCIe 5.0 x16 LP
-
Single dedicated IPMI LAN, dual 10GbE BaseT LAN ports via Broadcom BCM57416 Controller
-
4 hot-swap 3.5" drive bays support SATA(default)/NVMe/SAS drives (optional cables or SAS controller card for NVMe and SAS drive bays)
-
Dual 860W Redundant Titanium Level power supplies
(Power supply full redundancy based on configuration and application load)
- Virtualization
- Firewall Applications
- Edge/Cloud Computing Services
- Data Center Optimized
- Database/Storage
