| Product SKUs | | AS -1124US-TNRP | | Motherboard | | Super H12DSU-iN | | Processor | | CPU | - Dual Socket SP3
- AMD EPYC™ 7002/7003 Series Processors
| | Core Count | | | Note | - Supports up to 280W TDP CPUs (Air Cooled)
| | System Memory | | Memory | - Slot Count: 32 DIMM slots/8 Channels
- Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
- View Memory Options
| | Memory Voltage | | | On-Board Devices | | SATA | | | Network Connectivity | - 2 RJ45 10GbE
- 2 SFP+ 10GbE
- View Network Card (AOC) Options
- View AOC Options
| | IPMI | - Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
| | Input / Output | | LAN | - 1 RJ45 1 GbE Dedicated BMC LAN port
| | USB | | | Video | | | TPM | | | System BIOS | | BIOS Type | - AMI 32MB SPI Flash EEPROM
| | BIOS Features | - Plug and Play (PnP)
- USB Keyboard support
- ACPI 5.1
- DMI 2.3
- PCI 2.2
- SMBIOS 3.1.1
| | Management | | Software | - Redfish API
- Supermicro Server Manager (SSM)
- Supermicro Power Manager (SPM)
- Supermicro Update Manager (SUM)
- Supermicro SuperDoctor® 5 (SD5)
- KVM with dedicated LAN
- IPMI 2.0
- OOB Management Package (SFT-OOB-LIC )
| | Power configurations | - ACPI Power Management
- Power-on mode control for AC power loss recovery
| | Security | | Hardware | - Trusted Platform Module (TPM) 2.0
- Silicon Root of Trust (RoT) – NIST 800-193 Compliant
| | Features | - Cryptographically Signed Firmware
- Secure Boot
- Secure Firmware Updates
- Automatic Firmware Recovery
- System Lockdown
| | PC Health Monitoring | | CPU | - 4+1 Phase-switching voltage regulator
- Monitors for CPU Cores, Chipset Voltages, Memory
| | FAN | - Fans with tachometer monitoring
- Pulse Width Modulated (PWM) fan connectors
- Status monitor for speed control
| | Temperature | - Monitoring for CPU and chassis environment
- Thermal Control for fan connectors
|
| | | Chassis | | Form Factor | | | Model | | | Dimensions and Weight | | Height | | | Width | | | Depth | | | Package | - 7.99" (H) x 23.81" (W) x 37.4" (D)
| | Weight | - Gross Weight: 48 lbs (21.8 kg)

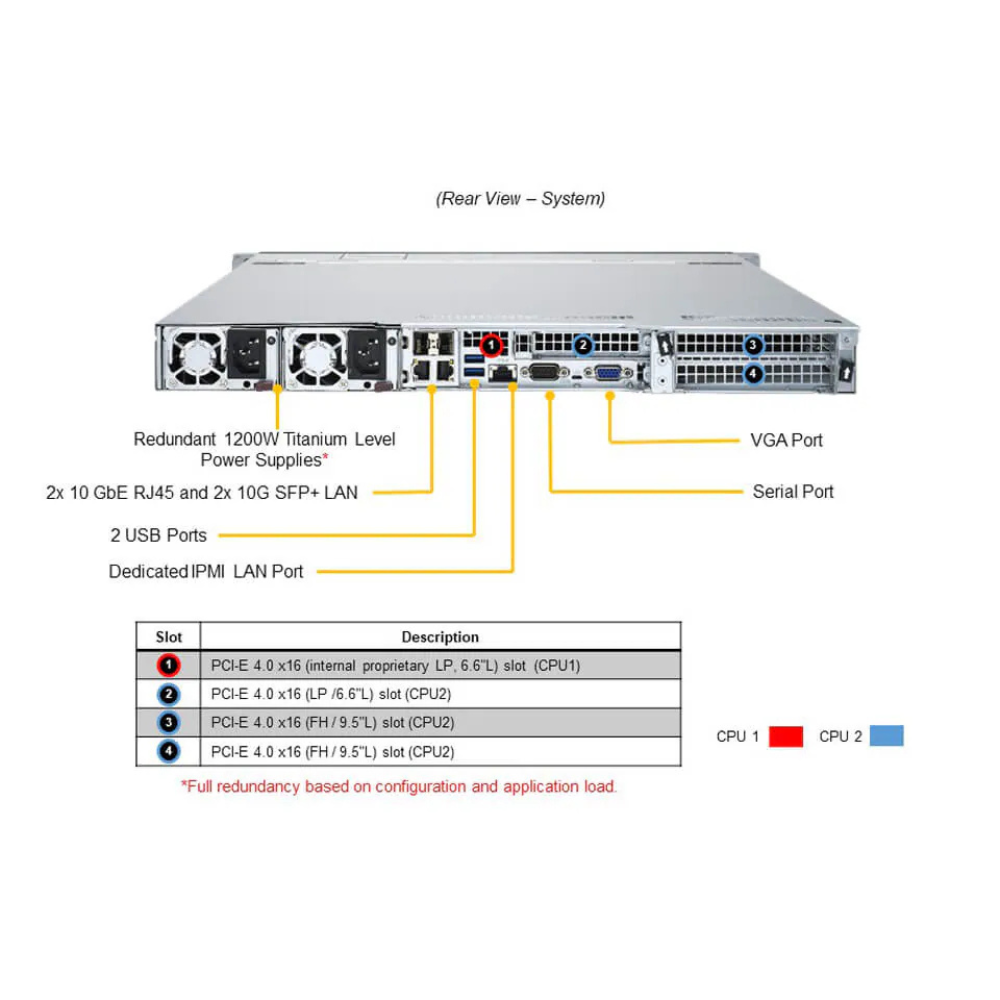

| | Available Color | | | Expansion Slots | | PCI-Express (PCIe) Configuration | - Default
- 1 PCIe 4.0 x16 LP slot
- 1 PCIe 4.0 x16 INTERNAL slot
- 2 PCIe 4.0 x16 FH/HL, 9.5"L slots
- View AOC Options

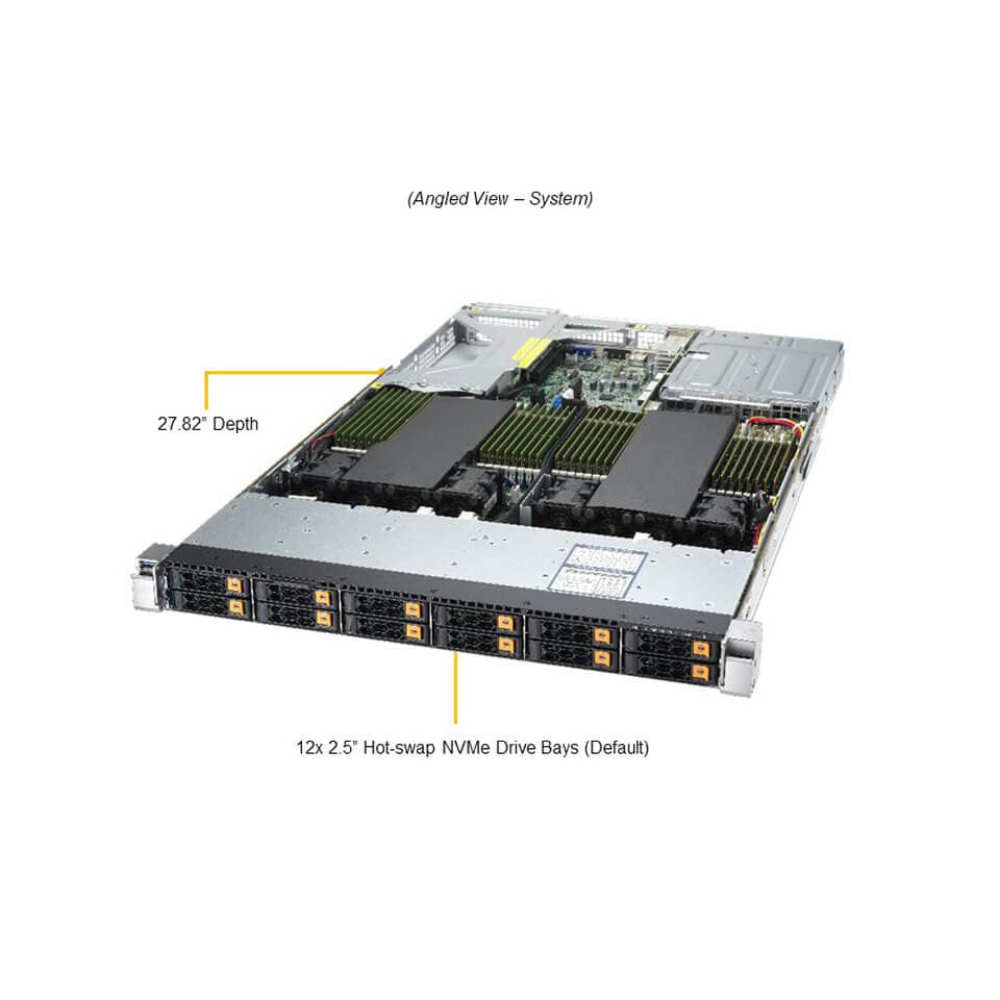

| | Drive Bays / Storage | | Drive Bays Configuration | - Default: Total 12 bays
- 12 front hot-swap 2.5" NVMe/SAS*/SATA* drive bays
- (*SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
- View NVMe Options
- View Drive Options
| | System Cooling | | Fans | - Up to 8 heavy duty fans with optimal fan speed control
| | Air Shroud | | | Power Supply | | | 2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies | | Dimension (WxHxL) | 73.5 x 40 x 203 mm | | Input | 800W: 100-127Vac 800W: 100-127Vac / 50-60Hz 1200W: 200-240Vdc (For CCC Only) 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only) | | +12V | Max: 66.7A / Min: 0A (100Vac-127Vac) Max: 100A / Min: 0A (200Vac-240Vac) Max: 100A / Min: 0A (200Vdc-240Vdc) Max: 100A / Min: 0A (200Vdc-240Vdc) (For CCC Only) | | 12V SB | Max: 2.1A / Min: 0A | | Output Type | Backplanes (gold finger) | | Operating Environment | | ROHS | | | Environmental Spec. | - Operating Temperature: 10°C to 30°C (50°F to 86°F)
- Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
- Operating Relative Humidity: 8% to 90% (non-condensing)
- Non-operating Relative Humidity: 5% to 95% (non-condensing)
|
|
For detailed specifications, options, and compatibility, please refer to the latest official Supermicro documentation and the actual quotes/specifications from Autech.
-

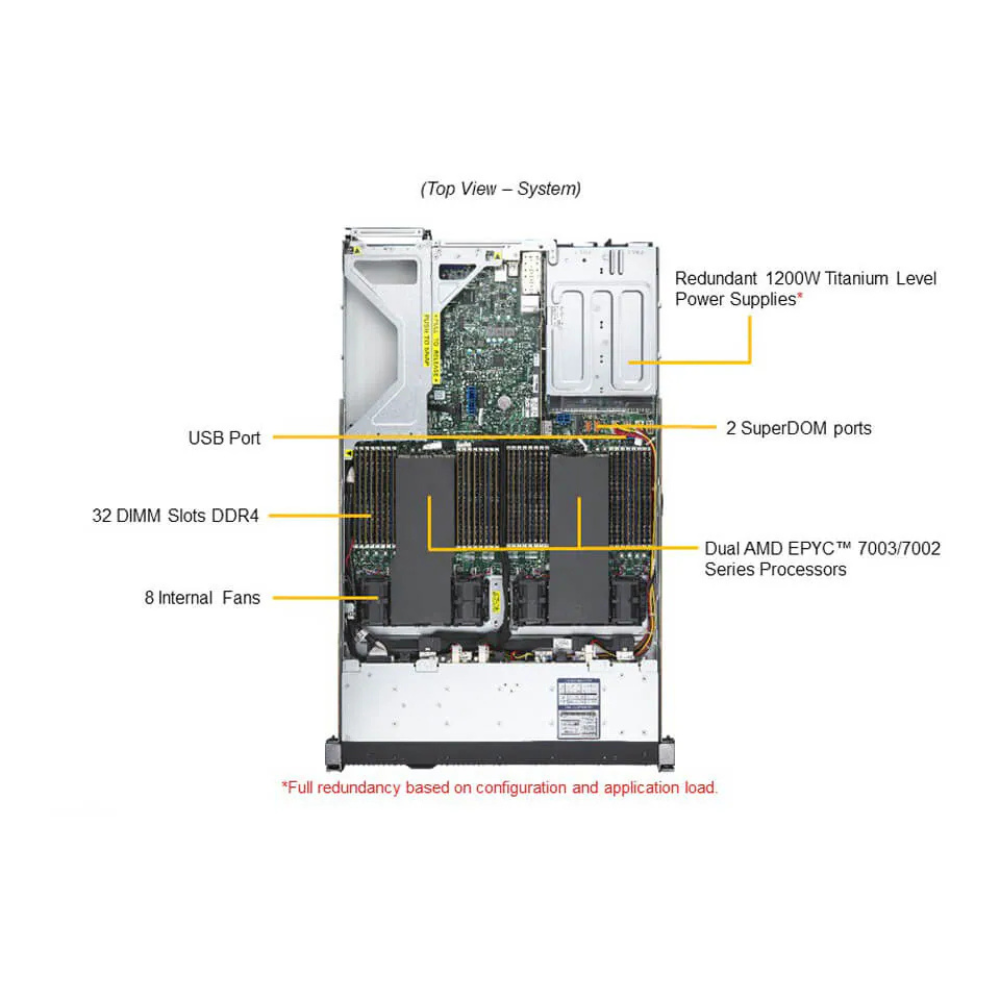

Dual AMD EPYC™ 7003/7002 Series Processors
(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
-
8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs
-
2 PCIe 4.0 x16 FH, 9.5"L,
1 PCIe 4.0 x16 LP,
1 PCIe 4.0 x16 (internal proprietary LP slot)
-
Dual-port 10GBase-T and Dual-port 10G SFP+ via Intel X710-TM4
-
12 Hot-swap 2.5" NVMe drive bays
or SATA3/SAS3 (via optional SAS kit)
- Virtualization
- High End Enterprise Server
- Cloud Computing
