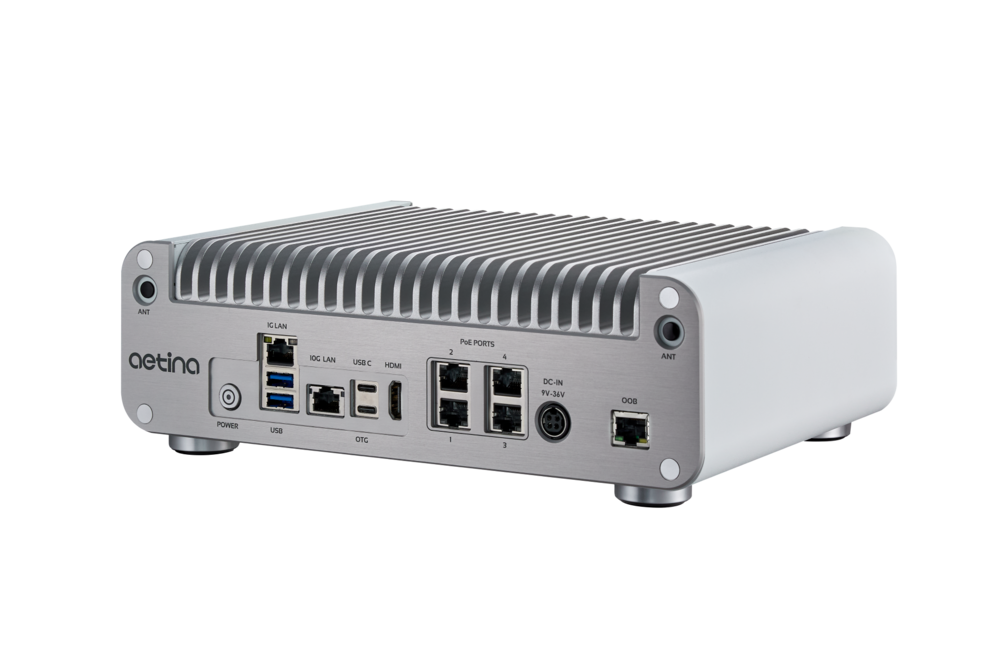

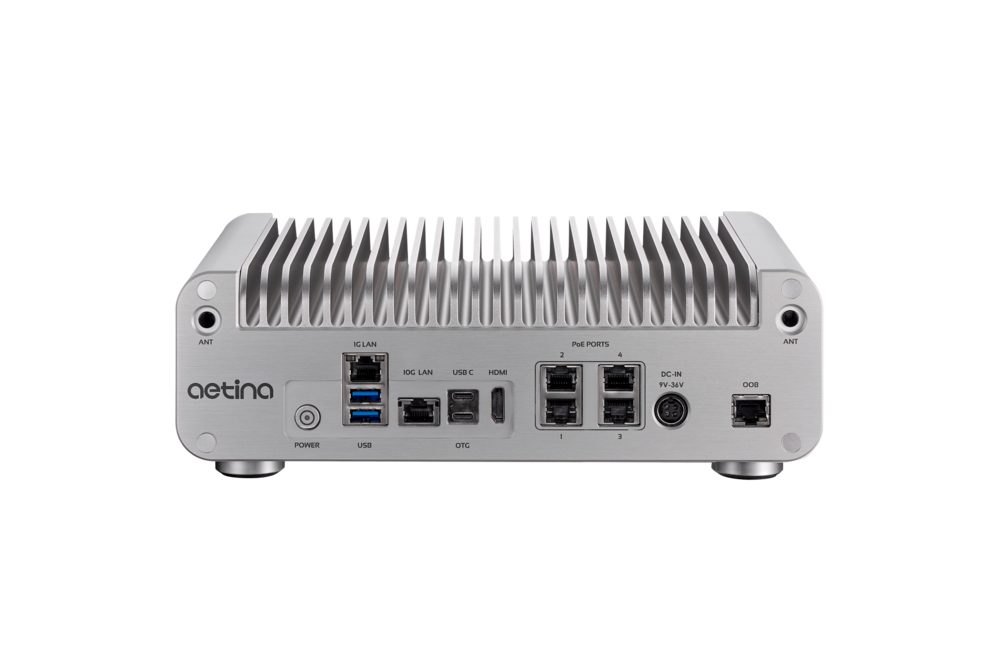

AIE-PX11/12/21/22
• Supports NVIDIA Jetson AGX Orin™ 32GB/64GB module
• 2/4 x IEEE 802.3af GbE PSE ports
• 1 x GbE port, 1 x 10GbE port
• 1 x M.2 B-Key, 1 x M.2 E-Key, 1 x M.2 M-Key slot
• Wide input voltage range from 9 to 36 VDC
• Operating Temperature -25°C ~ +55°C
• Fanless Design
• 2/4 x IEEE 802.3af GbE PSE ports
• 1 x GbE port, 1 x 10GbE port
• 1 x M.2 B-Key, 1 x M.2 E-Key, 1 x M.2 M-Key slot
• Wide input voltage range from 9 to 36 VDC
• Operating Temperature -25°C ~ +55°C
• Fanless Design
Model :
AIE-PX11/12/21/22
| ● 8 x AI performance enables AI inference with low latency |
| NVIDIA Jetson AGX Orin module offers up to 275 TOPS, 8 times more than NVIDIA Jetson AGX Xavier™ 32GB module. Built in 2048 NVIDIA CUDA® cores and 64 Tensor Cores, NVIDIA Jetson AGX Orin 64GB module enables server-class AI inference at the edge with low latency. |
| ● Comprehensive M.2 expansion, PSE and LAN ports |
| AIE-PX11/12/21/22 are fanless systems with high expansion ability, built in 1x M.2 B-Key for LTE/5G, 1x M.2 E-Key for Wifi/BT and 1x M.2 M-Key for storage. For network, on-board 2 or 4x PSE ports support 2 or 4x POE cameras, and 1x10GbE port offers data speeds up to 10 billion bits per second, 10 times faster than traditional GbE standard. |
| ● Wide input power and fanless design for smart city and smart agriculture |
|
To cater to diverse applications, such as smart city and smart agriculture, where cost-effective maintenance and improved reliability are crucial, AIE-PX11/12/21/22 have been specifically designed with a fanless and silent mechanism. These systems are capable of operating within a wide temperature range of -25°C to 55°C. Additionally, they support a wide input power range from 9 to 36 VDC, enabling flexible power supply options. |
| Model Number | AIE-PX11 | AIE-PX12 | AIE-PX21 | AIE-PX22 |
| Module Compatibility | NVIDIA Jetson AGX Orin 32GB | NVIDIA Jetson AGX Orin 64GB | ||
| AI Performance | 200 TOPS | 275 TOPS | ||
| GPU | 1792-core NVIDIA Ampere GPU with 56 Tensor Cores | 2048-core NVIDIA Ampere GPU with 64 Tensor Cores | ||
| CPU | 8-core Arm® Cortex® -A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 | 12-core Arm® Cortex® -A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3 | ||
| Memory | 32GB 256-bit LPDDR5 204.8 GB/s | 64GB 256-bit LPDDR5 204.8 GB/s | ||
| Storage | 64GB eMMC 5.1 | |||
| Display | 1 x HDMI 2.0 Type A | |||
| TPM | TPM v2.0 (optional) | |||
| LAN | 1 x RJ-45 GbE, 1 x RJ-45 10GbE | |||
| PoE Interface |
2 x RJ-45 GbE PSE (IEEE 802.3af compliant, Power Output 15W/Port)* |
4 x RJ-45 GbE PSE (IEEE 802.3af compliant, Power Output 15W/Port)* |
2 x RJ-45 GbE PSE (IEEE 802.3af compliant, Power Output 15W/Port)* |
4 x RJ-45 GbE PSE (IEEE 802.3af compliant, Power Output 15W/Port)* |
| *PSE Port 1 & Port 2 support IEEE 802.3at compliant; Total PSE ports support up to 60W | ||||
| USB | 2 x USB 3.2 Gen1 Ty pe A, 1 x USB 2.0 (DB-15), 1 x OTG Ty pe-C, 1 x USB 3.2 Gen2 Ty pe-C/td> | |||

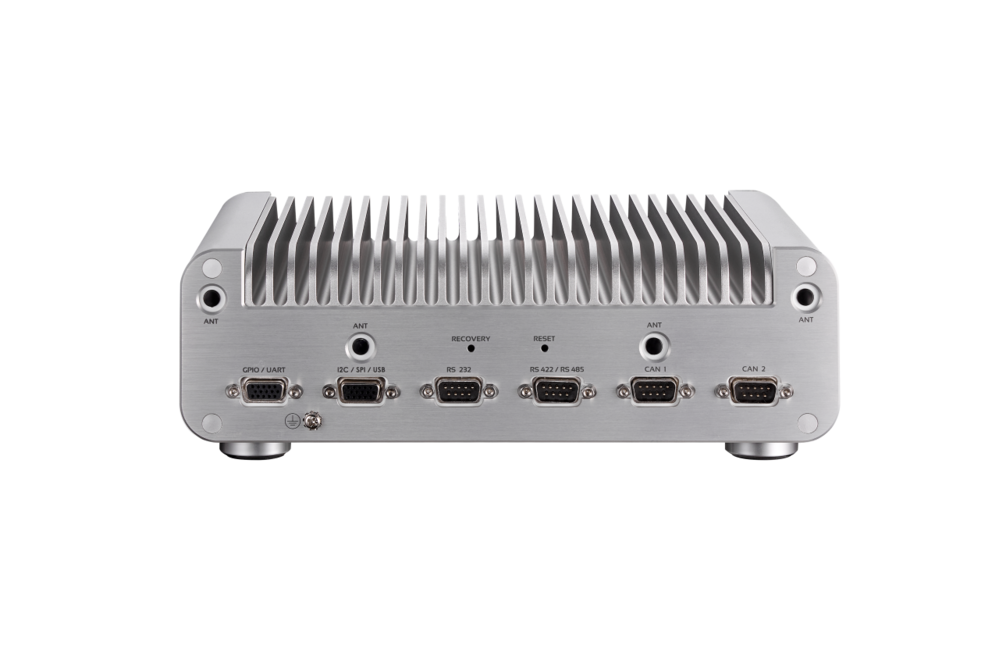

| I/O Interfaces |
2 x I2C, 1 x SPI, 5 x GPIO, 2 x UART, 1 x RS-232, 1 x RS-422/485 (2-in-1), 2 x CAN 2.0b (isolation; support CAN FD), 1 x microSIM Card Slot, 1 x OOB (optional) |
|||
| Expansion |
1 x M.2 B-Key 3042/3052 (LTE/4G/5G) 1 x M.2 E-Key 2230 (WiFi/BT) 1 x M.2 M-Key 2280 (supports NVMe; PCIe x2 Gen3) 1 x microSD Card Slot |
|||
| MISC. Function | 1 x Power / 1 x Recovery / 1 x Reset Button | |||
| Power Input/Connector | DC-in 9 to 36 VDC / 4-Pin DC Jack Power Connector | |||
| Power Consumption |
Idle: 7.5 W Full Loading: 109* W |
Idle: 8 W Full Loading: 130* W |
||
| *For more test condition information, please refer to user manual | ||||
| Dimension (WxDxH) | 270 x 195 x 80 mm (10.63 x 7.67 x 3.15 in) | |||
| Mounting | Wall Mount (optional) / Din Rail (optional) | |||
| Net Weight | 4.3 kg (9.48 lb) | |||
| Vibration | 1 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis | |||
| Shock | 10 G, IEC 60068-2-27, half sine, 11 ms duration | |||
| Temperature |
Operating Temperature: -25°C ~ +55°C (-13°F ~ +131°F) with 0.5 m/s airflow Storage Temperature: -40°C ~ +85°C (-40°F ~ +185°F) |
|||
| Humidity | 95% @ 40°C (104°F) (non-condensing) | |||
| Software Support | Linux (Support Jetpack 5.0 above) | |||
| Certification | CE / FCC Class A / UKCA | |||
