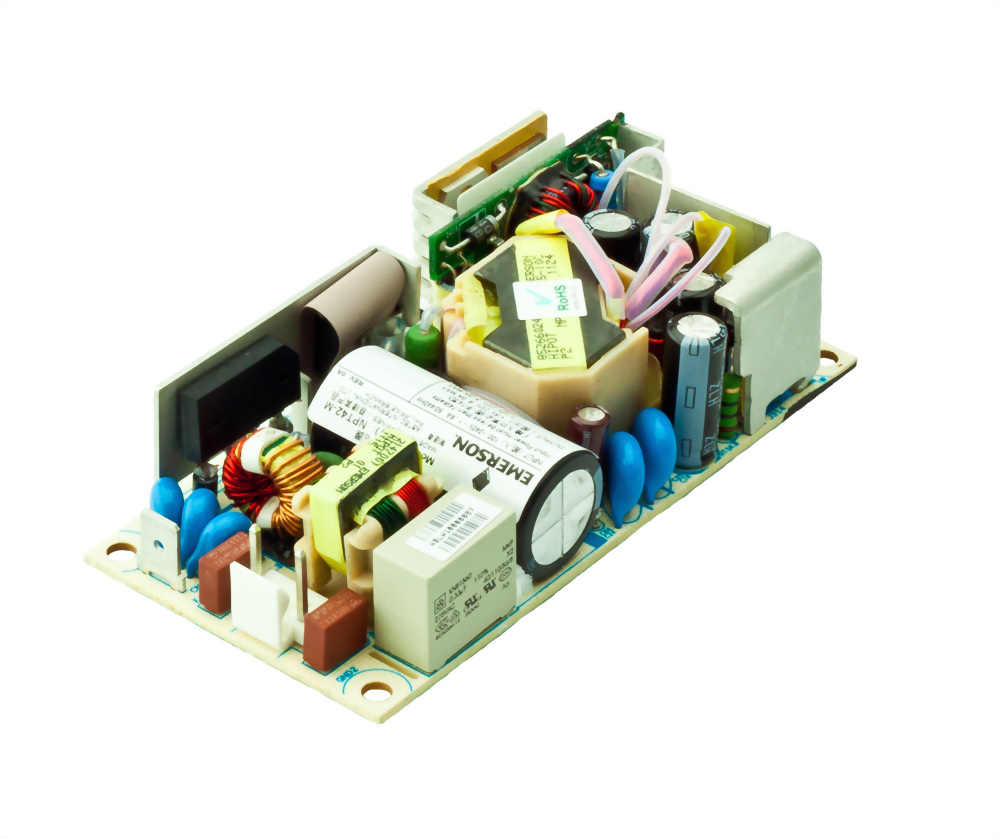

• NPT40-M Series

NPT40-M Series

- Comprises three triple output models
- Covering a variety of standard voltages from 3.3 V to 24 Vdc.
Model : npt40-m series

Each model accepts a universal input of 90 to 264 Vac or 127 to 300 Vdc. All models feature ITE and medical safety approvals. The series is primarily intended for use in information technology equipment (ITE) and light industrial systems, as well as for equipment intended for non-patient contact and non-patient critical use in low power medical, dental and laboratory applications.

Total Max Power:

55 W

Output Voltage:

-15 V to 24 V

Warranty:

2 years

Total Max Current:

8 A

Outputs:

Triple

Operating Temperature:

-20° C to 80° C

Input Voltage:

90 V to 264 V

Size (L x W x H):

4.000" x 2.000" x 1.000"


  • Medical and ITE safeties
  • Universal input
  • 2 x 4 x 1U form factor
  • Overload and short circuit protection
  • High MTBF



  • Built-in Class B EMI filter
  • EN61000-3-2 compliant
  • Class I and II approved
  • Enclosure kit available
  • Dual AC fuses
