• N-630 PCIe 4-Port SFP Gigabit Network Adapter

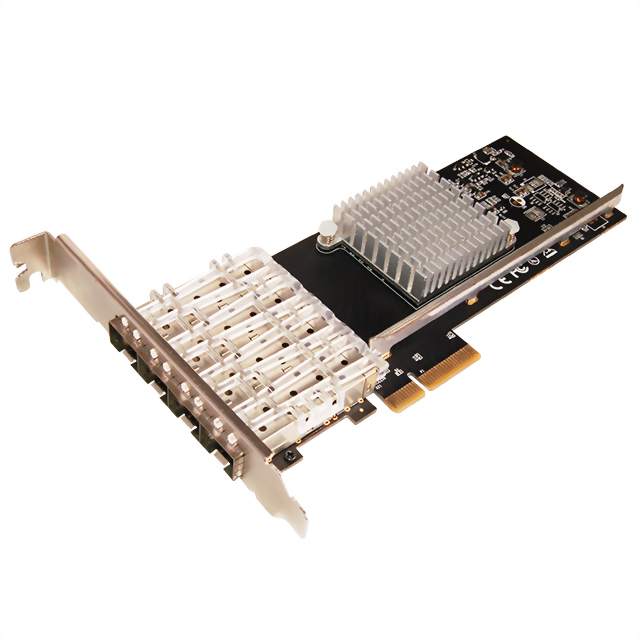

N-630 PCIe 4-Port SFP Gigabit Network Adapter

This PCIe 4-Port SFP Gigabit Network Adapter This card a high-performance PCI Express Ethernet adapter that delivers up to 1000 MB/s Ethernet over twisted-pair category 5 or better cabling.
Part No: NE-D15-1430-00-00012
Model : N-630

Using the SPF transceiver of your choice, you can connect your PCI Express-based server or workstation directly to your 1G fiber optic network.


Features

Quad port full height 1G adapter

Supports common 1G SFP optical and Direct Attached Copper modules

EEE (Energy Efficient Ethernet)

Up to 9K Jumbo Frames

IP, TCP and UPD checksum offloading (IPv4, IPv6) capabilities

Designed to meet PCI Express Specification Revision 3.0

Eight lane (x8) PCI Express compatible with x8 and x16 PCI

Express slots

IEEE 802.1Q Tagged VLAN

Intel PROSet Utility for Microsoft Device Manager



Requirements

Hardware

The following system specs are recommended minimum

PCIe slot: Available 8-Lanes PCI-Express slot gen 2.0 or later

Processor: Quad Core 3.0GHz or higher

RAM: 4GB memory or higher

Software
Operating systems supported (32/64 bits)

Windows 7/8.1/10

Windows Server 2008 R2/2012R2/2016

Linux 3.16 or later



Package Contents

1 x PCIe 4-Ports SFP Gigabit Network Adapter

1 x Driver CD

1 x User Manual
