Product SKUs
|
|

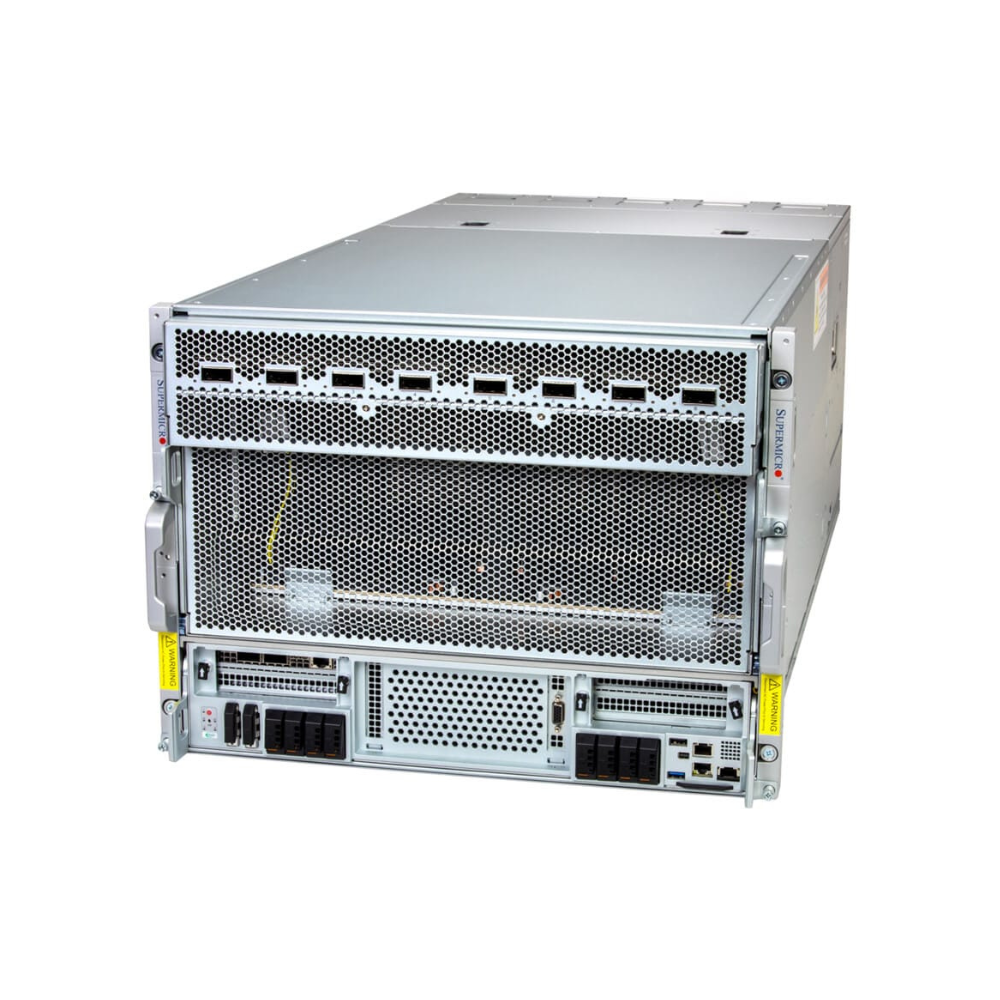

AS -8126GS-NB3RT
|
|
AS -8126GS-NB3RT-01-G2 Gold Series version with pre-configured components
|
|
Motherboard
|
|
Super H14DSG-OM
|
|
Processor
|
|
CPU
|
-
Dual processor(s)
-
AMD EPYC™ 9005/9004 Series Processors
|
|
Core Count
|
|
|
Note
|
-
Supports up to 500W TDP CPUs
|
|
GPU
|
|
Max GPU Count
|
|
|
Supported GPU
|
-
NVIDIA SXM: HGX B300 8-GPU (288GB)
-
View GPU Options
|
|
GPU-GPU Interconnect
|
-
NVIDIA® NVLink™ with NVSwitch™
|
|
System Memory
|
|
Memory
|
-
Slot Count: 24 DIMM slots
-
Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor)
-
Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor)
-
View Memory Options
|
|
Memory Voltage
|
|
|
On-Board Devices
|
|
Network Connectivity
|
-
8 OSFP 800GbE
-
2 RJ45 10GbE
-
View AOC Options
|
|
Input / Output
|
|
USB
|
-
1 USB 3.0 Type-A port(Front)
-
1 USB 2.0 Type-A port(Front)
|
|
Video
|
-
1 VGA port
-
1 mini-DP port
|
|
System BIOS
|
|
BIOS Type
|
|
|
Management
|
|
Software
|
-
SuperCloud Composer®
-
Supermicro Server Manager (SSM)
-
Super Diagnostics Offline (SDO)
-
Supermicro Thin-Agent Service (TAS)
-
SuperServer Automation Assistant (SAA) New!
|
|
Power configurations
|
-
Power-on mode for AC power recovery
-
ACPI Power Management
|
|
Security
|
|
Hardware
|
-
Trusted Platform Module (TPM) 2.0
-
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
|
|
Features
|
-
Cryptographically Signed Firmware
-
Secure Boot
-
Secure Firmware Updates
-
Automatic Firmware Recovery
-
Supply Chain Security: Remote Attestation
-
Runtime BMC Protections
-
System Lockdown
|
|
PC Health Monitoring
|
|
CPU
|
-
8+4 Phase-switching voltage regulator
-
Monitors for CPU Cores, Chipset Voltages, Memory
|
|
FAN
|
-
Fans with tachometer monitoring
-
Pulse Width Modulated (PWM) fan connectors
-
Status monitor for speed control
|
|
Temperature
|
-
Monitoring for CPU and chassis environment
-
Thermal Control for fan connectors
|
|
|
|
Chassis
|
|
Form Factor
|
|
|
Model
|
|
|
Dimensions and Weight
|
|
Height
|
|
|
Width
|
|
|
Depth
|
|
|
Package
|
-
26.38" (H) x 28.74" (W) x 50.39" (D)
|
|
Weight
|
-
Gross Weight: 302 lbs (137 kg)
-
Net Weight: 263 lbs (119 kg)
|
|
Available Color
|
|
|

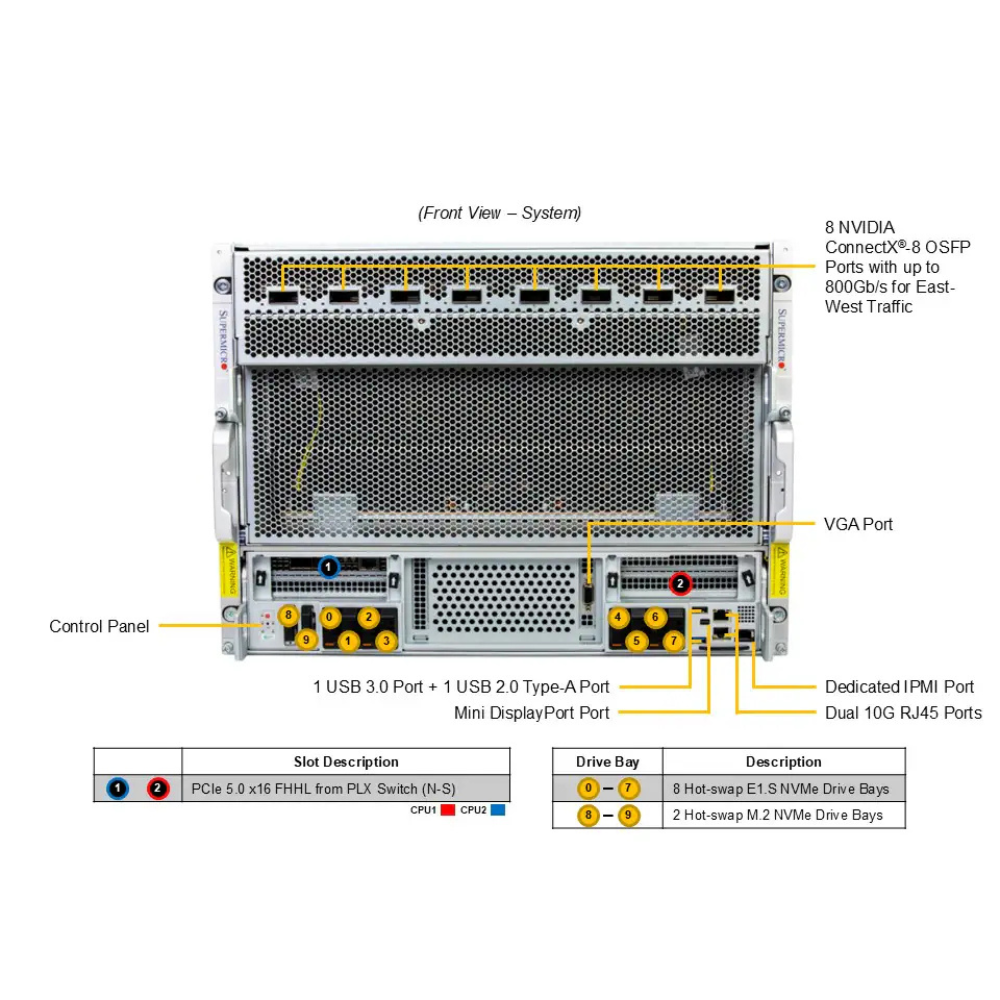

Front Panel
|
|
Buttons
|
|
|
LED
|
-
HDD activity
-
LAN1 activity
-
LAN2 activity
-
Power Fail
-
Power status
-
System information (overheat/UID)
|
|
Expansion Slots
|
|
PCI-Express (PCIe) Configuration
|
-
Default
-
2 PCIe 5.0 x16 FHHL slots
-
View AOC Options
|
|
Drive Bays / Storage
|
|
Drive Bays Configuration
|
-
Default: Total 8 bays
-
8 front hot-swap E1.S NVMe drive bays
-
View NVMe Options
|
|
M.2
|
-
2 M.2 NVMe slots (M-key)
-
View M.2 Options
|
|
System Cooling
|
|
Fans
|
-

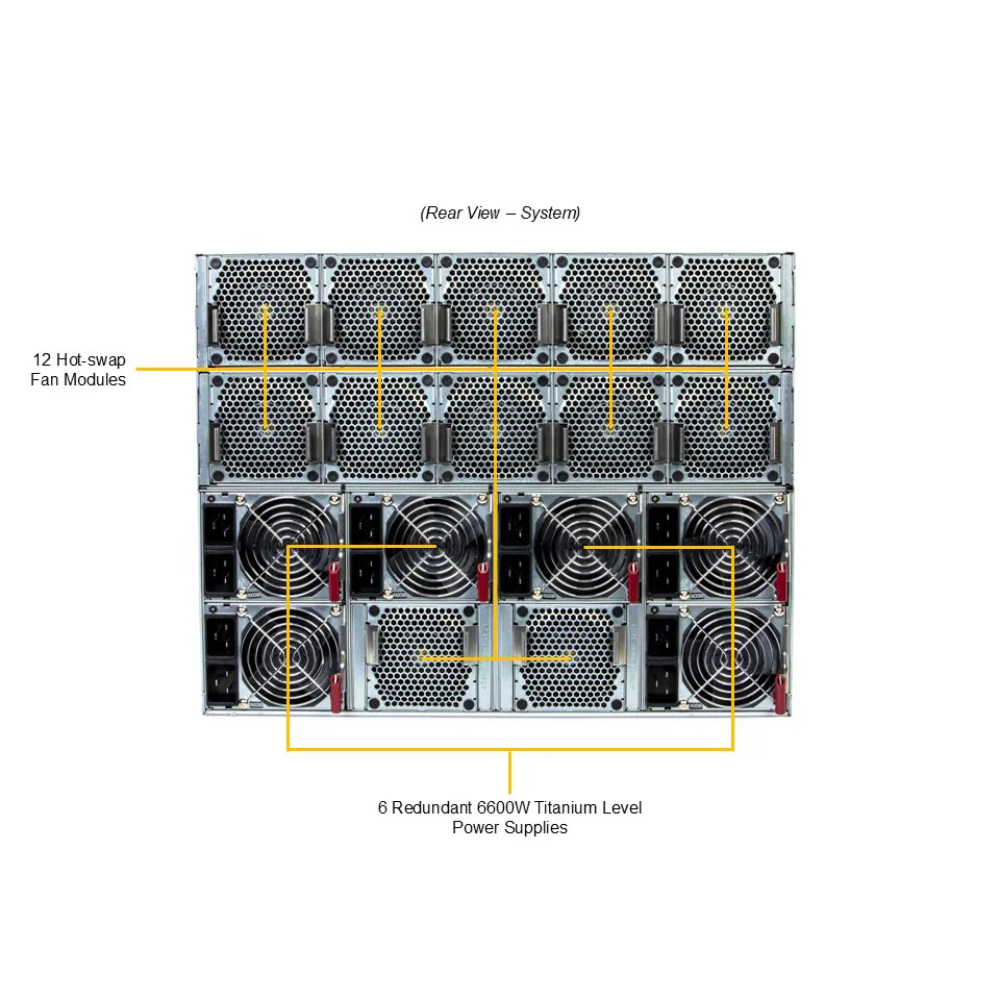

Up to 12 heavy duty fans with optimal fan speed control
|
|
Power Supply
|
|
|
6x 6600W Redundant (3 + 3) Titanium Level (96%) power supplies
|
|
Dimension (WxHxL)
|
106.5 x 82.1 x 245.3 mm
|
|
Input
|
5900W: 200-207.9Vac / 50-60Hz
6000W: 208-219.9Vac / 50-60Hz
6300W: 220-229.9Vac / 50-60Hz
6500W: 230-238.9Vac / 50-60Hz
6600W: 239-240Vac / 50-60Hz
|
|
+12V
|
Max: 130A / Min: 0A (200Vac-207.9Vac)
Max: 130A / Min: 0A (208Vac-219.9Vac)
Max: 130A / Min: 0A (220Vac-229.9Vac)
Max: 130A / Min: 0A (230Vac-238.9Vac)
Max: 130A / Min: 0A (239Vac-240Vac)
|
|
12V SB
|
Max: 4A / Min: 0A
|
|
Output Type
|
Backplanes (gold finger)
|
|
Certification
|
Titanium Level
[ Test Report ]
|
|
Operating Environment
|
|
Environmental Spec.
|
-
Operating Temperature: 10°C to 35°C (50°F to 95°F)
-
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
-
Operating Relative Humidity: 8% to 90% (non-condensing)
-
Non-operating Relative Humidity: 5% to 95% (non-condensing)
|
|
For detailed specifications, options, and compatibility, please refer to the latest official Supermicro documentation and the actual quotes/specifications from Autech.
-

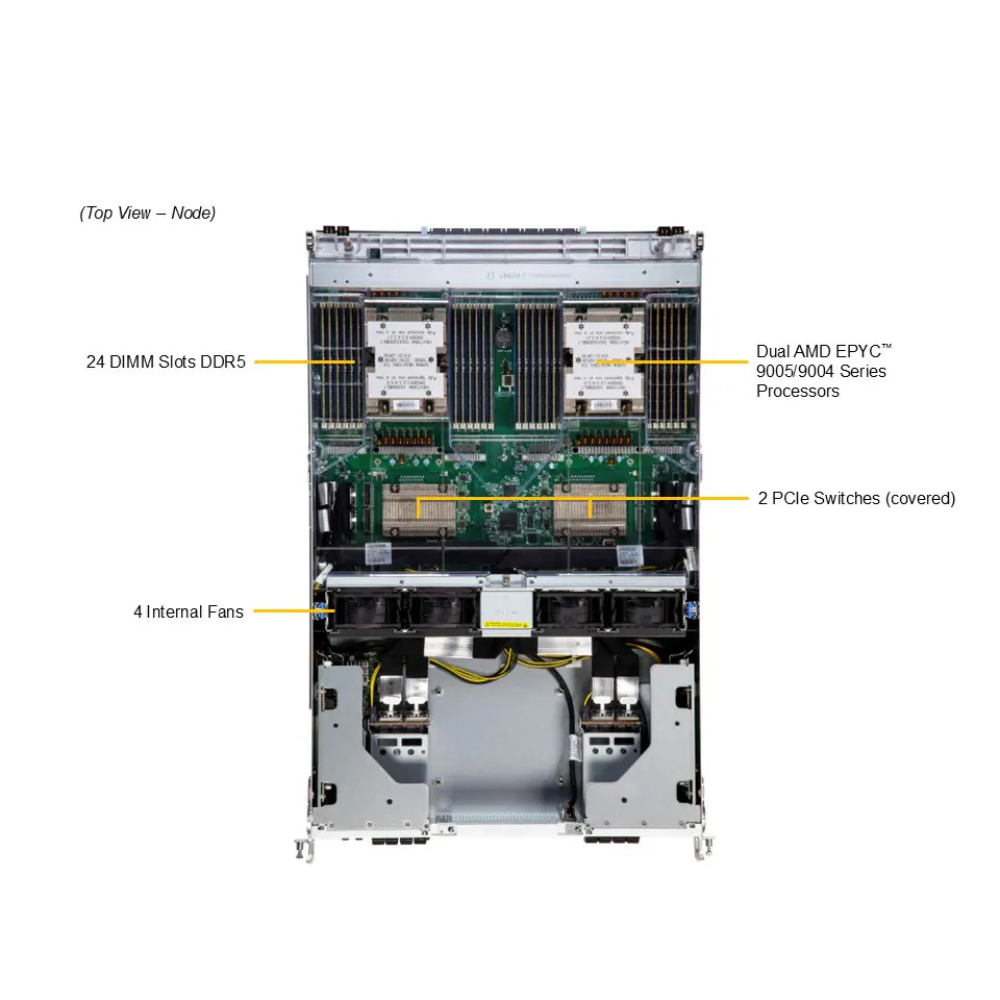

Dual AMD EPYC™ 9005/9004 Series Processors
-
NVIDIA HGX B300 8-GPU with 5th Generation NVLink® 1.8TB/s, 2.3TB of HBM3e GPU memory per system
-
24 DIMMs, with up to 6TB at 6400MT/s DDR5 memory
(Please check System Memory Section for detail)
-

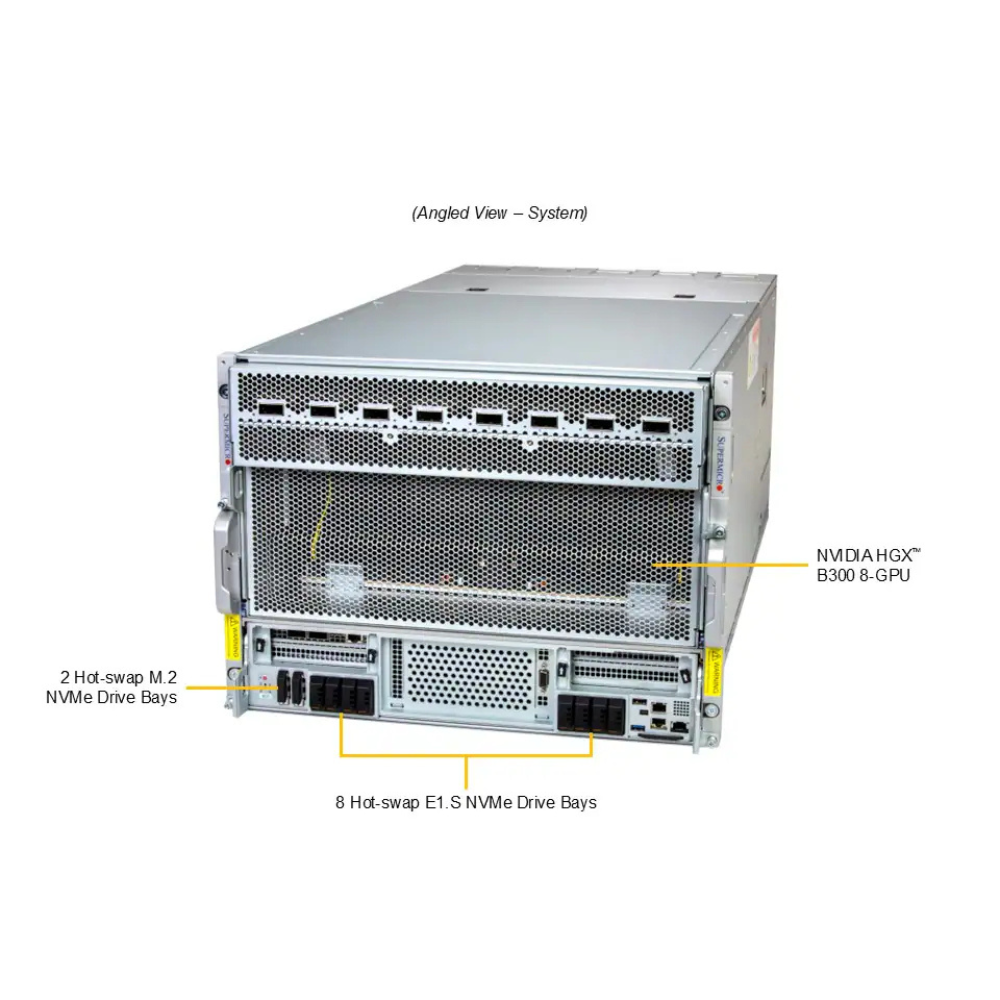

8 Hot-swap E1.S NVMe storage drive bays and 2 M.2 NVMe boot drives
-
8 NVIDIA ConnectX®-8 SuperNICs, up to 800Gb/s, up to two dual-port NVIDIA BlueField®-3 DPUs
-
6x 6600W Redundant (3 + 3) Titanium Level (96%) power supplies
(Power supply full redundancy based on configuration and application load)
- Scientific Research
- Business Intelligence & Analytics
- Finance Services and Fraud Detection
- Large Language Model (LLM) and Generative AI
- Conversational AI
- Drug Discovery
- AI/Deep Learning Training and Inference
- High Performance Computing (HPC)
- Autonomous Vehicle Technologies
