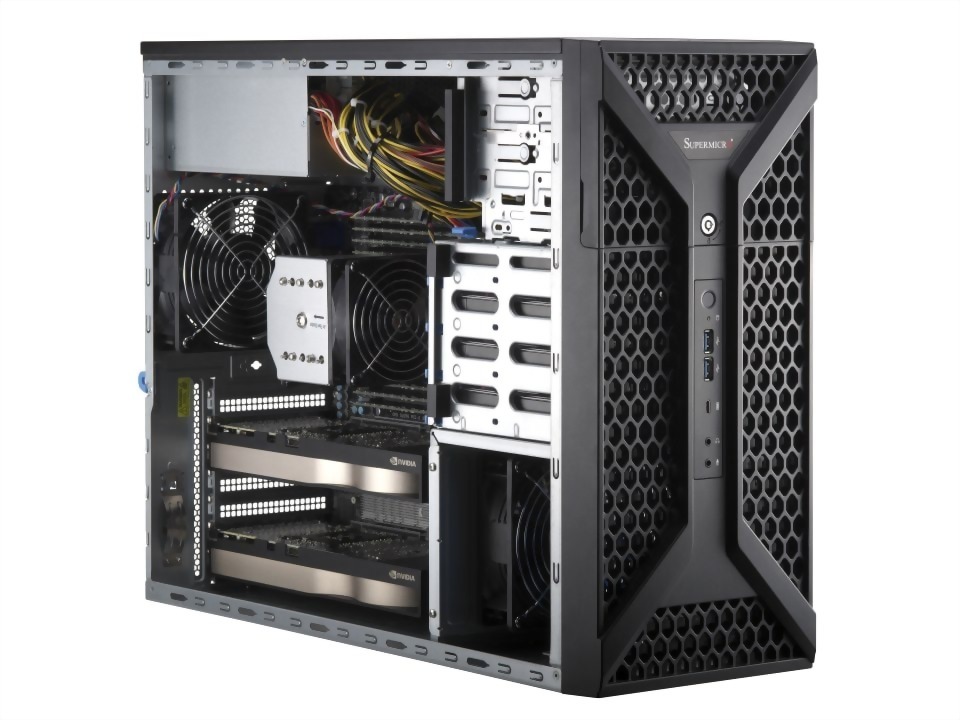

SYS-531A-I

UP mid-tower workstation for 3D and VR content development
Model : SYS-531A-I

SYS-531A-I is a Supermicro SuperWorkstation single-processor system. UP mid-tower workstation for 3D and VR content development

It is positioned for professional workstation deployments that require reliable compute, storage, expansion and graphics options in a server-grade platform. Key configuration references include Intel® Xeon® W-2500/W-2400 processors, Mid-Tower, 4 default and 1x 1200W.

Official reference: Supermicro official product page

SYS-531A-I Specifications

Product SKUs
SuperWorkstation SYS-531A-I

Processor
CPU Single processor(s) Intel® Xeon® W-2500/W-2400 processor
Core Count Up to 26C/52T; Up to 48.75MB Cache

System Memory
Memory Slot Count: 8 DIMM slots Max Memory (2DPC): Up to 1TB 4800MT/s ECC DDR5 RDIMM/LRDIMM
Memory Voltage 1.1V

Input / Output
USB 2 USB 3.2 Gen1 Type-A ports(front) 4 USB 3.2 Gen2 Type-A ports(Rear) 1 USB 3.2 Gen2 Type-C port(Rear) 1 USB 3.2 Gen2 Type-C port(Front)
Video 1 VGA port

Dimensions and Weight
Height 16.7" (424 mm)
Width 7.6" (193 mm)

Drive Bays / Storage
Drive Bays Configuration Default: Total 4 bays4 internal fixed 3.5" SATA drive bays View storage options
M.2 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 2280/22110)

Motherboard
Supermicro X13SRA-TF

GPU
Max GPU Count Up to 2 double-width GPUs
Supported GPU NVIDIA PCIe: A1000, NVIDIA RTX PRO™ 6000 Blackwell Max-Q Workstation Edition, RTX 2000 Ada, RTX 4000 Ada Generation, RTX 4500 Ada, RTX 5000 Ada, RTX 6000 Ada Generation, RTX…

On-Board Devices
SATA SATA (6Gbps)
Network Connectivity 1 RJ45 10GbE with Marvell® AQC113 1 RJ45 1GbE with Intel® I210-AT

Chassis
Form Factor Mid-Tower
Model CSE-735D4-1K26B

Expansion Slots
PCI-Express (PCIe) Configuration Default1 PCIe 4.0 x4 FHFL slot 3 PCIe 5.0 x16 FHFL slots

System Cooling
Fans Up to 1x 120mm Fan(s) Up to 1x 120mm Fan(s)

For detailed specifications, options, and compatibility, please refer to the latest official Supermicro documentation and the actual quotes/specifications from Autech.

Product Description

SYS-531A-I is a Supermicro SuperWorkstation single-processor system. UP mid-tower workstation for 3D and VR content development

It is positioned for professional workstation deployments that require reliable compute, storage, expansion and graphics options in a server-grade platform. Key configuration references include Intel® Xeon® W-2500/W-2400 processors, Mid-Tower, 4 default and 1x 1200W.

Official reference: Supermicro official product page

Key Features

  • CPU: 1
  • CPU Type: Intel® Xeon® W-2500/W-2400 processors
  • Drives: 4 default
  • Form Factor: Mid-Tower
  • Supported GPUs: NVIDIA PCIe: NVIDIA RTX PRO™ 6000 Blackwell Max-Q Workstation Edition
  • Total Power: 1x 1200W

Applications

  • Professional workstation computing
  • Content creation, engineering or AI workloads according to configuration
  • Enterprise workstation deployment
  • Professional Workstation Computing
  • Content Creation
  • Engineering / Simulation
  • Enterprise Workstation Deployment
