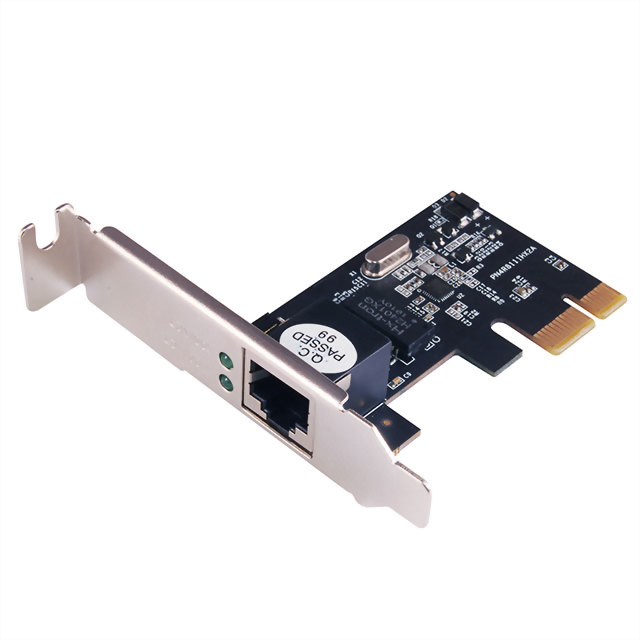

N-314 is a 10/100/1000M Gigabit Ethernet PCI Express Card. It provides throughput and connectivity at gigabit speeds up to 1000 Mbps (1Gbps) raw bandwidth.

This NIC Card equips high quality Realtek8111H chipset which is optimized for maximum throughput and low CPU utilization solution. It can support Microsoft Windows OS, Windows Server OS and Linux OS.

System Requirements:

Windows 2000/XP/Server 2003/Vista/Server 2008/7/Server 2008 R2/8/Server 2012/8.1/Server 2012 R2/10 32/64 bit

PCI Express-enabled system with an available PCI Express slot

Accessories:

1 x Driver CD

1 x User Manual

Packing Information:

* Retail Box Packing

* 60 pcs. Per carton

* Measurment: 54 x 52 x 40 cm

* G.Weight: 9.8 Kg ; N.Weight: 9 Kg

• Single-lane (or x1) PCI Express throughput supports rate of 2.5Gbps
• Designed to meet PCI Express Specification Revision 1.1a
• Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
• 10/100/1000M data auto-negotiation
• LEDs indicate the status of data transmission
• Support Wake on Lan (WOL) power management (optional)
• Feature full duplex mode that doubles the network connections speed
