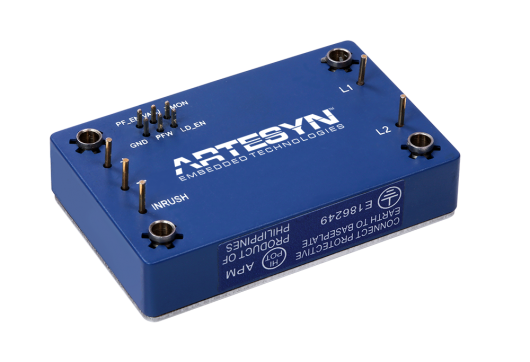

The Axon PFC module has a wide range of input voltages with efficiencies as high as 95%. The external resistors allow precise adjustment of the output voltage and a wide range of operating temperatures for normal operation in low temperature and high temperature environments. The PFC module can reduce product development cycles, improve the electrical performance of the product, and reduce the hazard of harmonic currents.
Model : aif04zpfc series aiq00zpfc-01nl ait02zpfc-01nl

Vout Lout Input Voltage Package L × × H (mm) Efficiency Model Number
PFC Module - Baseplate
380 V 4.2 A 85-264 Vac 4.6″ × 2.4 ″ × 0.5″ (116.84× 60.96× 12.7) 95% AIF04ZPFC-01L
380 V
4.2 A
85-264 Vac
4.6″ × 2.4 ″ × 0.5″ (116.84× 60.96× 12.7)
95%
AIF04ZPFC-02L
393 V
0.25 A 100-122 Vac
2.3″ × 1.45 ″ × 0.5″ (58.42× 36.83× 12.7)
90%
AIQ00ZPFC-01NL
393 V
2.08 A 85-264 Vac
3.5″ × 2.4 ″ × 0.5″ (88.9× 60.96× 12.7)
93%
AIT02ZPFC-01NL
       ※85°C temperature

AIF04ZPFC Series

  • Total Max Power:
    1,600 W
  • Total Max Current:
    4.2 A
  • Input Voltage:
    85 V to 264 V
  • Output Voltage:
    380 V to 380 V
  • Outputs:
    Single
  • Size (L x W x H):
    4.600" x 2.400" x 0.500"
  • Warranty:
    2 years
  • Operating Temperature:
    -20°C to +100°C

AIQ00ZPFC Series

  • Total Max Power:
    75 W
  • Total Max Current:
    0.3 A
  • Input Voltage:
    100 V to 122 V
  • Output Voltage:
    393 V to 393 V
  • Outputs:
    Single
  • Size (L x W x H):
    2.300" x 1.450" x 0.500"
  • Warranty:
    1 year
  • Operating Temperature:
    -20°C to +100°C

AIT02ZPFC Series

  • Total Max Power:
    720 W
  • Total Max Current:
    2.1 A
  • Input Voltage:
    85 V to 264 V
  • Output Voltage:
    393 V to 393 V
  • Outputs:
    Single
  • Size (L x W x H):
    3.500" x 2.400" x 0.550"
  • Warranty:
    1 year
  • Operating Temperature:
    -20°C to +100°C
