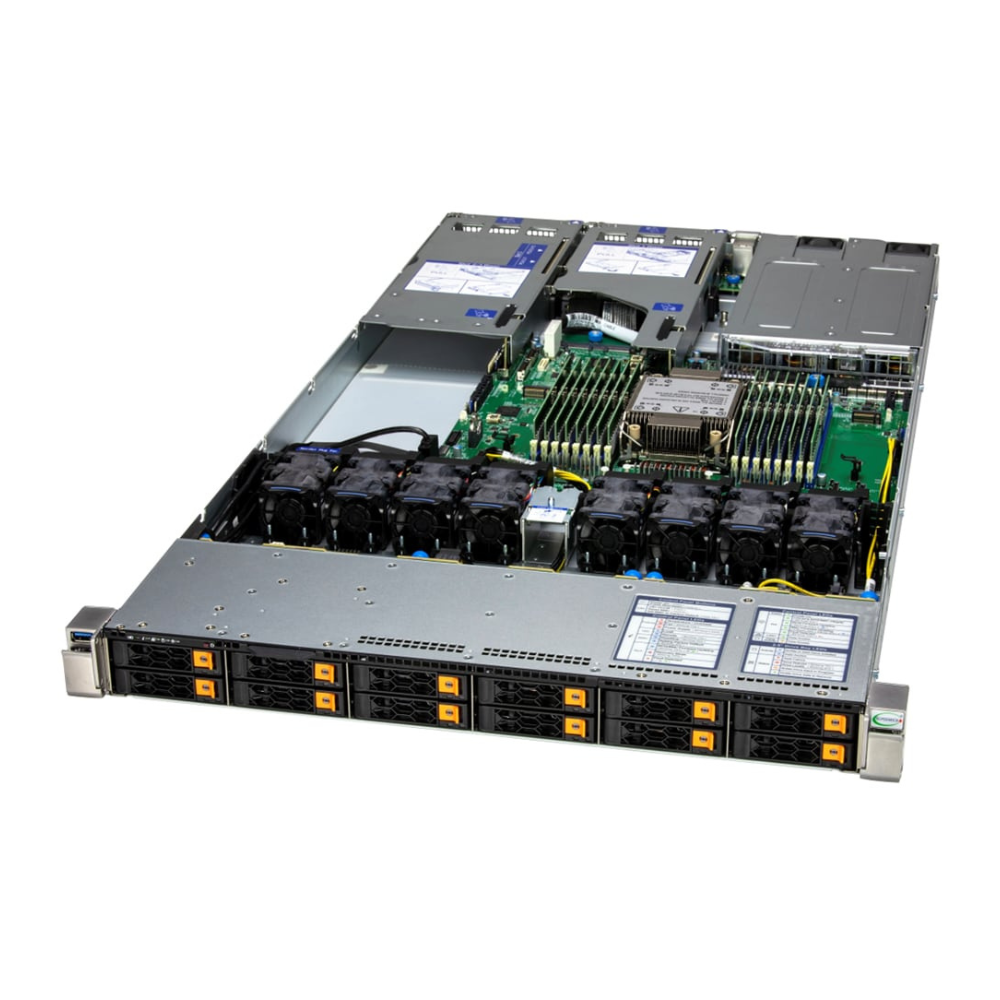

SYS-112H-TN

1U UP Hyper supporting up to 12 hot-swap 2.5" NVMe/SAS/SATA bays and up to 3 PCIe 5.0 + 1 PCIe 5.0 AIOM slots

Model : SYS-112H-TN

Q'ty :

Product SKUs
SYS-112HA-TN
Motherboard
Super X14SBH-AP
Processor
CPU	Single Socket BR (LGA-7529) Intel® Xeon® 6900 Series processors with P-cores and Intel Xeon 6+ processors
Core Count	P-cores: Up to 128C/256T; Up to 504MB Cache E-cores: Up to 288C/288T; Up to 576MB Cache
Note	Supports up to 500W TDP CPUs (Air Cooled)
GPU
Max GPU Count	Up to 1 double-width or 2 single-width GPUs
CPU-GPU Interconnect	PCIe 5.0 x16 CPU-to-GPU Interconnect
System Memory
Memory	Slot Count: 12 DIMM slots Max Memory (1DPC): Up to 1.5TB 8800MT/s ECC DDR5 MRDIMM (P-core only) Max Memory (1DPC): Up to 1.5TB 8000MT/s ECC DDR5 RDIMM (E-core) Max Memory (1DPC): Up to 3TB 6400MT/s ECC DDR5 3DS RDIMM (P-core only) View Memory Options
Memory Voltage	1.1V
On-Board Devices
NVMe	NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required) View NVMe Options
Network Connectivity	Via AIOM View AIOM Options View AOC Options
Input / Output
LAN	1 RJ45 1 GbE Dedicated BMC LAN port
USB	2 USB 3.2 Gen1 ports(Rear) 1 USB 3.2 Gen1 port(Front)
Video	1 VGA port
System BIOS
BIOS Type	AMI 64MB SPI Flash
Management
Software	SuperCloud Composer® (SCC) Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management
Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown
PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
Certifications
Operating Systems	Oracle Linux 9.4, RHEL 9.4, RHEL 10.0, Windows Server 2025 View all OS Compatibility and Certification Matrix

Chassis
Form Factor	1U Rackmount
Model	CSE-HS101-R000NFP
Dimensions and Weight
Height	1.7" (43 mm)
Width	17.2" (437 mm)
Depth	30.66" (778.7 mm)
Package	8.82" (H) x 26.46" (W) x 43.31" (D)
Weight	Gross Weight: 41.4 lbs (18.8 kg) Net Weight: 19.2 lbs (8.7 kg)
Available Color	Silver

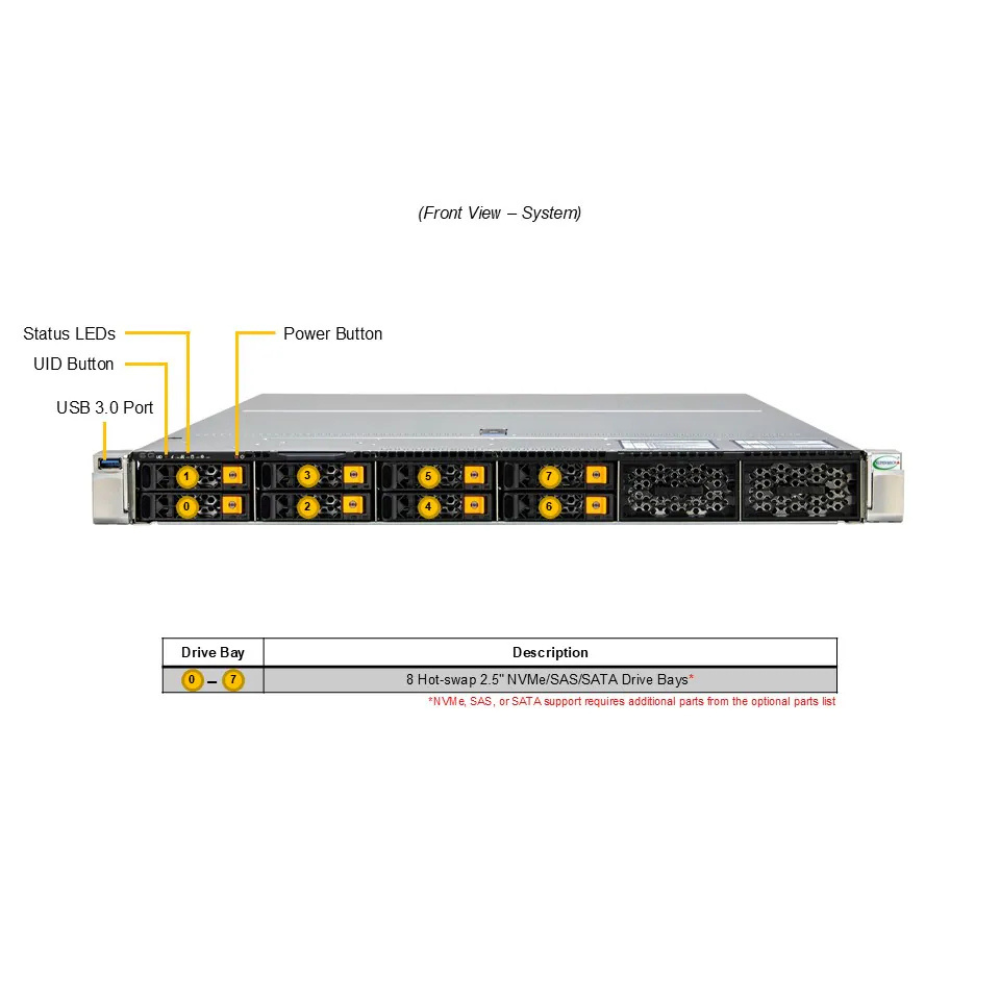

Front Panel
Buttons	Power On/Off UID button
LED	HDD activity LAN1 activity Power status System information
Expansion Slots
PCI-Express (PCIe) Configuration	Default 1 PCIe 5.0 x16 FHHL slot 1 PCIe 5.0 x16 FHFL slot 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) 1 PCIe 5.0 x8 FHFL slot View AOC Options
Drive Bays / Storage

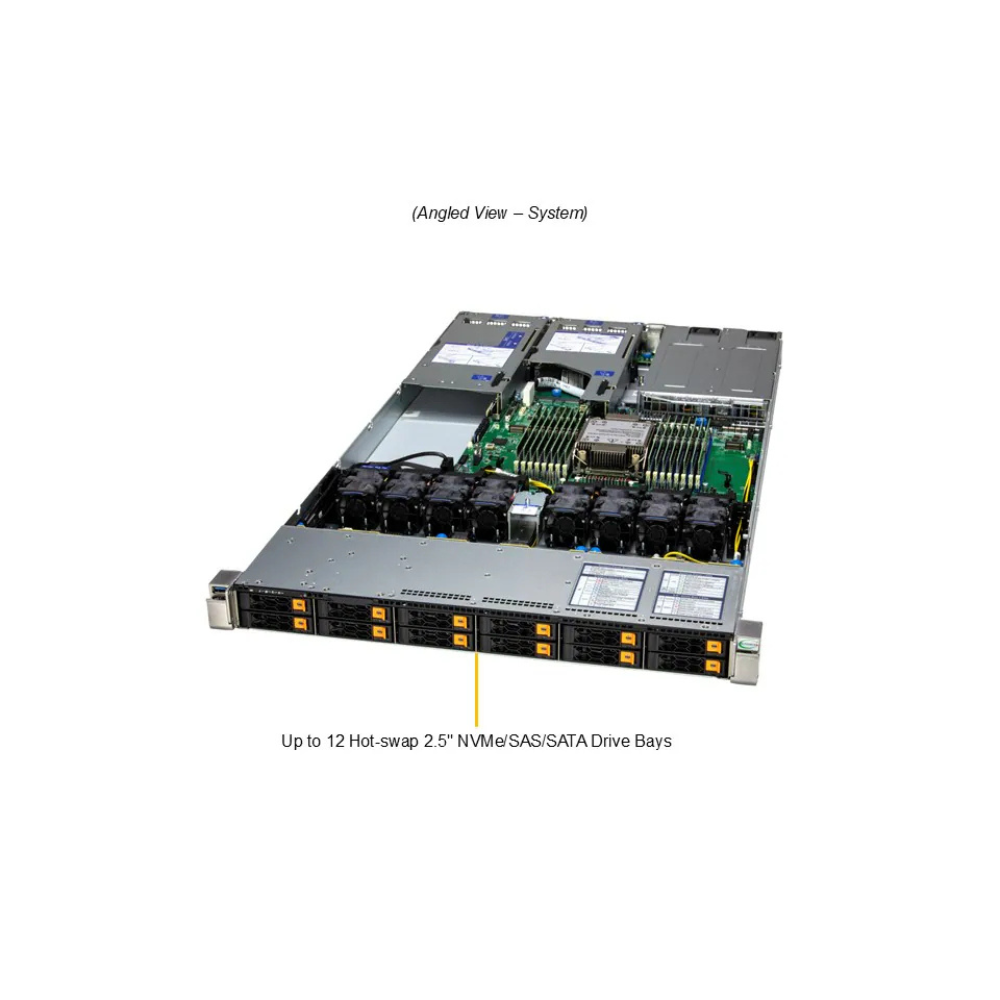

Drive Bays Configuration	Default: Total 8 bays 8 front hot-swap 2.5" NVMe/SAS/SATA* drive bays Option A: Total 12 bays 8 front hot-swap 2.5" NVMe/SAS/SATA* drive bays 4 front hot-swap 2.5" SAS/SATA drive bays (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details) View NVMe Options
M.2	2 M.2 NVMe slots (M-key 2280/22110/25110; VROC required for RAID) View M.2 Options
System Cooling
Fans	Up to 8 counter-rotating 40x40x56mm Fan(s)
Power Supply
	2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)	73.5 x 40 x 265 mm
Input	800W: 100-127Vac 800W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 230-240Vdc / 50-60Hz (for CCC only)
+12V	Max: 66.7A / Min: 0A (100Vac-127Vac) Max: 83A / Min: 0A (100Vac-127Vac) Max: 100A / Min: 0A (200Vac-240Vac) Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only)
12V SB	Max: 2.1A / Min: 0A
Output Type	Backplanes (gold finger)
	2x 1300W Redundant (1 + 1) Gold (Certification Pending) Level power supplies
Dimension (WxHxL)	73.5 x 40 x 265 mm
Input	1300W: -44--65Vdc / 50-60Hz
+12V	Max: 108.3A / Min: 0A
12V SB	Max: 2.1A
Output Type	Backplanes (gold finger)
	2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)	73.5 x 40 x 265 mm
Input	1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac 1600W: 200-240Vac / 50-60Hz 1600W: 200-240Vdc / 50-60Hz (for CQC only)
+12V	Max: 83.3A / Min: 0A (100Vac-127Vac) Max: 133.3A / Min: 0A (200Vac-240Vac)
12V SB	Max: 3.5A / Min: 0A Max: 3.5A
Output Type	Backplanes (gold finger)
	2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)	73.5 x 40 x 265 mm
Input	1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only) 2000W: 230-240Vdc / 50-60Hz (for CQC only) 2700W: 200-240Vac
+12V	Max: 83A / Min: 0A (100Vac-127Vac) Max: 150A / Min: 0A (200Vac-220Vac) Max: 165A / Min: 0A (220Vac-230Vac) Max: 166A / Min: 0A (230Vac-240Vac) Max: 225A / Min: 0A (200Vac-240Vac)
12V SB	Max: 3.5A / Min: 0A
Output Type	Backplanes (gold finger)
	2x 2000W Redundant (1 + 1) power supplies
Dimension (WxHxL)	73.5 x 40 x 265 mm
Input	2000W: 200-277Vac / 50-60Hz
+12V	Max: 166A / Min: 0A (200Vac-277Vac)
12V SB	Max: 3.5A / Min: 0A
Output Type	Backplanes (gold finger)
Operating Environment
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)

For detailed specifications, options, and compatibility, please refer to the latest official Supermicro documentation and the actual quotes/specifications from Autech.

Hyper is a flagship performance rackmount server optimized for scale-out cloud workloads.
Single Intel® Xeon® 6 Processor.

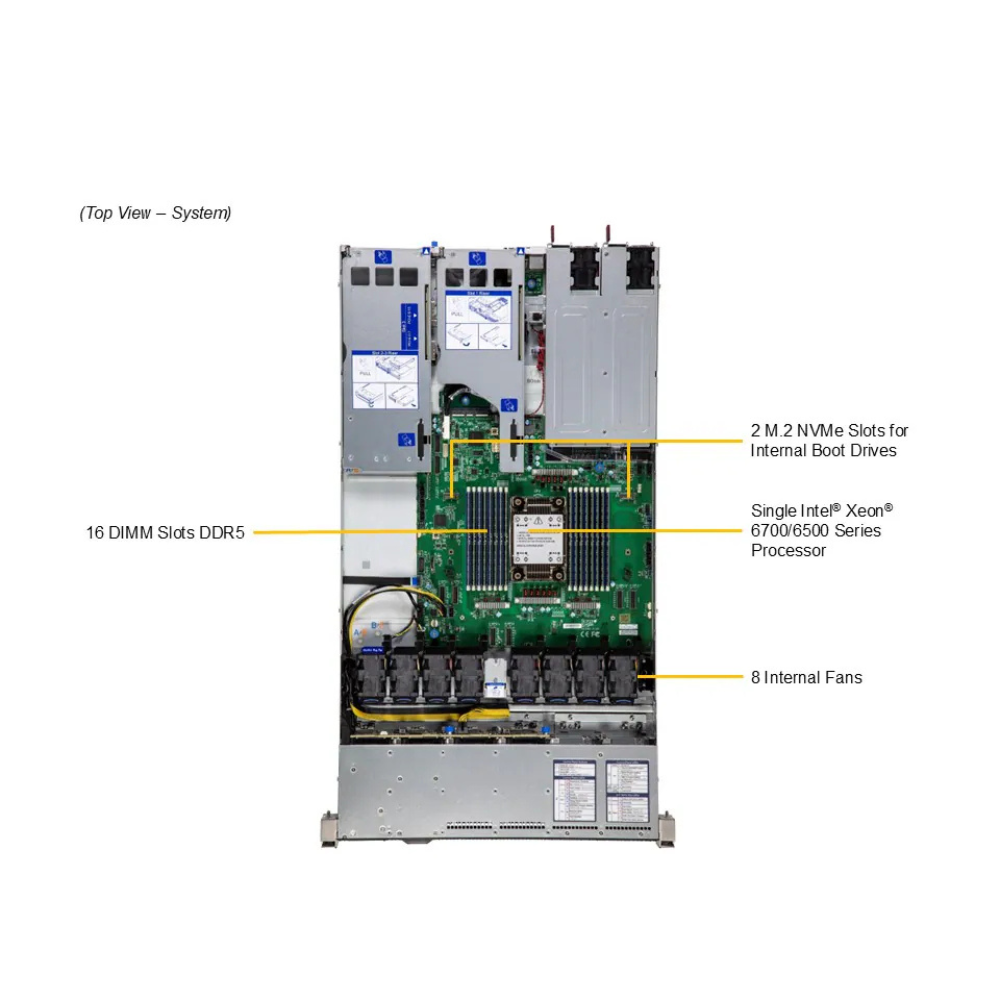

16 DIMM slots support RDIMM / MRDIMM(1DPC)
Double width add-on card support.
Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible).
Breeze through high throughput workloads with PCIe 5.0 NVMe drive support.
Trusted Platform Module (TPM) 2.0 onboard.
Modularized and Tool-less design for easy serviceability.
