WR312G-WLAN Industrial 4G/ LTE Router

Industrial Secure Wireless Router,
2GbE+2COM,
Wi-Fi

Model : wr312g wlan

Q'ty :

High Throughput Network Performance
・2-port Gigabit Ethernet Routing and Bridging
・Close to wire-speed NAT routing performance
・Ethernet ports’ hardware NAT, save CPU utilization

Enhanced Cyber Security for Critical Application

・Support LAN & WAN Security

・Firewall for traffic classification

・DMZ, port forwarding, NAT for LAN protection

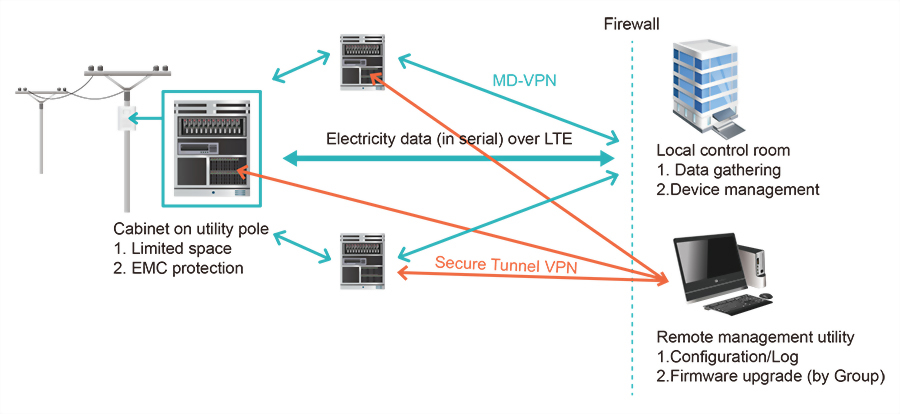

・OpenVPN, IPsec for secure connection

・HTTPs/SSH secure login

Management Features

・Various configuration paths, including Web GUI, Telnet,

Utility and SNMP

・USB for easy field configuration and firmware upgrade

・Software selectable RS232/422/485 Serial Interface

・SD for field diagnostic log or extended application

Rugged Design for Wayside Surveillance, ITS Application
・Up to 150Mbps LTE network bandwidth with EN50121-4 for Industrial IoT, ITS, Railway track side application
・Effective heat dissipation design for operating in -40~70°C environments
・Railway EMC: EN50121-4 compliance
・CE Marking
・IEC61000-6-2/IEC61000-6-4 heavy industrial

Specifications
Technology
Standard	3GPP Release 11/12 Long Term Evolution (LTE), fallback 3GPP Release 7,8,9 for HSPA/UMTS
	IEEE 802.11ac wireless local area network (WLAN), Backward support 802.11n/g/a/b Wireless LAN
	IEEE 802.3 10Base-T Ethernet
	IEEE 802.3u 100Base-TX Fast Ethernet
	IEEE 802.3ab 1000Base-T Gigabit Ethernet copper
	IEEE 802.1D-2004 Rapid Spanning Tree Protocol (RSTP)
	IEEE 802.1Q for VLAN
Interface
Ethernet Port	2 x 10/100/1000MBase-T RJ45, Auto Negotiation, Auto-MDI/MDIX
System LED	1 x PWR: Green On 1 x SYS: Ready: Green On, Firmware Updating: Green Blinking 1 x DO: Red On 2 x Ethernet Ports: Link: Green On, Activity: Green Blinking 2 x Serial Ports (Serial 1/2, by model): Activity: Green Blinking
USB	1 x USB for Configuration/Firmware Update
Reset	System Reset(2~6 Seconds) / Default Settings Reset (over 7 Seconds)

SIM Socket	2 x Nano SIM with redundancy
Micro SD	(Only for E Series) 1 x for field diagnostic data logging
Serial	Up to 2 x RS232/422/485, DB9
Power Input, Digital Output	6-Pin Removable Terminal Block Connector 4 Pin for Redundant Power 2 Pin for DO (Relay Alarm) DO: Dry Relay Output with 1A /24V DC
Cellular Properties (LTE Cat.6)
Standard	UMTS/HSPA 3GPP Release 8 LTE 3GPP Release 12 (LTE Cat.6)
Data Rate	TD-SCDMA: DL Max. 4.2 Mbps, UL: Max.2.2 Mbps HSPA: DL: Max. 42 Mbps, UL: Max. 5.76 Mbps WCDMA: DL: Max 384 Kbps, UL: Max 384 Kbps LTE-FDD: DL: Max. 300 Mbps, UL: Max. 50 Mbps, 2x2 DL MIMO LTE-TDD: DL: Max. 226 Mbps, UL: Max. 28 Mbps, 2x2 DL MIMO
Band Information: LTE-E	LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 (2100/ 1800/ 850/ 2600/ 900/ 800/ 700/ 1500MHz) LTE: TDD B38/B40/B41 (2600/ 2300/ 2500MHz) WCDMA: FDD B1/B3/B5/B8 (2100/ 1800/ 850/ 900MHz)
Band Information: LTE-U	LTE: FDD B2/B4/B5/B7/B12/B13/B17/B25/B26/ B29/B30/B66 (1900/ 1700/ 700/ 2600/ 700/ 700/ 700/ 1900/ 850/ 700/ 2300/ 1700MHz) LTE-TDD: B41 (2500MHz) WCDMA: B2/B4/B5 (1900/ 1700/ 850MHz)
Band Information: LTE-AP	LTE FDD: B1/B3/B5/B7/B8/B18/B19/B21/B26 (2100/ 1800/ 850/ 2600/ 900/ 850/ 850/ 1500/ 850MHz) LTE TDD: B38/B39/B40/B41 (2600/ 1900/ 2300/ 2500MHz) TD-SCDMA: B39 (1900MHz) WCDMA: B1/B5/B6/B8/B9/B19 (2100/ 850/ UMTS only/ 900/ 1800/ 850MHz)
Cellular Properties (LTE Cat.4)
Standard	GSM/GPRS/EDGE 3GPP Pelease 6 UMTS/HSPA 3GPP Release 8 LTE 3GPP Release 11
Data Rate	GPRS: DL: max. 85.6 kbps, UL: max.85.6 kbps EDGE: DL: max. 236.8 kbps, UL: max. 236.8 kbps HSPA: DL: max. 42 Mbps, UL: max. 5.76 Mbps LTE-FDD Cat.4: DL: max. 150 Mbps, UL: max. 50 Mbps, 2x2 DL MIMO LTE-TDD Cat.4: DL: max. 130 Mbps, UL: max. 35 Mbps, 2x2 DL MIMO
Band Information: LTE-E	LTE: FDD B1/B3/B5/B7/B8/B20 (2100/ 1800/ 850/ 2600/ 900/ 800MHz) LTE: TDD B38/B40/B41 (2600/ 2300/ 2500MHz) WCDMA: FDD B1/B5/B8 (2100/ 850/ 900MHz) GSM: B3/B8 (1800/ 900MHz)
Band Information: LTE-AU	LTE: FDD B1/B2/B3/B4/B5/B7/B8/B28 (2100/ 1900/ 1800/ 1700/ 850/ 2600/ 900/ 700MHz) LTE: TDD B40 (2300MHz) WCDMA: FDD B1/B2/B5/B8 (2100/ 1900/ 850/ 900MHz) GSM: B2/B3/B5/B8 (1900/ 1800/ 850/ 900MHz)
Band Information: LTE-U	LTE: FDD B2/B4/B12 (1900/ 1700/ 700MHz) WCDMA: B2/B4/B5 (1900/ 1700/ 850MHz)
Band Information: LTE-CN	LTE FDD: B1/B3/B5/B8 (2100/ 1800/ 850/ 900MHz) LTE TDD: B38/B39/B40/B41 (2600/ 1900/ 2300/ 2500MHz) TD-SCDMA: B34/B39 (2000/ 1900MHz) WCDMA: B1/B8 (2100/ 900MHz) CDMA: BC0 GSM: 900/1800MHz
Wi-Fi Properties
Standard	IEEE 802.11ac/a/b/g/n, 2T2R MINO 802.11ac: OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM)
Data Rate	802.11ac: MCS0~9, max. 866Mbps 802.11b: 11Mbps / 802.11a/g: 54Mbps / 802.11n: MCS0~15, max.300Mbps Check detail TX/RX information in User Manual
Frequency	ISM Band, 2.412GHz~2.472GHz, 5.180MHz~5.825MHz(Band 1,4)
RSSI	≦20db, compliant with CE request
GPS Properties
GNSS	GPS/GLONASS/BeiDou/Galileo
Performance	Cold start: 18s, Warm start: 2.2s, Hot start: 1.8s
Sensitivity	Cold start: -146dBm, Reacquisition: -157dBm, Tracking: -157dBm
Accuracy	< 1.5M
GNSS Frequency	GPS/Galileo: 1575.42±1.023 MHz GLONASS: 1597.5~1605.8 MHz BeiDou: 1561.098±2.046 MHz
Antenna	Frequency range: 1561~1615MHz Polarization: RHCP or linear VSWR: <2 (Typ.) Passive antenna gain: >0dBi
Software
Network Protocols	TCP/IP, UDP, DHCP, Telnet, DNS, SNMP, HTTP, HTTPS, SMTP,NTP,ARP, ICMP,DDNS
Management Interface	CGI WebGUI, Command Line Interface (CLI), Telnet, SNMP
User Management	Radius client, TACACS+, local database
Serial communication	TCP Server/TCP Cleint/UDP mode, TCP Alive check, Force TX Delimiter.Timeout/interval/length, Long Distance Termination
Time Managemant	NTPv3, SNTP, Cellular Time
IoT	AWS Agent, Azure Agent, ThingMaster Agent
Network Management	IPv4, SNMP v1/v2c/v3/Trap, MIB II, Entity MIB, DHCP server/client, DHCP relay*, TFTP, ARP response over 802.2 LLC SNAP, Proxy ARP, DNS (client/proxy)
Traffic Management	Traffic Control, 1:1 NAT, Customized NAT, NAPT(SNAT/DNAT), Port Forwarding
Routing	RIPv2*, Static Route
Security	Firewall, DMZ, HTTPs, SSH, IEEE 802.1X/RADIUS
Redundancy Protocol	Rapid Spanning Tree Protocol (RSTP)
VPN	IPsec, OpenVPN (server/ client), L2TP*, GRE
Cellular Configuration	Radio on/off, 2G, 3G and 4G modes Configurable, SIM Security, Connection Status, Cellular to Eth-WAN Redundancy, GPS positioning (by model), Backup Sim Retry (1-10 times)
WLAN Configuration	WLAN Basic Settings: Radio on/off, AP/client mode, 2.4G 11n/5G 11ac Band and Frequency selection, SSID/Multi-SSID configuration, SSID broadcast, VLAN ID, WLAN to LAN Link fault pass-through, Cellular to WLAN Auto Offload and advanced WLAN settings, 802.1X
Utility	ViewMaster, NetMaster, Ping, Traceroute
Power Requirement
Input Voltage	24V(12~48VDC)
Reverse Polarity Protect	Yes
Input Current	0.23A@24V
Power Consumption	Max 5.52W@24VDC full traffic, suggest to reserve 15% tolerance
Mechanical
Installation	DIN Rail
Enclosure Material	Steel Metal with Aluminum
Dimension	50(W) x 151(H) x 120(D) mm / without DIN Rail Clip
Ingress Protection	IP30
Weight	≒600g without package
Environmental
Operating Temperature & Humidity	-40°C~75°C , 5%~95% Non-Condensing
Storage Temperature	-40°C~85°C
MTBF	>200,000 hours
Warranty	5 years
Approval
Safety	EN60950-1 Compliance EN62368-1:2014/AC:2017 Compliance IEC 60255-27:2013 Compliance
EMC	EN61000-6-2/EN61000-6-4 Compliance
EMI	CISPR 22, FCC part 15B Class A Compliance
EMS	EN61000-4-2 ESD, EN61000-4-3 RS, EN61000-4-4 EFT, EN61000-4-5, EN61000-4-6 CS, EN61000-4-8 Magnetic Field, EN61000-4-12/16/17/18/29
Radio	RED Compliance Safety: EN 62368-1 EN 50385/EN62311 MPE assessment EN 301 489-1/17/19/52, EN 55032/55024 EN 300 328/EN 301 893 EN 301 908-1 FCC Part 15B
Railway	EN50121-4
Environmental	EN60870-2-2:1998 Compliance IEC 60068-2-21: 2006 Compliance

*Future Release

Ordering Information
Model Name
WR302G	Industrial Secuer Serial Server, 2GbE+2COM, USB, SD
WR312G-WLAN	Industrial Secuer Wireless Router, 2GbE+2COM, USB, SD, 802.11ac/n WLAN
WR312G-LTE-E	Industrial Secuer Cellular Router, 2GbE+2COM, USB, SD, LTE-E, 1SIM, FDD B1/3/5/7/8/20, TDD B38/40/41
WR312G-LTE-CN	Industrial Secuer Cellular Router, 2GbE+2COM, USB, SD, LTE-CN, 1SIM, FDD B1/B3/B5/B8, TDD B38/B39/B40/B41
WR312G-LTE6-E	Industrial Secuer Cellular Router, 2GbE+2COM, USB, SD, LTE-E Cat.6, 1SIM, FDD B1/3/5/7/8/20/28/32, TDD B38/40/41
WR322GR-WLAN+LTE-E	Industrial Secuer Cellular Router, 2GbE+2COM, USB, SD, 802.11ac/n WLAN, LTE-E, GPS, 2SIM, FDD B1/3/5/7/8/20, TDD B38/40/41
WR322GR-WLAN+LTE-CN	Industrial Secuer Cellular Router, 2GbE+2COM, USB, SD, 802.11ac/n WLAN, LTE-CN, GPS, 2SIM, FDD B1/B3/B5/B8, TDD B38/B39/B40/B41
WR322GR-WLAN+LTE6-E	Industrial Secuer Cellular Router, 2GbE+2COM, USB, SD, 802.11ac/n WLAN, LTE-E Cat.6, GPS, 2SIM, FDD B1/3/5/7/8/20/28/32, TDD B38/40/41
WR312G-LTE-E (C Series)	Industrial Secuer Cellular Router, 2GbE+1COM, LTE-E, 2SIM, FDD B1/3/5/7/8/20, TDD B38/40/41
WR312G-LTE-CN (C Series)	Industrial Secuer Cellular Router, 2GbE+1COM, LTE-CN, 2SIM, FDD B1/B3/B5/B8, TDD B38/B39/B40/B41
WR312G-LTE6-E (C Series)	Industrial Secuer Cellular Router, 2GbE+1COM, LTE-E Cat.6, 2SIM, FDD B1/3/5/7/8/20/28/32, TDD B38/40/41
WR322GR-WLAN+LTE-E (C Series)	Industrial Secuer Cellular Router, 2GbE+1COM, 802.11ac/n WLAN, LTE-E, GPS, 2SIM, FDD B1/3/5/7/8/20, TDD B38/40/41
WR322GR-WLAN+LTE-CN (C Series)	Industrial Secuer Cellular Router, 2GbE+1COM, 802.11ac/n WLAN, LTE-CN, GPS, 2SIM, FDD B1/B3/B5/B8, TDD B38/B39/B40/B41
WR322GR-WLAN+LTE6-E (C Series)	Industrial Secuer Cellular Router, 2GbE+1COM, 802.11ac/n WLAN, LTE-E Cat.6, GPS, 2SIM, FDD B1/3/5/7/8/20/28/32, TDD B38/40/41
WR312G-LTE-E (D Series)	Industrial Secuer Cellular Router, 2GbE+2COM, USB, LTE-E, 2SIM, FDD B1/3/5/7/8/20, TDD B38/40/41
WR312G-LTE-CN (D Series)	Industrial Secuer Cellular Router, 2GbE+2COM, USB, LTE-CN, 2SIM, FDD B1/B3/B5/B8, TDD B38/B39/B40/B41
WR312G-LTE6-E (D Series)	Industrial Secuer Cellular Router, 2GbE+2COM, USB, LTE-E Cat.6, 2SIM, FDD B1/3/5/7/8/20/28/32, TDD B38/40/41
WR312G-LTE-E (E Series)	Industrial Secuer Cellular Router, 2GbE+2COM, USB, SD, LTE-E, 1SIM, FDD B1/3/5/7/8/20, TDD B38/40/41
WR312G-LTE-CN (E Series)	Industrial Secuer Cellular Router, 2GbE+2COM, USB, SD, LTE-CN, 1SIM, FDD B1/B3/B5/B8, TDD B38/B39/B40/B41
	Embedded SIM by request LTE-AU/LTE-U Cat.4 by request LTE-AP/LTE-U Cat.6 by request Dual LTE concurrent by request *GPS support for WR312G-LTE series by request
	Package List
	1 x Product Unit
	1 x 6-pin Removable Terminal Connector
	2 x Wi-Fi Antenna, White
	1 x Atached Din Clip
	1 x Quick Installation Guide
