DP310

Industrial 8+2G L2 Managed PoE Switch
Supports priority streaming for optimal image and VoIP transmission
Support for the latest ITU-T G.8032 v1/v2 ERPS standard network redundancy protocol
Model : dp310

DP310 is an industrial 10-port L2 Managed PoE switch that provides 8-port Fast Ethernet, IEEE 802.3af/at compliant PoE to enable devices when power sources are not available. The switch is equipped with additional 2-port RJ45/SFP combo Gigabit Ethernet uplink, prioritized stream such as video and VoIP are also optimized. For the best traffic control, management side features LACP, VLAN, QinQ, IGMP snooping, QoS, etc.
Specifications
 Technology
Standard IEEE 802.3 af/at Power Over Ethernet
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3u 100Base-FX Fast Ethernet Fiber
IEEE 802.3ab 1000Base-T Gigabit Ethernet copper
IEEE 802.3z Gigabit Ethernet Fiber
IEEE 802.3x Flow Control and back-pressure
IEEE 802.1AB Link Layer Discovery Protocol(LLDP)
IEEE 802.1p Class of Service (CoS)
IEEE 802.1Q VLAN and GVRP
ITU-T G.8032 Ethernet ring protection switching(ERPS)
IEEE 802.1D-2004 Rapid Spanning Tree Protocol(RSTP)
IEEE 802.1Q-2005 Multiple Spanning Tree Protocol(MSTP)
IEEE 802.3ad Link Aggregation Control Protocol(LACP)
IEEE 802.1xPort based Network Access Protocol
IEEE 1588 Precision Time Protocol v1
 Performance
Switch Technology Store and Forward Technology with Non-Blocking Switch Fabric
Number of MAC Address 8K
Packet Buffer Memory  1M bits
Transfer performance 10Base-T: 14,880pps, 100Base-TX/FX: 148,800pps, 1000Base-TX/FX: 1,488,100pps
VLAN 256VLANs
VLAN ID 1~4094
Class of Service 4 Priority Queues per Port
Watchdog Hardware-based 10 seconds timer
 Interface
Ethernet Port 8 x 10/100Base-TX RJ45, Auto Negotiation
2 x 100/1000M RJ45/SFP Combo, Auto Negotiation/DDM
System LED 2 x Power: Green On
1 x System Status: Ready:(Green On), Fireware Updating:(Green Blinking)
1 x DI: Green On
1 x DO:
Red On
1 x Ring: Off: Ring disabled, Green On: Ring normal (Not RPL Owner),Green Blinking: Ring normal (RPL Owner), Amber On: Ring abnormal, Amber Blinking:Ring port fail
8 x Ethernet Port: Link (Green On), Activity (Green Blinking)
8 x PoE status: Amber On
2 x SFP Port: Link (Green On), Activity (Green Blinking)
2 x SFP 1000M: Speed 1000M(Amber On), Speed 100M(Off)
Ethernet Port LED Port: Link (Green On), Activity (Green Blinking),
1000M: Speed 1000M(Amber On), Speed 100M(Off)
Rsest System Reboot(2-6 Seconds)/Default Settings Reset (over 7 Seconds)
Console 1 x RS232 for System Configuration. Baud Rate: 9600.n.8.1
USB 1 x USB for Configuration/Firmware Update
Power Input, Digital Output 8-Pin Removable Terminal Block Connector
   4 Pin for Redundant Power
   4 Pin for DI,DO( Relay Alarm)
Digital Output: Dry Relay Output with 0.5A /24V DC
Digital Input with Photo-Coupler Isolation
   Digital High: DC 11V~30V
   Digital Low: DC 0V~10V
 Power Requirement
Input Voltage 48V(46~57VDC for 802.3 af,50~57 VDC for 802.3 at)
Reverse Polarity Protect Yes
Input Current 4.63A@54V
Power Consumption Max 9.18W@54VDC full traffic without PD loading, suggest to reserving 15% tolerance
 PoE
Power forwarding mode Alternative A
PoE Power Budget System: Max. 240W@75°C
PoE Standard IEEE 802.3 af/at
Management System/Port Power Budget Control, PD Alive Check, PoE Scheduling, PoE Status
 Software
Management  Interface CGI WebGUI, Command Line Interface (CLI), Telnet, SNMP
Time Management NTP,IEEE 1588 Preaision Time Protocol v1
Network Management IPv4/IPv6, SNMP v1/v2/v3/Trap, MIBs, RMON, LLDP, DHCP
server/client/Option 82, TFTP, System Log, SMTP
Traffic Management Flow Control, Port Trunk/802.3ad LACP, VLAN, Private VLAN, GVRP, GMRP, QinQ, Class of Service, Traffic Prioritize, IGMP Snooping v1/v2/v3, Rate Control, Port Mirror
Security IEEE 802.1X/RADIUS, Port MAC Secure Learning, ManagementIP,
Management VLAN, SSF, SSL
Redundancy Rapid Spanning Tree Protocol (RSTP)/Multiple Spanning Tree Protocol (MSTP)
ITU-T G.8032 v1/v2 Ethernet Ring Protection Switching (ERPS)
 Mechanical
Installation DIN Rail
Enclosure Material Steel Metal with Aluminum
Dimension 82.2(W) x 160(H) x 125(D) mm / without DIN Rail Clip
Ingress Protection IP31
Weight 1.4KG (device) / 1.8KG (full package)
Package 240(W)x200(L)x130(H)mm (package)
16pcs / carton 410(W)x 550(L)x490(H)mm (1.5KG)
 Environmental
Operating Temperature & Humidity -40°C~75°C , 0%~95% Non-Condensing
Storage Temperature -40°C~85°C
Hi-Pot Insulation AC1.5KV
MTBF >200,000 hours
Warranty 5 years
 Standard
Safety EN60950-1 Compliance
EMC EN61000-6-2/EN61000-6-4
EMI CISPR 22, FCC part 15B Class A
EMS EN61000-4-2 ESD: 8KV(Air), 6KV(Contact)
EN61000-4-3 RS: 20V/m(80M~1GHz), 10V/m(1.4G~2.1GHz), 5V/m(2.1G~2.5GHz)
EN61000-4-4 EFT: 2KV (Power, Signal Port, GND)
EN61000-4-5 Surge: Power: 2KV/1KV(Line to Ground/Line to Line), Signal Port: 2KV(Line to Ground)
EN61000-4-6 CS: 10Vrms(Power, Signal Port)
EN61000-4-8 Magnetic Field: 30A/m continues /300A for 1~3s
Railway EN50121-4


High Throughput Ethernet Switching
・10-port Ethernet, including 8-port Fast Ethernet PoE and 2-port RJ45/SFP Combo
・Combo ports provide high flexibility for selecting cable types and distances
・DDM function for high quality real-time connectivity monitoring
8K MAC address table
・Stores and Forwards with non-blocking Switch Fabric



Management Features
・Various configuration paths, including WebGUI, CLI, Telnet, SNMP V1/V2c/V3 and RMON
・IEEE 1588v1 PTP time manegemant

・LLDP topology control

・USB for easy field configuration and  firmware update

・Software utility interface for LAN devices management

・NMS system for individual component monitorin
ITU-T G.8032 v1/v2 ERPS Ring Redundancy
・An ITU standard Ring redundancy Protocol

・Provide sub-50ms protection and recovery switching for Ethernet traffic
・Interoperate with 3rd party industrial switch and still remain fast recovery time
・Interoperate with commercial switch instead of STP/RSTP
・Efficient network interconnection and topology with ERPS Chain, multiple chains

Enhanced Cyber Security for Critical Applications

・802.1X/RADIUS port-based access control

・Port MAC secure learning

・Private VLAN/IP Security/Port Security

・HTTPs/SSH/ Management IP secure access


Extreme PoE Capability

・8-port IEEE 802.3af/at compliant PoE, up to 30W/port
・Up to 240W PoE power budg
・PoE management including per-port Power Budget Control, PoE Scheduling, PD Alive Check and PoE Status


Rugged Design for IP Surveillance with High PoE Power Budget

・240W ultra high PoE budget and excellent power efficiency even in 75°C operating temperature

・Effective heat dissipation design for operating in -40°~ 75°C environments

・IEC 61000-6-2/4 Heavy Industrial Environment

・EN50121-4 railway trackside EMC

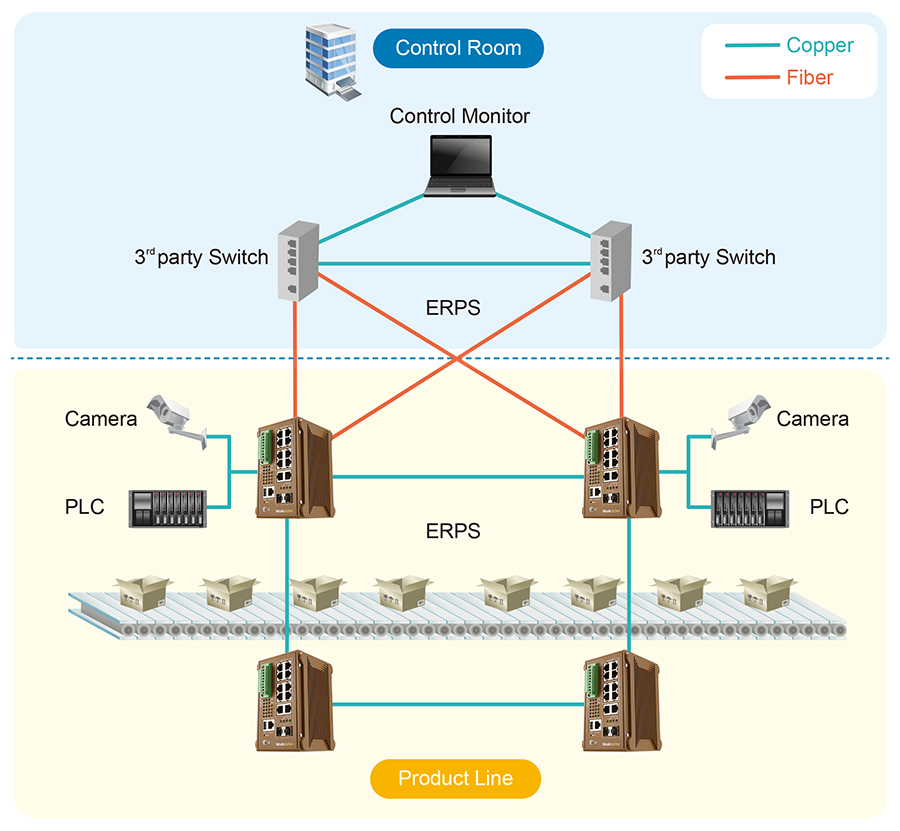

  • Excellent PoE capability, support 240W power at 75°C, providing on-site surveillance for production lines.
  • Central / Field standard Ring Redundant through ERPS / G.8032 Ring Network.
  • Fiber + Ethernet Ring (100M or Gigabit), support both short and long distance connection.
  • Compatible with 3rd party switches, direct integration with control room redundant ring.
  • NEMA TS2 + EN50121-4, outstanding EMC protection.


Ordering Information
 Model Name
DP310 Industrial 8+2G L2 Managed PoE Switch
Package List
1 x Product Unit (Without SFP transceiver)
1 x 8-pin Removable Terminal Connector
1 x Attached Din Clip
1 x Quick Installation Guide

Optional Accessory
 Item
MK-D1-2 Wall-mounting kit with 2 plates and 8 screws
CBL-RJ45F9-1.5M
Serial RS232 console cable RJ45 to DB9 Female 1.5 Meter
PSD480-48 480W/48VDC DIN-rail power supply
SFPGEM05 SFP, 1000Mbps, LC, multi, 550M, 0~70°C
SFPGEM05T SFP, 1000Mbps, LC, multi, 550M, -40~85°C
SFPGEM05D SFP, 1000Mbps, LC, multi, DDM, 550M, 0~70°C
SFPGEM05DT SFP, 1000Mbps, LC, multi, DDM, 550M, -40~85°C
SFPGEM2 SFP, 1000Mbps, LC, multi, 2KM, 0~70°C
SFPGEM2T SFP, 1000Mbps, LC, multi, 2KM, -40~85°C
SFPGEM2D SFP, 1000Mbps, LC, multi, DDM, 2KM, 0~70°C
SFPGEM2DT SFP, 1000Mbps, LC, multi, DDM, 2KM, -40~85°C
SFPGES10 SFP, 1000Mbps, LC, single, 10KM, 0~70°C
SFPGES10T SFP, 1000Mbps, LC, single, 10KM, -40~85°C
SFPGES10D SFP, 1000Mbps, LC, single, DDM, 10KM, 0~70°C
SFPGES30 SFP, 1000Mbps, LC, single, 30KM, 0~70°C
SFPGES30T SFP, 1000Mbps, LC, single, 30KM, -40~85°C
SFPGES30D SFP, 1000Mbps, LC, single, DDM, 30KM, 0~70°C
SFPXGM03D SFP+, 10Gbps, LC, multi, DDM, 300KM, 0~70°C
SFPXGS10D SFP+, 10Gbps, LC, single, DDM, 10KM, 0~70°C
SFPGES10-A SFP, 1000Mbps, LC, single, 10KM, BiDi TX-1310nm RX-1550nm, 0~70°C
SFPGES10-B SFP, 1000Mbps, LC, single, 10KM, BiDi TX-1550m RX-1310nm, 0~70°C
SFPGES10T-A SFP, 1000Mbps, LC, single, 10KM, BiDi TX-1310nm RX-1550nm, -40~85°C
SFPGES10T-B SFP, 1000Mbps, LC, single, 10KM, BiDi TX-1550m RX-1310nm, -40~85°C
SFPGES10D-A SFP, 1000Mbps, LC, single, DDM, 10KM, BiDi TX-1310nm RX-1550nm, 0~70°C
SFPGES10D-B SFP, 1000Mbps, LC, single, DDM, 10KM, BiDi TX-1550m RX-1310nm, 0~70°C
SFPGES10DT-A SFP, 1000Mbps, LC, single, DDM, 10KM, BiDi TX-1310nm RX-1550nm, -40~85°C
SFPGES10DT-B SFP, 1000Mbps, LC, single, DDM, 10KM, BiDi TX-1550m RX-1310nm, -40~85°C
