DP612

Industrial 8G PoE + 4GF Layer 3 PoE Cyber Security Switch
Supports network security features of the IEC 62443-4-2 standard that are typically used for backbone core switches
8 Gigabit 802.3at PoE ports and Layer 3 IPv6 routing capabilities
High bandwidth and high power transmission

Model : dp612

Q'ty :

The 12 Port Gigabit L3 Managed Switch DP612 supports various routing protocols such as IP/VLAN routing, RIP, OSPF, VRRP router redundancy to be fully compatible with your backbone network. It is designed with advanced cybersecurity features such as Port-Based Security- IEEE802.1 x MAB (MAC Authentication Bypass), Access Control List (ACL, MAC/IP/ARP filter), DHCP Snooping, IP Source Guard, Dynamic ARP Inspection as well as advanced redundancy features such as WoMaster ERPSv2 Plus and eRSTP. The PoE design for DP612 delivers up to 240w power budget over the 8 Giga PoE+ port.

Specifications
Technology
Standard	IEEE 802.3 10Base-T Ethernet
	IEEE 802.3u 100Base-TX Fast Ethernet
	IEEE 802.3u 100Base-FX Fast Ethernet Fiber
	IEEE 802.3ab 1000Base-T Gigabit Ethernet copper
	IEEE 802.3z Gigabit Ethernet Fiber
	IEEE 802.3x Flow Control and back-pressure
	IEEE 802.1AB Link Layer Discovery Protocol(LLDP)
	IEEE 802.1p Class of Service (CoS)
	IEEE 802.1Q VLAN and GVRP
	ITU-T G.8032 version 2 Ethernet ring protection switching(ERPSv2)
	IEEE 802.1D-2004 Rapid Spanning Tree Protocol(RSTP)
	IEEE 802.1Q-2005 Multiple Spanning Tree Protocol(MSTP)
	IEEE 802.3ad Link Aggregation Control Protocol(LACP)
	IEEE 802.1xPort based Network Access Protocol
	IEEE 1588 Precision Time Protocol v2
	IEEE 802.3af/at Power-over-Ethernet
Performance
Switch Technology	Store and Forward Technology with 24Gbps Non-Blocking Switch Fabric Internal Packet Buffer: 1.5MBytes Forwarding rate: 41.67Mpps (1,488,000pps/port)
Number of MAC Address	16K
Jumbo Frame	9216 Bytes
VLAN	256 VLANs, VLAN ID 1~4094
IGMP Groups	512
L3 IP Route	64 Hardware entries
L3 IP Multicast	64 Hardware entries
Traffic Prioritize	8 Priority Queues per Port
Interface
Ethernet Port	8 x 10/100/1000BaseT RJ45, Auto Negotiation 4 x 100/1000Base SFP, DDM
System LED	2 x Power: Green On 1 x System Status: Ready:Green On, Fireware Updating:Green Blinking 1 x DO: Red On 1 x DI: Green On 1 x Ring: Off: Ring disabled, Green On: Ring normal (Not RPL Owner),Green Blinking: Ring normal (RPL Owner), Amber On: Ring abnormal, Amber Blinking:Ring port fail
Giga Ethernet Port LED	Link (Green On), Activity (Green Blinking), Speed 1000M(Amber On), Speed 100M(Off)
Giga SFP LED	Link (Green On), Activity (Green Blinking), Speed 1000M(Amber On), Speed 100M(Off)
PoE LED	8x PoE: PoE ON (Amber On)
Rsest	System Reboot(2-6 Seconds)/Default Settings Reset (over 7 Seconds)
Console	1 x RJ45 based RS232 for System Configuration. Baud Rate: 115200.n.8.1
USB	1 x USB for Configuration/Firmware Update
Power Input, Digital Intput, Digital Output	8-Pin Removable Terminal Block Connector 4 Pin for Redundant Power 4 Pin for DI,DO( Relay Alarm) 1 x Digital Output: Dry Relay Output with 0.5A /24V DC 1 x Digital Input: DI with Photo-Coupler Isolation High: DC 11V~30V Low: DC 0V~10V
Watchdog	Hardware-based 10 seconds timer
Power Requirement
Input Voltage	48VDC (46~57VDC), 50~57VDC for IEEE802.3at
Reverse Polarity Protect	Yes
Input Current	4.67A@54V
Power Consumption	Max 18.9W@54VDC full traffic without PD loading, suggest to reserve 15% tolerance
PoE
Power forwarding mode	Alternative A
PoE Power Budget	PoE: Max. 240W@75°C Per Port: Max. 30W
PoE Mode	IEEE 802.3af/at
Management	System/Port Power Budget Control, PoE Scheduling, PD Alive Check, PoE Status
Software
Management	CGI WebGUI, Command Line Interface (CLI), IPv4/IPv6(RFC2460), Telnet, SNMP v1/v2c/v3, SNMP Trap/Informs*, RMON, DHCP server/client/Option 82, TFTP, System Log, SMTP
Traffic Management	Flow Control, Rate Control, CoS, QoS, RFC 2474 DiffServ
Filter	IGMP Snooping v1/v2/v3, IGMP Snooping Fast-Leave/Immediate-Leave, IGMP Query, GMRP, IEEE802.1Q VLAN, QinQ, GVRP, Private VLAN
Security	IEEE 802.1X/RADIUS, TLS v1.2, Access Control List (ACL, MAC/IP/ARP filter), HTTPs/SSH secure login, First login password management
Advanced Security	TACACS+, Mutli-user authentication, IEEE802.1x MAB, DHCP Snooping, IP Source Guard, Dynamic ARP inspection, DoS/DDoS, Adv. Port security, SFTP
L2/L3 Redundancy	WoMaster ERPSv2 PLUS, STP/RSTP/MSTP, eRSTP, Loop Protection, Port Trunk/801.1AX/802.3ad LACP, Virtual Router Redundancy Protocol (VRRP)
Time Management	NTP, IEEE 1588 Precision Time Protocol v2
L3 Routing	Static/Dynamic IP Routing, VLAN Routing, RIP v1/v2, OSPF v1/v2, Static Multicast Route
IIoT Industrial Protocol	Modbus TCP, EtherNet/IP, MQTT, RESTful API*
Private Cloud	ThingsMaster, ThingMaster OTA
Public Cloud	AWS Agent, Azure Agent
Utility	ViewMaster, NetMaster
MIB	ERPS MIB, MIB-II, Ethernet-like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge MIB, RMON MIB Group 1, 2, 3, 9, WoMaster Private MIB
Diagnostic	LLDP, Port Mirror, Ping, Port Statistic, Event Log
Mechanical
Installation	DIN Rail
Enclosure Material	Steel Metal with Aluminum
Dimension	85.5(W) x 150(H) x 126.5(D) mm / without DIN Rail Clip
Ingress Protection	IP30
Weight	1.38KG
Environmental
Operating Temperature & Humidity	-40°C~85°C , 0%~95% Non-Condensing
Storage Temperature	-40°C~85°C
Hi-Pot Insulation	AC1.5KV
MTBF	>500,000 hours
Warranty	5 years
Standard
Safety	IEC60950-1 Compliance
EMC	EN61000-6-2/EN61000-6-4
EMI	CISPR 22, FCC part 15B Class A
EMS	EN61000-4-2 ESD, EN61000-4-3 RS, EN61000-4-4 EFT, EN61000-4-5 Surge, EN61000-4-6 CS, EN61000-4-8 Magnetic Field
Railway	EN50121-4

Full Gigabit Switching and Ultra-high Throughput

12-port Full Gigabit Ethernet with 8-port RJ-45 and 4-port SFP
16K MAC address table
1.5MByte packet buffer memory for H.264 burst
9K bytes jumbo frame
Store-and-forward with non-blocking switch fabric

Dynamic Routing with Redundancy Protection

RIPv1&v2, OSPFv1&v2 for intra-domain routing within an autonomous system
Efficient unicast/multicast static routing
VRRP guarantees sustainable routing in a single point of failure

ITU-T G.8032 v1/v2 ERPS Ring Redundancy

An ITU standard Ring redundancy Protocol
Provide sub-50ms protection and recovery switching for Ethernet traffic
Interoperate with 3rd party industrial switch and still remain fast recovery time
Interoperate with commercial switch instead of STP/RSTP
Efficient network interconnection and topology with ERPS Chain, multiple chains

IEC62443-4-2 Level 3 / 4 Cyber Security*

L2-L7 IPv4/IPv6 Access Control List (ACL)
DHCP Snooping, IP Source Guard, Dynamic ARP Inspection
802.1Q VLAN, Private VLAN, Advanced Port Security
Multi-Level user passwords
HTTPS/SSH/SFTP, 256-bit encryption
802.1X MAB for non-802.1X compliant end devices
RADIUS/TACACS+ centralized password authentication

Extreme PoE Capability

8-port IEEE 802.3af/at compliant PoE, up to 30W/port
Up to 240W power budget
Complete PoE management including per-port Power Budget Control, PoE Scheduling and PoE Status

Rugged Design for Wayside Surveillance

EN50121-4 for railway trackside applications
Top level EMC protection and excellent heat dissipation design for operating in -40~75oC environment
IEC 61000-6-2/4 Heavy Industrial Environment

Management Features

Various configuration paths, including WebGUI, CLI, SNMP and RMON
IEEE 1588v1/v2 PTP time management
LLDP topology control
USB for easy field configuration and firmware update
Software utility interface for LAN devices management
NMS for individual component monitoring

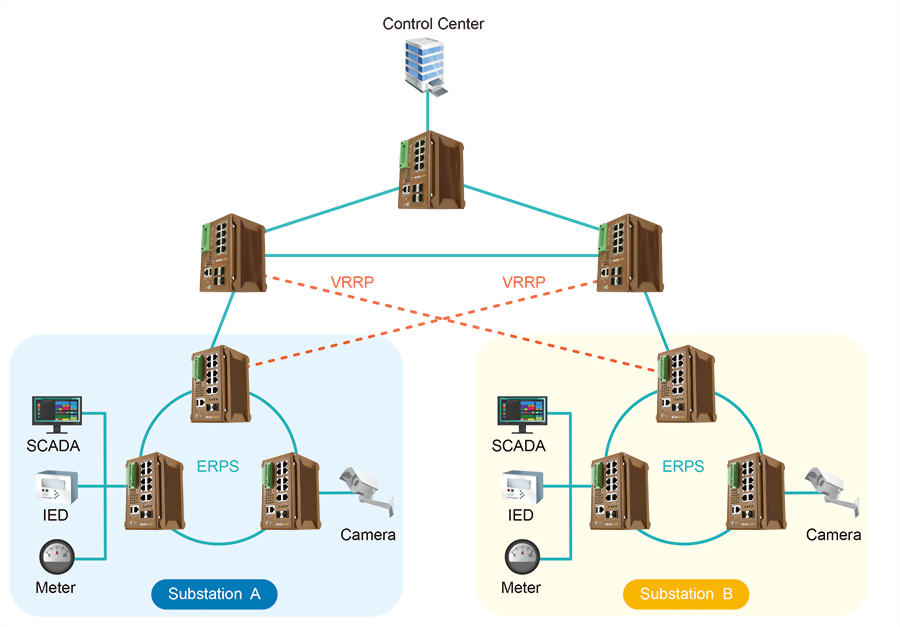

As Power Utilities locations are remotely distributed, DCS is usually implemented in power plant automation system for increasing working productivity as well as for smart energy production with eliminated influence on environment.
Vital role of data communication between various automation components is evident though it brings the problem of data protection from cyber-attacks and network redundancy as it is based on Ethernet and Internet.
DP612 features IP31 rugged enclosure, dual redundant 10~60VDC power input, Hi-pot isolation and operating temperature -40~75°C to ensure overcoming high level of electromagnetic interference on power plants.
8 Gigabit Ethernet copper ports can be connected with IP surveillance cameras whilst 4 Gigabit SFP Combo ports are used for uplink data transmission to Control Center.
VRRP function provides gateway backup, keeping network avaliable.

Ordering Information
Model Name
DP612	Industrial 12G L3 Managed PoE Switch
	Package List
	1 x Product Unit (Without SFP transceiver)
	1 x 8-pin Removable Terminal Connector
	1 x Attached Din Clip
	1 x Quick Installation Guide

Optional Accessory
Item
MK-W-1	Wall-mounting kit with 2 plates and 8 screws
PSD240-48	240W/48VDC DIN-rail power supply
PSD480-48	480W/48VDC DIN-rail power supply
SFPGEM05	SFP, 1000Mbps, LC, multi, 550M, 0~70°C
SFPGEM05T	SFP, 1000Mbps, LC, multi, 550M, -40~85°C
SFPGEM05D	SFP, 1000Mbps, LC, multi, DDM, 550M, 0~70°C
SFPGEM05DT	SFP, 1000Mbps, LC, multi, DDM, 550M, -40~85°C
SFPGEM2	SFP, 1000Mbps, LC, multi, 2KM, 0~70°C
SFPGEM2T	SFP, 1000Mbps, LC, multi, 2KM, -40~85°C
SFPGEM2D	SFP, 1000Mbps, LC, multi, DDM, 2KM, 0~70°C
SFPGEM2DT	SFP, 1000Mbps, LC, multi, DDM, 2KM, -40~85°C
SFPGES10	SFP, 1000Mbps, LC, single, 10KM, 0~70°C
SFPGES10T	SFP, 1000Mbps, LC, single, 10KM, -40~85°C
SFPGES10D	SFP, 1000Mbps, LC, single, DDM, 10KM, 0~70°C
SFPGES10DT	SFP, 1000Mbps, LC, single, DDM, 10KM, -40~85°C
SFPGES30	SFP, 1000Mbps, LC, single, 30KM, 0~70°C
SFPGES30T	SFP, 1000Mbps, LC, single, 30KM, -40~85°C
SFPGES30D	SFP, 1000Mbps, LC, single, DDM, 30KM, 0~70°C
SFPGES30DT	SFP, 1000Mbps, LC, single, DDM, 30KM, -40~85°C
