Technology
Standard	IEEE 802.3 10Base-T Ethernet
	IEEE 802.3u 100Base-TX Fast Ethernet
	IEEE 802.3ab 1000Base-T Gigabit Ethernet copper
	IEEE 802.3u 100Base-FX Fast Ethernet Fiber
	IEEE 802.3x Flow Control and back-pressure
	IEEE 802.3ab 1000Base-T Gigabit Ethernet copper
	IEEE 802.1AB Link Layer Discovery Protocol(LLDP)
	IEEE 802.1p Class of Service (CoS)
	IEEE 802.1Q VLAN
	ITU-T G.8032 Ethernet ring protection switching(ERPS)
	IEEE 802.1D-2004 Rapid Spanning Tree Protocol(RSTP)
	IEEE 1588Precision Time Protocol v1/v2
Interface
Ethernet Port	4 x 10/100/1000BaseT RJ-45, Auto-Negotiation 2 x 100/1000M SFP
System LED	2 x Power: Green On 1 x SYS: Ready: (Green On), Fireware Updating: (Green Blinking) 1 x DO: Red On 2 x Fiber:  Link (Green On), Activity (Green Blinking) 1 x Ring: Off: Ring disabled, Green On: Ring normal (Not RPL Owner),Green Blinking: Ring normal (RPL Owner) 4 x PoE Status: Green On
Ethernet Port LED	Link (Green On), Activity (Green Blinking)
Rsest	System Reset(2-6 Seconds) / Default Settings Reset (over 7 Seconds)
USB	1 x USB for Configuration/Firmware Update
Power Input, Digital Output	6-Pin Removable Terminal Block Connector    4 Pin for Redundant Power     2 Pin for DO( Relay Alarm) DO: Dry Relay Output with 0.5A /24V DC
Power Requirement
Input Voltage	48VDC(46~57VDC, 50~57VDC suggested for IEEE802.3at)
Reverse Polarity Protect	Yes
Input Current	2.5A@54V
Power Consumption	Max 8.5W@54VDC full loading, suggest to reserve 15% tolerance
Software
Management  Interface	CGI WebGUI, Command Line Interface (CLI), Telnet, SNMP
Time Management	NTP, *IEEE 1588 Precision Time Protocol v1/v2
Network Management	IPv4, SNMP v1/v2/v3/Trap, MIBs,  LLDP, DHCP server/client, TFTP, System Log, SMTP
Traffic Management	Flow Control, VLAN, Class of Service, QOS, Rate Control, Port Mirror
Security	Management IP, SSH, SSL
Redundancy	Rapid Spanning Tree Protocol (RSTP) ITU-T G.8032 v1/v2 Ethernet Ring Protection Switching (ERPS)
PoE
Power forwarding mode	Alternative A
PoE Power Budget	System: Max. 120W@75°C Per Port: Max. 30W
PoE Standard	IEEE 802.3af/at
Management	System / Port Power Budget Control, PD Alive Check, PoE Scheduling, PoE Status
Mechanical
Installation	DIN Rail
Enclosure Material	Steel Metal with Aluminum
Dimension	78.5(W) x 149(H) x 125(D) mm / without DIN Rail Clip
Ingress Protection	IP30
Weight	Around 800g
Environmental
Operating Temperature & Humidity	-40°C~70°C , 5%~95% Non-Condensing
Storage Temperature	-40°C~85°C
MTBF	>200,000 hours
Warranty	5 years
Approval
Safety	IEC60950-1 Compliance
EMC	EN61000-6-2/EN61000-6-4
EMI	CISPR 22, FCC part 15B Class A
EMS	EN61000-4-2 ESD, EN61000-4-3 RS, EN61000-4-4 EFT, EN61000-4-5 , EN61000-4-6 CS, EN61000-4-8 Magnetic Field



High Throughput Ethernet Switching
・4 Gigabit Ethernet port and 2 Giga SFP slots
・8K MAC address table
・Store-and-Forward with non-blocking Switch Fabric
Extreme PoE Capability
・Provides 4 Giga IEEE 802.3af/at compliance PoE ports
・Up to 30W per port, 120W PoE power budget
・Complete PoE management including per-port Power
   Budget Control, PoE Scheduling and PoE Status
ITU-T G.8032 v1/v2 ERPS Ring Redundancy
・An ITU standard Ring redundancy Protocol
・Provide sub-50ms protection and recovery switching for Ethernet traffic
・Interoperate with 3rd party industrial switch and still remain fast recovery time
・Interoperate with commercial switch instead of STP/RSTP
・Efficient network interconnection and topology with ERPS Chain, multiple chain
Management Features
・Various configuration paths, including WebGUI, CLI, Telnet, SNMP V1/V2c/V3/trap
・LLDP topology control
・USB for easy field side configuration and firmware update
・NetMaster- NMS system for individual node monitoring
・ViewMaster- Remote configuration software utility for distributed management
Rugged Design for IP Surveillance
・Robust design protects from mechanical deformation
・Wide operating temperature and humidity range -40~70℃,  95%humidity
・Wide operating voltage range 12~48VDC
・IEC 61000-6-2/4 Heavy Industrial Environment

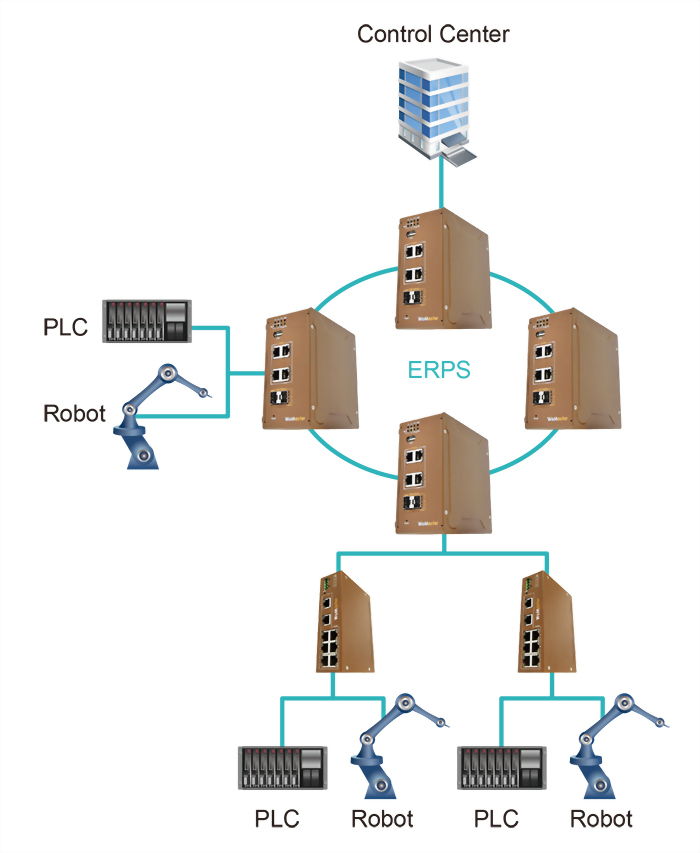

• The DS108 is equipped with eight 100M Ethernet ports for connecting robots and PLCs.
• The DP406 is equipped with 4 Gigabit Ethernet ports and 2 100M and Gigabit SFP ports to provide a long-distance connection to the control center.
• The DS406 supports the G.8032 v1 / v2 ERPS network redundancy, keeps the network available.
• Wide temperature designdesign for operating in -40~75℃ environment.

Ordering Information
Model Name
DP406	Industrial 4G+2GFManaged PoE Switch
	Package List
	1 x Product Unit
	1 x 6-pin Removable Terminal Connector
	1 x Attached Din Clip
	1 x Quick Installation Guide



Optional Accessory
Item
SFPGEM05	SFP, 1000Mbps, LC, multi, 550M, 0~70°C
SFPGEM05T	SFP, 1000Mbps, LC, multi, 550M, -40~85°C
SFPGEM05D	SFP, 1000Mbps, LC, multi, DDM, 550M, 0~70°C
SFPGEM05DT	SFP, 1000Mbps, LC, multi, DDM, 550M, -40~85°C
SFPGEM2	SFP, 1000Mbps, LC, multi, 2KM, 0~70°C
SFPGEM2T	SFP, 1000Mbps, LC, multi, 2KM, -40~85°C
SFPGEM2D	SFP, 1000Mbps, LC, multi, DDM, 2KM, 0~70°C
SFPGEM2DT	SFP, 1000Mbps, LC, multi, DDM, 2KM, -40~85°C
SFPGES10	SFP, 1000Mbps, LC, single, 10KM, 0~70°C
SFPGES10T	SFP, 1000Mbps, LC, single, 10KM, -40~85°C
SFPGES10D	SFP, 1000Mbps, LC, single, DDM, 10KM, 0~70°C
SFPGES10DT	SFP, 1000Mbps, LC, single, DDM, 10KM, -40~85°C
SFPGES30	SFP, 1000Mbps, LC, single, 30KM, 0~70°C
SFPGES30T	SFP, 1000Mbps, LC, single, 30KM, -40~85°C
SFPGES30D	SFP, 1000Mbps, LC, single, DDM, 30KM, 0~70°C
SFPGES30DT	SFP, 1000Mbps, LC, single, DDM, 30KM, -40~85°C
SFPGES40	SFP, 1000Mbps, LC, single, 40KM,  0~70°C
SFPGES40T	SFP, 1000Mbps, LC, single, 40KM, -40~85°C
SFPGES40D	SFP, 1000Mbps, LC, single, DDM, 40KM, 0~70°C
