DP210

Industrial 8+2G unmanaged PoE switch
2 Gigabit Ethernet ports and 8 100M Ethernet power supply network ports
IEEE802.3af or at Power over Ethernet PoE provides power to the device
The patented design can boost the 8~32V power supply to 48V PoE power supply, suitable for automotive low voltage power supply applications.
Supports quality of service QoS protocol, with two Gigabit upload network ports, making image monitoring and VoIP smoother

Model : dp210

Q'ty :

DP210 is an industrial 10-port unmanaged Ethernet switch that provides 8-port Fast Ethernet, IEEE 802.3af/at compliant PoE+ technology to enable devices when power sources are not available. Tailored design to boost from 8~32V to 48V powers vehicle applications that require low voltage system power input. Besides, the switch is equipped with QoS feature and additional 2-port Gigabit Ethernet uplink; prioritized stream such as video and VoIP are also optimized.

Specifications
Technology
Standard	IEEE 802.3 af/at Power Over Ethernet
	IEEE 802.3 10Base-T Ethernet
	IEEE 802.3u 100Base-TX Fast Ethernet
	IEEE 802.3ab 1000Base-T Gigabit Ethernet copper
	IEEE 802.3x Flow Control and back-pressure
	IEEE 802.1p Class of Service (CoS)
Performance
Switch Technology	Store and Forward Technology with Non-Blocking Switch Fabric
Number of MAC Address	8K
Packet Buffer Memory	1M bits
Transfer performance	10Base-T: 14,880pps, 100Base-TX: 148,800pps, 1000Base-TX: 1,488,100pps
Interface
Ethernet Port	8 x 10/100Base-TX RJ45, Auto Negotiation 2 x 100/1000Base-T RJ45, Auto Negotiation
System LED	1 x Power: Green On 8 x PoE status: Green On 1 x DO: Red On
Ethernet Port LED	Link (Green On), Activity (Green Blinking), Full duplex (Amber on), Collision (Amber Blinking)
Gigabit Ethernet Port LED	Link (Green On), Activity (Green Blinking), Speed (Amber Blinking, 10M:1, 100M:2, 1000M:3 times)
DIP Switch	Ethernet Port Fail Alarm
Power Input, Digital Output	4-Pin Removable Terminal Connector 2 Pin for Power Input 2 Pin for DO: Dry Relay Output with 0.5A /24V DC
Power Requirement
Input Voltage	12/24VDC(8~32VDC)
Reverse Polarity Protect	Yes
Input Current	6.11A@24V
Power Consumption	Max 10.56W@24VDC full traffic without PD loading, suggest reserving 15% tolerance
PoE
Power Forwarding Mode	Alternative B
PoE Power Budget	System: Max. 120W Per Port: Max. 30W
PoE Standard	IEEE 802.3af/at
Mechanical
Installation	DIN Rail
Enclosure Material	Steel Metal with Aluminum
Dimension	78.5(W) x 149(H) x 125(D) mm / without DIN Rail Clip
Ingress Protection	IP30
Weight	1.3KG (device) / 1.7KG (full package)
Package	240(W)x200(L)x130(H)mm (package) 16pcs / carton 410(W)x 550(L)x490(H)mm (1.5KG)
Environmental
Operating Temperature & Humidity	-40°C~70°C , 0%~95% Non-Condensing
Storage Temperature	-40°C~80°C
MTBF	>200,000 hours
Warranty	5 years
Standard
Safety	EN60950-1 Compliance
EMC	EN61000-6-2/EN61000-6-4
EMI	CISPR 22, FCC part 15B Class A
EMS	EN61000-4-2 ESD: 8KV(Air), 6KV(Contact) Criteria A EN61000-4-3 RS: 20V/m(80M~1GHz), 10V/m(1.4G~2.1GHz), 5V/m(2.1G~2.5GHz) EN61000-4-4 EFT: 2KV (Power, Signal Port, GND) EN61000-4-5 Surge: Power: 2KV/1KV(Line to Ground/Line to Line), Signal Port: 2KV(Line to Ground) Criteria A EN61000-4-6 CS: 10Vrms(Power, Signal Port) EN61000-4-8 Magnetic Field: 30A/m continues /300A for 1~3s
Railway	EN50121-4

High Throughput Ethernet Switching

・10-port Ethernet, including 8-port Fast Ethernet PoE and 2-port Gigabit Ethernet

・2-port Gigabit Ethernet uplink features QoS for video and VoIP data stream

・8K MAC address table

・Stores and forwards with non-blocking switch fabric

Extreme PoE Capability
・8-port IEEE 802.3af/at compliant PoE technology, up to 30W per port
・Full power budget: Max. 240W@70℃/24VDC system PoE power budget
・Low voltage 8VDC input to deliver 60W@70°C output
Rugged Design with Power Booster
・Robust design protects from mechanical deformation
・Ribbed side panels for effective heat dissipation
・8~32V wide power input range design with booster to deliver 8-port PoE at 48V for vehicle applications
・Wide operating temperature range -40°~ 70°C
・Selectable gigabit uplink: RJ45 or SFP for high flexibility of selecting cable types and distances
・CE marking
・IEC61000-6-2/IEC61000-6-4 heavy industrial EMC
・EN50121-4 railway trackside EMC
・Meet ESD/Surge Severity Level 3 Criteria A requests, no traffic loss during and after the test
・Emission: CISPR 22/ FCC part 15B class A

New generation bus is equipped with electronic systems providing a large spectrum of options easily updated by the customer on the standard control program.
All elements in the operating system are integrated into one console together with LCD display and it’s located on a dashboard.
The bus is also equipped with a card reader machine for passengers to pay the bus fee.

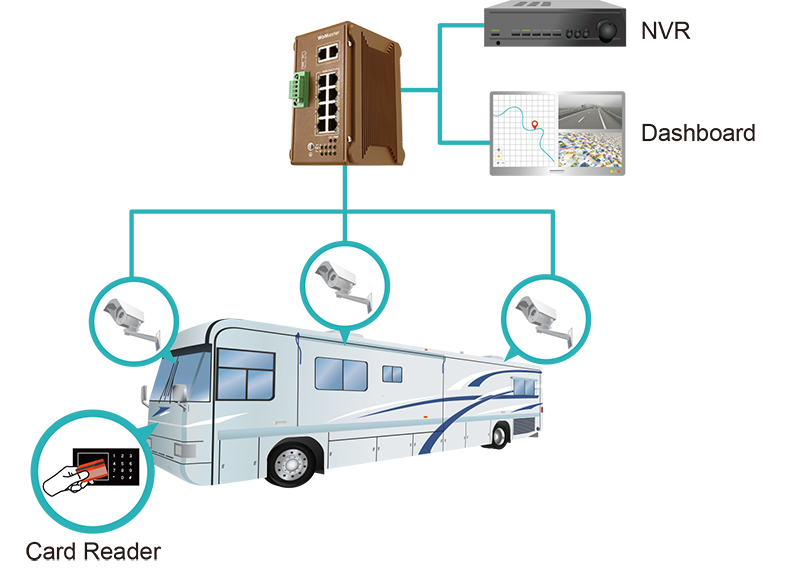

Onboard NVR (Network Video Recorder) systems record signals from video cameras which are installed on the bus. LCD display on the dashboard for the overview of the recorded video.
GPS unit is integrated into new electronic system and enables to watch vehicle position on the electronic map.

Ordering Information
Model Name
DP210	Industrial 8+2G Unmanaged PoE Switch
DP210-2F (By Request)	Industrial 8+2G Unmanaged PoE Switch, 2 SFP
	Package List
	1 x Product Unit
	1 x 4-pin Removable Terminal Connector
	1 x Attached Din Clip
	1 x Quick Installation Guide

Optional Accessory
Item
MK-D1-2	Wall-mounting kit with 2 plates and 8 screws
PSD240-12	240W/12VDC DIN-rail power supply
PSD240-24	240W/24VDC DIN-rail power supply

DP210
