WA329 Outdoor WiFi AP

Industrial 8FE+1GE port Wireless AP/Client,
Dual 802.11ac/n WLAN
Model : wa329

The Innovative and Intelligent LTE routing switch WA329 is designed to combine functionalities of WiFi router and 8-Port Ethernet switch for Smart Bus applications. It can also be used in roadside cabinets or other industrial applications for ultra-resilient high-speed Wi-Fi & multi-port Ethernet. The flexible modular design allows project customization of enable/disable WiFi. Wide Temperature and rugged design allow convenient deployment in existing infrastructure under the harsh conditions.
 Technology
Standard IEEE 802.11ac wireless local area network (WLAN), Backward support 802.11n/g/a/b Wireless LAN
IEEE 802.3 10Base-TX Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet copper
 Interface
Ethernet Port LAN: 8 x 10/100Base-TX RJ45, Auto Negotiation,
WAN: 1 x 100/1000Base-T RJ45, Auto Negotiation, Auto MDI/MDI-X
System LED 1 x DO: Red On
1 x Power: Green On
1 x SYS: Ready: Green On, Firmware Updating: Green Blinking
1 x WAN: Link: Green On, Activity: Green Blinking
1 x 1000M:WAM port speed, 1000M: Green On, Not 1000M: Off
Ethernet Port LED Link: Green On, Activity: Green Blinking
USB 1 x USB for Configuration/Firmware Update
Reset System Reset(2~6 Seconds) / Default Settings Reset (over 7 Seconds)
SMA Connector Up to 5 x RP-SMA Female, 4 for Wi-Fi/LTE, 1 x GPS
Power Input, Digital Output 4-Pin Removable Terminal Block Connector
   2 Pin for Power Input
   2 Pin for DO (Relay Alarm)
DO: Dry Relay Output with 0.5A /24V DC
Optional Expansion Board RS232/422/485, Digital Input/ Digital Output, MicroSD card for field application, by  request
 Wi-Fi Properties
Standard IEEE 802.11ac/a/b/g/n (2T2R)
802.11ac: OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM)
Data Rate 802.11ac: MCS0~9, max. 866Mbps
802.11b: 11Mbps / 802.11a/g: 54Mbps / 802.11n: MCS0~15, max.300Mbps
Frequency IISM Band, 2.412GHz~2.472GHz, 5.180MHz~5.825MHz(Band 1,4)
MIMO 2T2R, 2xAntennas
RSSI ≦20db, compliant with CE request
Output Power & Receive Sensitivity Operating Frequency: 2.412~2.472GHz
Operating Frequency: 5.180G~5.825GHz
Max. MIMO: 2T2R
 GPS Properties
GNSS GPS/GLONASS/BeiDou/Galileo
Performance Cold start: 18s, Warm start: 2.2s, Hot start: 1.8s
Sensitivity Cold start: -146dBm, Reacquisition: -157dBm, Tracking: -157dBm
Accuracy < 1.5M
GNSS Frequency GPS/Galileo: 1575.42±1.023 MHz
GLONASS: 1597.5~1605.8 MHz
BeiDou: 1561.098±2.046 MHz
Antenna Frequency range: 1561~1615MHz
Polarization: RHCP or linear
VSWR: <2 (Typ.)
Passive antenna gain: >0dBi
 Software
Management Interface CGI WebGUI, Command Line Interface (CLI), Telnet, SNMP
User Managemant Radius client, TACACS+, local database
Time Managemant SNTP
IoT AWS Agent, Azure Agent, ThingMaster Agent
Network Management IPv4/IPv6, DDNS, SNMP v1/v2c/v3/Trap, MIB II, Entity MIB, MIBs, DHCP server/client, DHCP relay*, TFTP, System Log, ARP response over 802.2 LLC SNAP, Proxy ARP, DNS (client/proxy)
Traffic Management NAT Routing, Traffic shaping, 1:1 NAT, NAPT (SNAT/DNAT)
Routing RIPv2*, Static Route
Security Firewall, DMZ, Port Forwarding, HTTPs, SSH
VPN IPsec, OpenVPN, L2TP*, GRE
WLAN Configuration WLAN Basic Settings: Radio on/off, 2.4G 11n/5G 11ac Band and Frequency selection, SSID/Multi-SSID configuration, SSID broadcast, Cellular to WLAN Auto Offload and advanced WLAN settings, 802.1X
Utility ViewMaster, *NetMaster, Ping, Traceroute
 Power Requirement
Input Voltage 12/24VDC(8~32VDC)
Reverse Polarity Protect Yes
Input Current 0.2A@24VDC
Power Consumption Max 4.8W@24VDC full traffic, suggest to reserve 15% tolerance
 Mechanical
Installation Wall mount
Enclosure Material Steel Metal with Aluminum
Dimension 200(W) x 51(H) x 126(D) mm / without Mounting Clip
Ingress Protection IP31
Weight ~ 1350g without package
 Environmental
Operating Temperature & Humidity -40°C~75°C , 5%~95% Non-Condensing
Storage Temperature -40°C~85°C
MTBF >200,000 hours
Warranty 5 years
 Approval
Safety EN60950-1 Compliance
EMC EN61000-6-2/EN61000-6-4
EMI CISPR 22, FCC part 15B Class A
Radio RED Compliance
Safety: EN 62368-1
EN 50385/EN62311 MPE assessment
EN 301 489-1/17/19/52, EN 55032/55024
EN 300 328/EN 301 893
EN 301 908-1
FCC Part 15B
Railway EN50121-4 Compliance
High Throughput Wireless Performance
• IEEE 802.11ac compliant & backward compatible with 802.11a/b/g/n
• Selectable 5G/2.4G Wi-Fi for local coverage, up to 866Mbps bandwidth
Multiple Ethernet ports
• Supports 8x Fast Ethernet ports, provides 100M wire-speed switching
• Supports 1x Gigabit Ethernet WAN port for uplink or NVR
Enhanced Cyber Security for Critical Application
• Firewall for traffic classification, port forwarding
• Support NAT, DMZ for LAN protection
• Support OpenVPN, IPsec for secure connection
• Support HTTPs/SSH secure login
Management Features
• Various configuration paths, including WebGUI, CLI and SNMP
• Support ViewMaster Utility, Remote configuration software utility and NetMaster NMS System
• LLDP topology discovery
• Diagnostic tool includes Radio LED, Ping, TFTP, SNMP Trap, E-mail Alert and System Log
• OPCuA, Cloud monitoring by request
Rugged Design for Bus, Wayside Surveillance, ITS Application
• Railway EMC: EN50121-4 compliance
• IEC61000-6-2/IEC61000-6-4 heavy industrial EMC
• ITS/Traffic Control: NEMA-TS2 compliance
• Vehicle: E-mark compliance
• Radio RED for CE Marking
• Emission: FCC part 15 B Class A
• Effective heat dissipation design for operating in -40~75°C environments

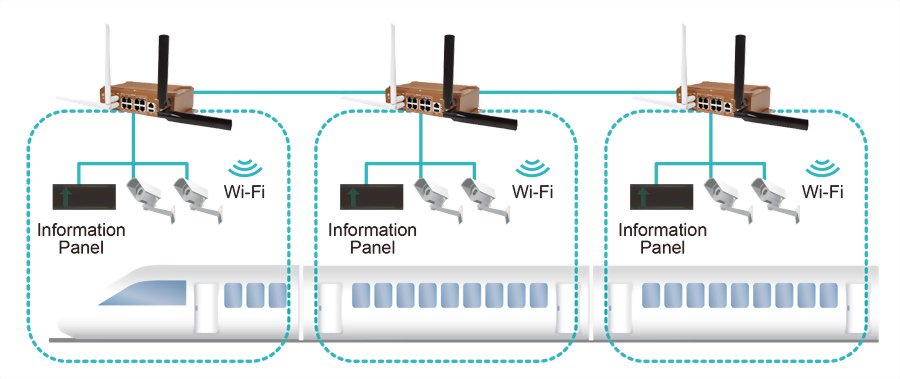

  • WA329 is installed in each cabinet for connecting cameras and information panel.
  • Cameras collect video data for surveillance, the information panel for providing information to passengers.
  • Wi-Fi coverage is supported by WA329 for passengers connecting to the internet.


Ordering Information


 Model Name
WR309 Industrial 8+1G port Routing Switch, USB
WR309P Industrial 8+1G port PoE Routing Switch, USB
WA329 Industrial 8+1G port Wireless AP/Client, USB, Dual 802.11ac/n WLAN
WA329P Industrial 8+1G port PoE Wireless AP/Client, USB, Dual 802.11ac/n WLAN
WR329-WLAN+LTE-E Industrial 8+1G port Cellular Ethernet Routing Switch, USB, 802.11ac/n WLAN, LTE-E, 2SIM, GPS, FDD B1/3/5/7/8/20, TDD B38/40/41
WR329-WLAN+LTE-CN Industrial 8+1G port Cellular Ethernet Routing Switch, USB, 802.11ac/n WLAN, LTE-CN, 2SIM, GPS,FDD B1/B3/B5/B8, TDD B38/B39/B40/B41
WR329-WLAN+LTE6-E Industrial 8+1G port Cellular Ethernet Routing Switch, USB, 802.11ac/n WLAN, LTE-E, 2SIM, GPS,FDD B1/3/5/7/8/20/28/32, TDD B38/40/41
WR329P-WLAN+LTE-E Industrial 8+1G port Cellular PoE Routing Switch, USB, 802.11ac/n WLAN, LTE-E, 2SIM, GPS, FDD B1/3/5/7/8/20,TDD B38/40/41
WR329P-WLAN+LTE-CN Industrial 8+1G port Cellular PoE Routing Switch, USB, 802.11ac/n WLAN, LTE-CN, 2SIM, GPS,FDD B1/B3/B5/B8, TDD B38/B39/B40/B41
WR329P-WLAN+LTE6-E Industrial 8+1G port Cellular PoE Routing Switch, USB, 802.11ac/n WLAN, LTE-E, 2SIM, GPS, FDD B1/3/5/7/8/20/28/32, TDD B38/40/41
  *Embedded SIM by request
*LTE-AU/LTE-U Cat.4 by request
*LTE-AP/LTE-U Cat.6 by request
*Dual LTE concurrent by request
Package List
1 x Product Unit
1 x 4-pin Removable Terminal Block Connector
1 x Quick Installation Guide
