RP428
Rackmount 28G PoE switch
28 full Gigabit ports, including 24 Gigabit Ethernet power supply ports and 4 Gigabit optical ports to improve overall throughput of video surveillance applications
Rugged, high-density PoE port design is the ideal solution for critical monitoring applications
28 full Gigabit ports, including 24 Gigabit Ethernet power supply ports and 4 Gigabit optical ports to improve overall throughput of video surveillance applications
Rugged, high-density PoE port design is the ideal solution for critical monitoring applications
Model :
rp428
The RP428 is an industrial-grade rackmount 28G switch with 24 Giga PoE+ ports, each can output 30W. The 4 Giga combo ports and 4x100M/1G fiber SFP ports can configure max. 8 fiber Giga ports for more field switches with long-distance fiber connections. Standard redundancy mechanisms are designed with enhancement such as ITU-T G.8032 Ethernet Ring Protection Switching (ERPS) and ERPSv2 Plus, RSTP, and enhanced RSTP. Many High-level cybersecurity protocols are implemented such as DHCP Snooping, IP Source Guard, Dynamic ARP Inspection. Rugged design and high EMC immunity make RP428 an ideal solution for industrial Critical Surveillance applications.
High Throughput Ethernet Switching
・ 24 Giga PoE ports, and 4 Giga fiber ports
・DDM function for high quality fiber connectivity monitoring
・16K MAC address table
・1.5Mbytes Packet Buffer
Extreme PoE Capability
・24-port IEEE 802.3af/at compliant PoE, up to 30W/port
・Up to 300W PoE power budget
・PoE management including per-port Power Budget Control,
PoE Scheduling, PD Alive Check and PoE Status
Management Features
・Various configuration including CGI WebGUI, CLI,
SNMP and RMON
・IEEE 1588v1/v2 PTP time management
・LLDP topology control
・USB for easy field configuration and firmware update
・Software utility interface for LAN devices management
Enhanced Cyber Security for Critical Applications
・802.1X/RADIUS port-based access control
・Port MAC secure learning
・Private VLAN/IP Security/Port Security
・HTTPs/SSH/ Management IP secure access
・L2-L7 Access Control List (ACL)
Rugged Design for Wayside Network Switching with Wide Power Input Range
・Excellent heat dissipation design for operating in
-40~75oC environments
・High level EMC protection exceeding traffic control and heavy industrial standards’ equirements
・IEC 61000-6-2/4 Heavy Industrial Environment
・EN50121-4 railway trackside EMC
・ 24 Giga PoE ports, and 4 Giga fiber ports
・DDM function for high quality fiber connectivity monitoring
・16K MAC address table
・1.5Mbytes Packet Buffer
Extreme PoE Capability
・24-port IEEE 802.3af/at compliant PoE, up to 30W/port
・Up to 300W PoE power budget
・PoE management including per-port Power Budget Control,
PoE Scheduling, PD Alive Check and PoE Status
Management Features
・Various configuration including CGI WebGUI, CLI,
SNMP and RMON
・IEEE 1588v1/v2 PTP time management
・LLDP topology control
・USB for easy field configuration and firmware update
・Software utility interface for LAN devices management
Enhanced Cyber Security for Critical Applications
・802.1X/RADIUS port-based access control
・Port MAC secure learning
・Private VLAN/IP Security/Port Security
・HTTPs/SSH/ Management IP secure access
・L2-L7 Access Control List (ACL)
Rugged Design for Wayside Network Switching with Wide Power Input Range
・Excellent heat dissipation design for operating in
-40~75oC environments
・High level EMC protection exceeding traffic control and heavy industrial standards’ equirements
・IEC 61000-6-2/4 Heavy Industrial Environment
・EN50121-4 railway trackside EMC
- On average, people spend 80% of their lives inside buildings – office buildings, schools, hospitals and homes. The property owners and managers are constantly seeking new ways to make buildings more efficient, sustainable, safer and more comfortable.
- Smart buildings leverage IoT connectivity, sensors and the cloud to remotely monitor and control a range of building systems from heating and air conditioning, to lighting and security systems.

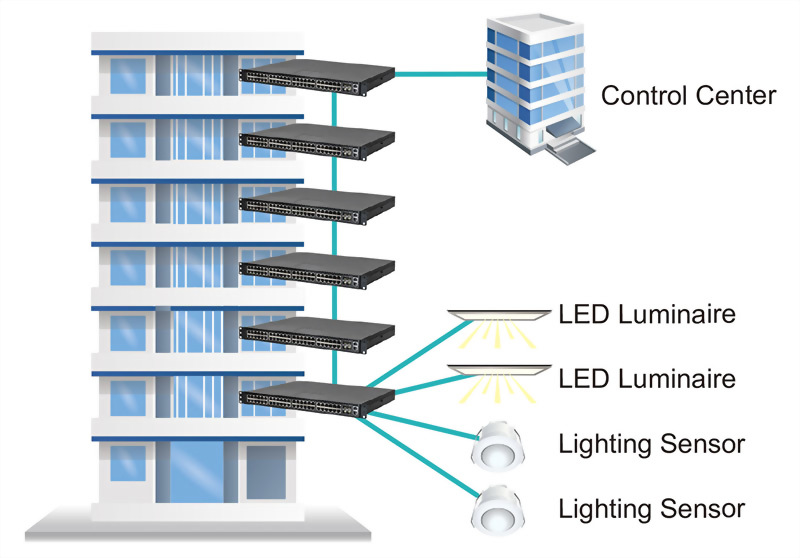

- Several sensors such as LED luminaires and lighting sensors connect to RP428 in the smart buliding, to transmit the sensors data to the control center for remote monitor.
