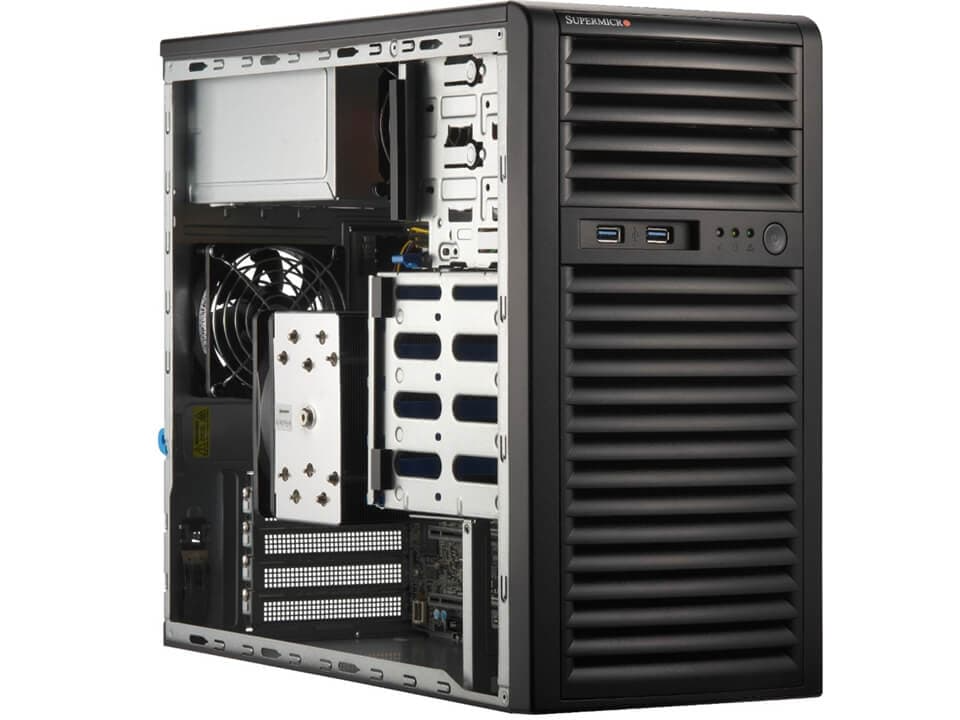

AS-3015A-I

UP mid-tower workstation for SMB and content creation

Model : AS-3015A-I

Q'ty :

AS-3015A-I is a Supermicro SuperWorkstation single-processor system. UP mid-tower workstation for SMB and content creation

It is positioned for professional workstation deployments that require reliable compute, storage, expansion and graphics options in a server-grade platform. Key configuration references include AMD EPYC™ 4004 / 4005 or AMD Ryzen™ 7000 / 9000 Series Processors, Mini-Tower, 4 default and 1x 668W.

Official reference: Supermicro official product page

AS-3015A-I Specifications

Product SKUs
	A+ Server AS -3015A-I

Processor
CPU	Single processor(s) AMD EPYC™ 4004 / 4005 or AMD Ryzen™ 7000 / 9000 seriesprocessor
Core Count	Up to 16C/32T

System Memory
Memory	Slot Count: 4 DIMM slots Max Memory (2DPC): Up to 192GB 5200MT/s ECC/non-ECC DDR5 UDIMM
Memory Voltage	1.1V

Input / Output
Video	1 VGA port 1 HDMI 2.0b port 1 DisplayPort 1.4a port
Audio	Rear Audio

Dimensions and Weight
Height	14.25" (362 mm)
Width	7.25" (184 mm)

Drive Bays / Storage
Drive Bays Configuration	Default: Total 4 bays4 front fixed 3.5" SATA drive bays Option A: Total 4 bays4 front fixed 2.5" SATA drive bays View storage options
M.2	2 M.2 PCIe 5.0 x4 NVMe slots (M-key 2280/22110)

Motherboard
	Supermicro H13SAE-MF

GPU
Max GPU Count	Up to 1 double-width GPU
Supported GPU	NVIDIA PCIe: RTX 2000 Ada, RTX 4000 Ada Generation, RTX 4070, RTX 6000 Ada Generation, RTX A2000, RTX A4000 AMD PCIe: Radeon Pro W7500, Radeon Pro W7800 View GPU options

On-Board Devices
SATA	SATA (6Gbps) ; RAID 0/1 support
NVMe	NVMe; RAID 0/1 support(Native)

Chassis
Form Factor	Mini-Tower
Model	CSE-731i-668B

Expansion Slots
PCI-Express (PCIe) Configuration	Default1 PCIe 5.0 x16 FHFL slot Option A2 PCIe 5.0 x8 FHFL slots

System Cooling
Fans	Up to 1x 90mm Fan(s) Up to 1x 80mm Fan(s)
Air Shroud	1 Air Shroud

For detailed specifications, options, and compatibility, please refer to the latest official Supermicro documentation and the actual quotes/specifications from Autech.
